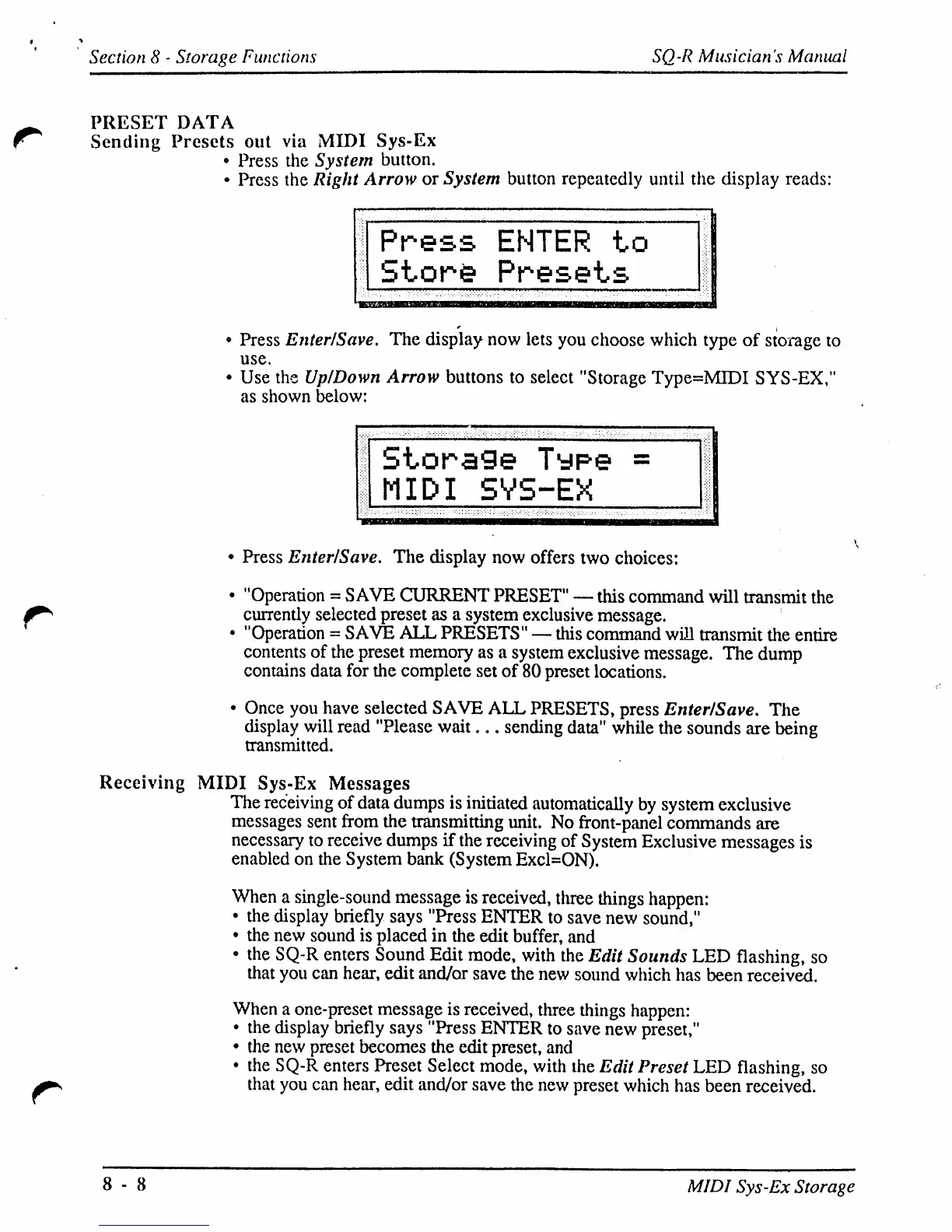

PRESET
DATA
Sending
Presets
out
via
MIDI
Sys-Ex
•
Press
the
System
button.
•
Press
the
Right
Arrow
or
System
button
repeatedly
until
the
display
reads:
Press
ENTER
to
Store
Presets
•
Press
Enter/Save.
The
display
now
lets
you
choose
which
type
of
storage
to
use.
•
Use
the
Up/Down
Arrow
buttons
to
select
"Storage
Type=MIDI
SYS-EX,"
as
shown
below:
Stora9e
Type
=
MIDI
SYS-EX
•
Press
Enter/Save.
The
display
now
offers
two
choices:
•
"Operation
=
SAVE
CURRENT
PRESET"
—
this
command
will
transmit
the
currently
selected
preset
as
a
system
exclusive
message.
•
"Operation
=
SAVE
ALL
PRESETS"
—
this
command
will
transmit
the
entire
contents
of
the
preset
memory
as
a
system
exclusive
message.
The
dump
contains
data
for
the
complete
set
of
80
preset
locations.
•
Once
you
have
selected
SAVE
ALL
PRESETS,
press
Enter/Save.
The
display
will
read
"Please
wait...
sending
data"
while
the
sounds
are
being
transmitted.
Receiving
MIDI
Sys-Ex
Messages
The
receiving
of
data
dumps
is
initiated
automatically
by
system
exclusive
messages
sent
from
the
transmitting
unit.
No
front-panel
commands
are
necessary
to
receive
dumps
if
the
receiving
of
System
Exclusive
messages
is
enabled
on
the
System
bank
(System
Excl=ON).
When
a
single-sound
message
is
received,
three
things
happen:
•
the
display
briefly
says
"Press
ENTER
to
save
new
sound,"
•
the
new
sound
is
placed
in
the
edit
buffer,
and
•
the
SQ-R
enters
Sound
Edit
mode,
with
the
Edit
Sounds
LED
flashing,
so
that
you
can
hear,
edit
and/or
save
the
new
sound
which
has
been
received.
When
a
one-preset
message
is
received,
three
things
happen:
•
the
display
briefly
says
"Press
ENTER
to
save
new
preset,"
•
the
new
preset
becomes
the
edit
preset,
and
•
the
SQ-R
enters
Preset
Select
mode,
with
the
Edit
Preset
LED
flashing,
so
that
you
can
hear,
edit
and/or
save
the
new
preset
which
has
been
received.
8
-
8
MIDI
Sys-Ex
Storage
127
129
