Installing and Connecting a Redundant Power System
Enterasys A4 Fast Ethernet Switch Hardware Installation Guide 2-15
Rack Mounting the Chassis
Refer to Figure 2-8 or Figure 2-9 and proceed as follows to install the chassis into a 19-inch
(48.3-cm) rack:
1. Position the chassis between the vertical rails and align the mounting holes in the chassis
brackets with those in the rack frame.
2. Fasten the chassis securely to the rails using the customer-supplied mounting screws (four for
the STK-RPS-150CH2, ten for the STK-RPS-150CH8).

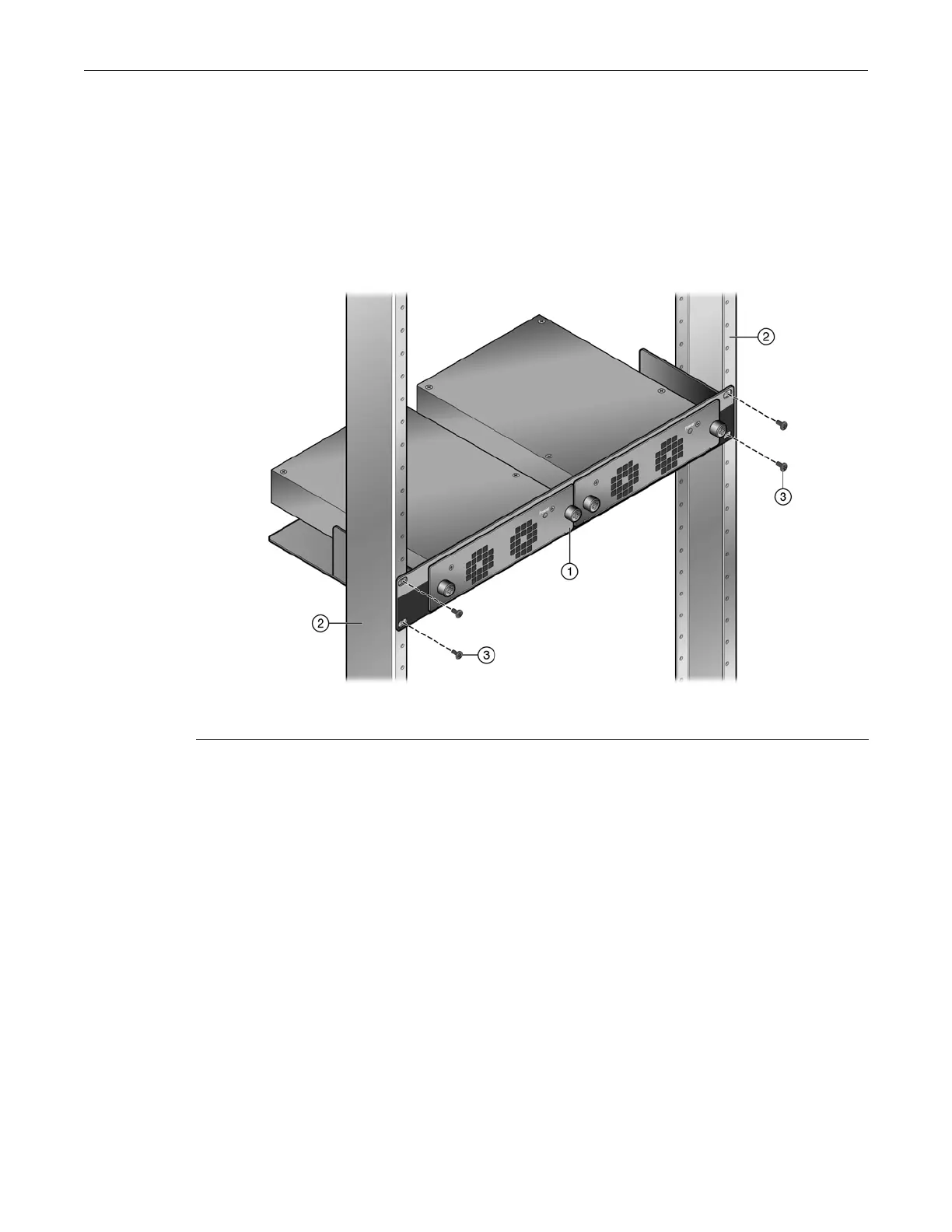

Figure 2-8 Fastening the STK-RPS-150CH2 to the Rack
1 STK-RPS-150CH2 chassis 3 Mounting screws
2 Rails of 19-inch rack
