Enterasys SecureStack B2 B2G124-48P User Manual

Console Port Pinout Assignments
SecureStack B2 Installation Guide A-7
Console Port Pinout Assignments
TheConsoleportisaDB9serialcommunicationsportforlocalaccesstoLocal
Management.RefertoFigure A‐1fortheConsoleportpinassignments.

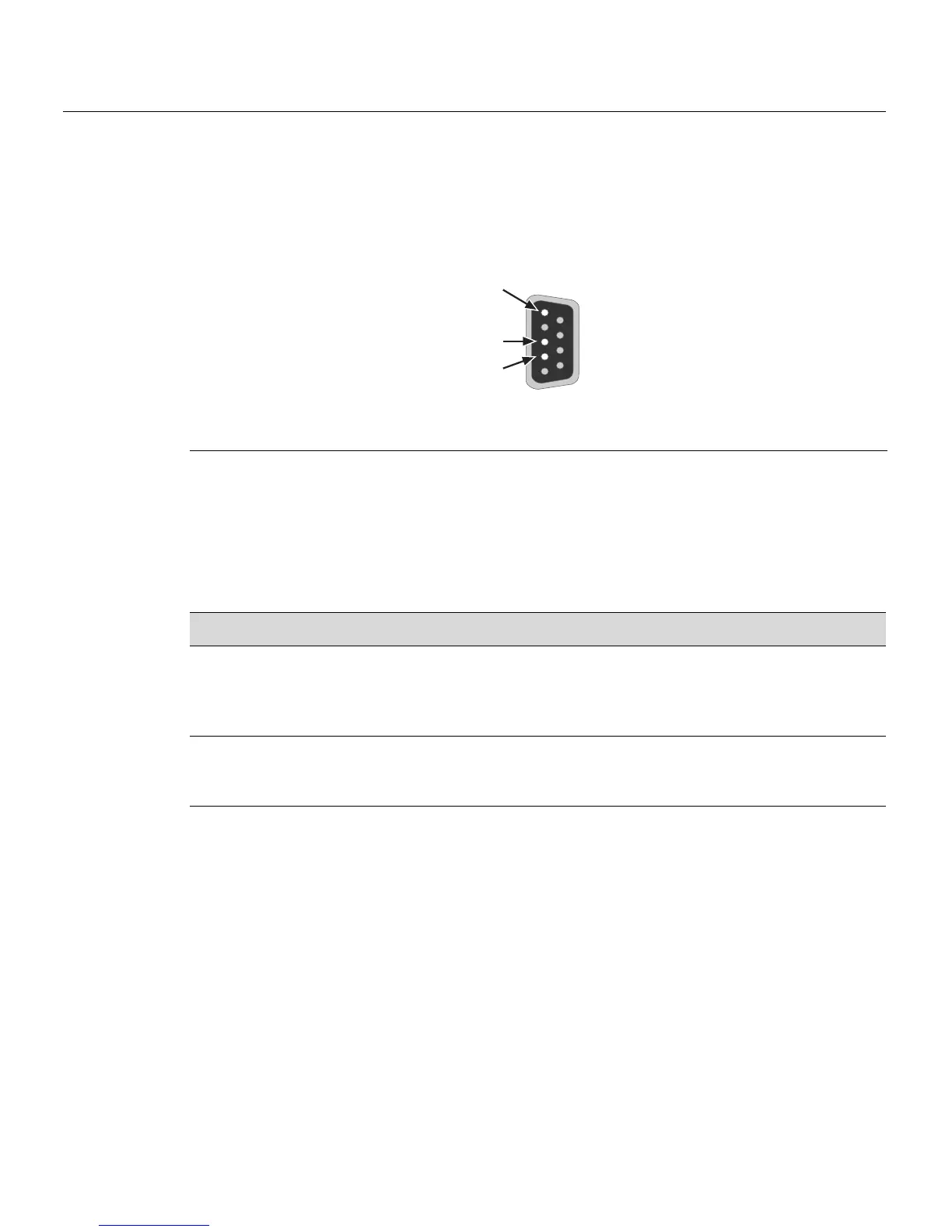

Figure A-1 Console Port Pinout Assignments
Regulatory Compliance
TheB2G124‐48PandB2H124‐48Pmeetthesafetyandelectromagneticcompatibility
(EMC)requirementslistedinTable A‐12:
1 Pin 2, Received Data (input) 3 Pin 5, Signal Ground
2 Pin 3, Transmitted Data (output) All other pins not connected.
Â
À
Á
5
1
9
6
Table A-12 Compliance Standards
Regulatory Compliance Standards
Safety UL 60950, CSA C22.2 No. 60950, 73/23/EEC, EN 60950,
and IEC 60950. The Mini-GBICs that support laser
connections also meet the EN 60825 and 21 CFR 1040.10
standards.
Electromagnetic Compatibility
(EMC)
47 CFR Parts 2 and 15, CSA C108.8, 89/336/EEC,
EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024,
AS/NZS CISPR 22, and VCCI V-3.

Enterasys SecureStack B2 B2G124-48P Specifications

General

Brand	Enterasys
Model	SecureStack B2 B2G124-48P
Category	Switch
Language	English
