Projector Parts and Functions
16

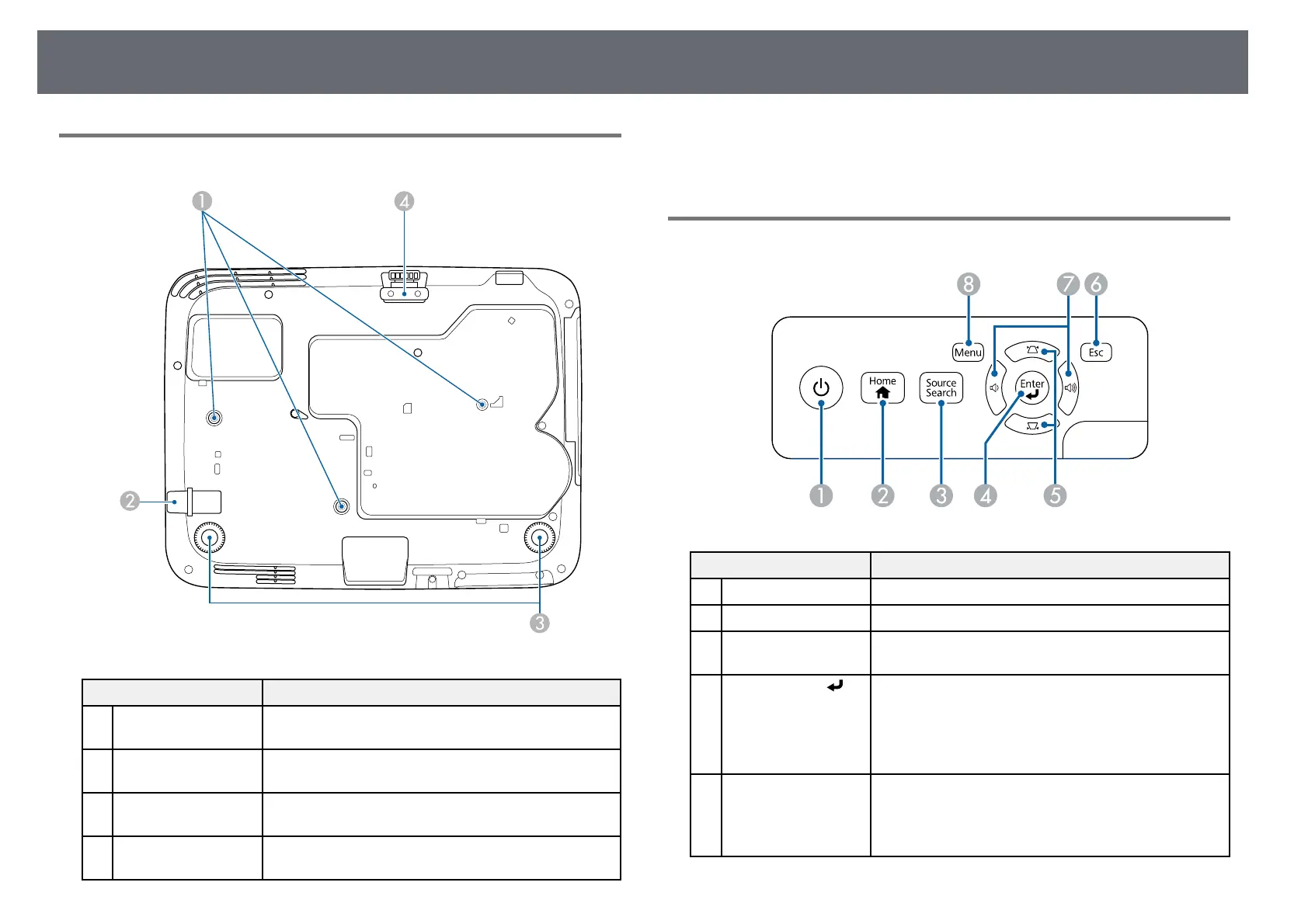

Projector Parts - Base
Name Function
A
Ceiling mount fixing
points (three points)
Attach the optional ceiling mount here when
suspending the projector from a ceiling.
B
Security cable
attachment point
Pass a commercially available wire lock through here
and lock it in place.
C
Rear feet When setup on a surface such as a desk, turn to extend
and retract to adjust the horizontal tilt.
D
Front adjustable foot When setup on a surface such as a desk, extend the foot
to adjust the position of the image.
gg Related Links
• "Installing a Security Cable" p.98
Projector Parts - Control Panel
Name Function
A
Power button Turns the projector on or off.
B
[Home] button Displays and closes the Home screen.
C
[Source Search]
button
Changes to the next input source.
D
[Enter] button [ ] Enters the current selection and moves to the next level
while displaying the projector's menu or help.
Optimizes Tracking, Sync., and Position in the
projector's Signal menu while projecting an analog
RGB signal from the Computer1 or Computer2 port.
E
Keystone adjustment
buttons and arrow
buttons
Displays the Keystone screen allowing you to correct
keystone distortion.
Selects menu items while displaying the projector's
menu or help.
To Next Page
