Epson EB-X11 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Troubleshooting CONFIDENTIAL
SEIKO EPSON 29 Revision C

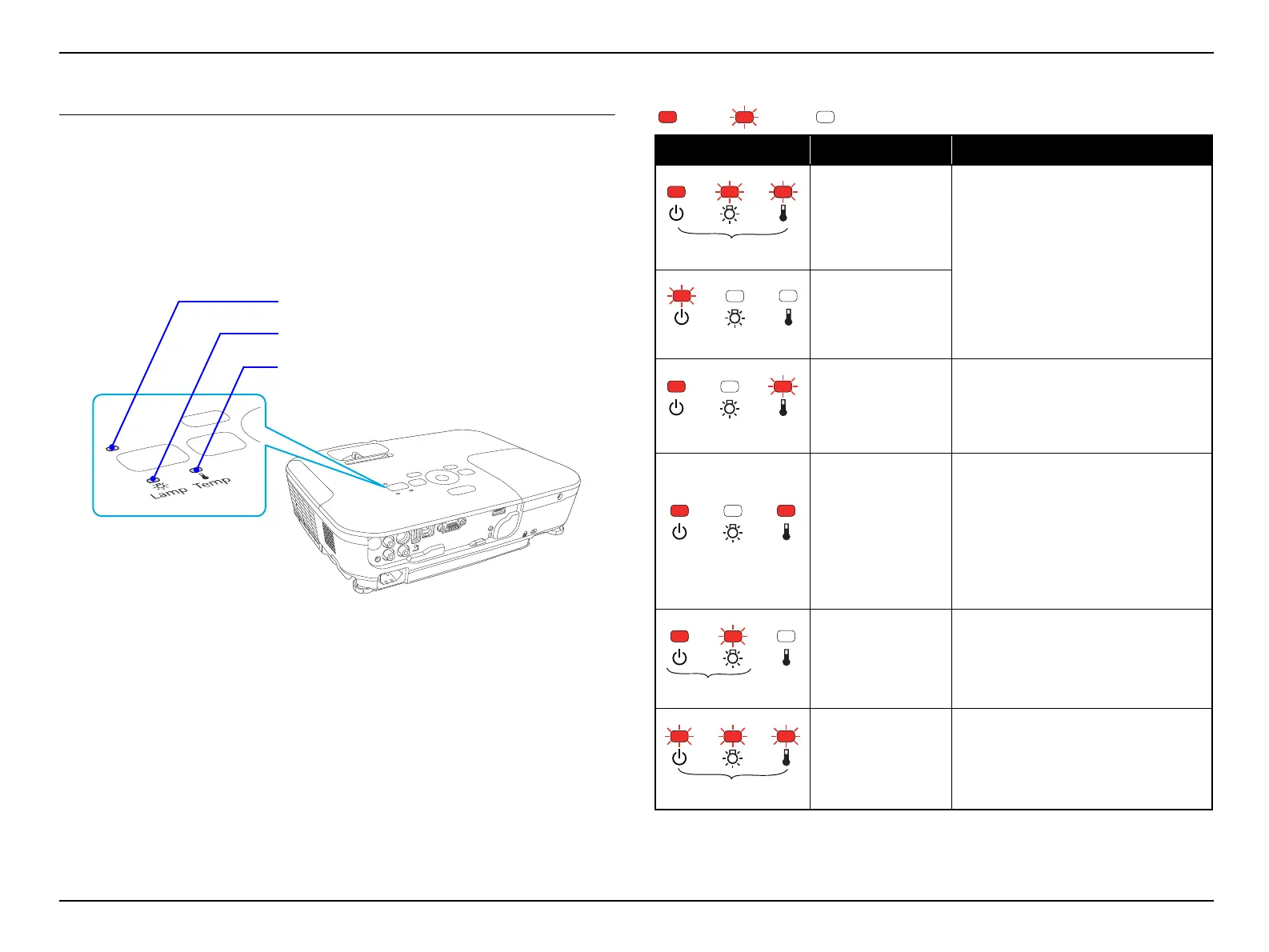

2.4 Error Indication and Problem diagnosis
2.4.1 LED Indication
The control panel on the projector has three LEDs to indicate the projector’s operation
status. When errors occur, you can identify error status with those LED indications.
Figure 2-7. LED Indicators
 Abnormal Status
ON Blink OFF
Temperature LED
Power LED
Lamp LED
LED Status Error Problem/Error Status
Internal error
Video sub-processor
error
Abnormality is detected from the elements
on MA Board.
Internal error (RAM)
Fan error
Sensor error
 Abnormality is detected from a fan.
 Abnormality is detected from a sensor.
High Temp error
(overheating)
[Phenomenon]
The lamp turns off automatically, and the
projection stops. If the projector has been
left untouched for 5 minutes, it enters the
standby mode.
[Status]
The internal temperature rises over the
specified level.
Lamp problem
Lamp failure
 Abnormality has occurred to the lamp
and the ignition/illumination processes
failed.
 Lamp Cover is not securely closed.
Power Supply
(Ballast) error
Auto Iris error
 Abnormality is detected from Ballast.
 Abnormality is detected from Auto
Iris.
Red
Red
* Fast Blink
Red
Red
Red Red
Red
Red

Epson EB-X11 Specifications

General

Matrix size	0.55 \
Projection distance	1.8 - 2.17 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2080 ANSI lumens
Aspect ratio	4:3
RS-232 ports	1
Dimensions (WxDxH)	295 x 228 x 77 mm
Connectivity technology	Wired
F-number (relative aperture)	1.58
Focus	Manual
Offset	8:1 %
Throw ratio	1.48 - 1.77:1
Optical zoom	1.2 x
Focal length range	16.9 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	2
Full HD	Yes
Supported video modes	1080i
Supported graphics resolutions	1024 x 768 (XGA), 1920 x 1080 (HD 1080)
RMS rated power	2 W
Image formats supported	BMP, GIF, JPG, PNG
Noise level	37 dB
Preset modes	Cinema, Dynamic, Presentation, sRGB
Country of origin	China
Noise level (economic mode)	29 dB
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Pallet width	800 mm
Pallet height	2178 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	358 mm
Package width	357 mm
Package height	156 mm
Package weight	3500 g
