Epson EB-X11 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 82 Revision C

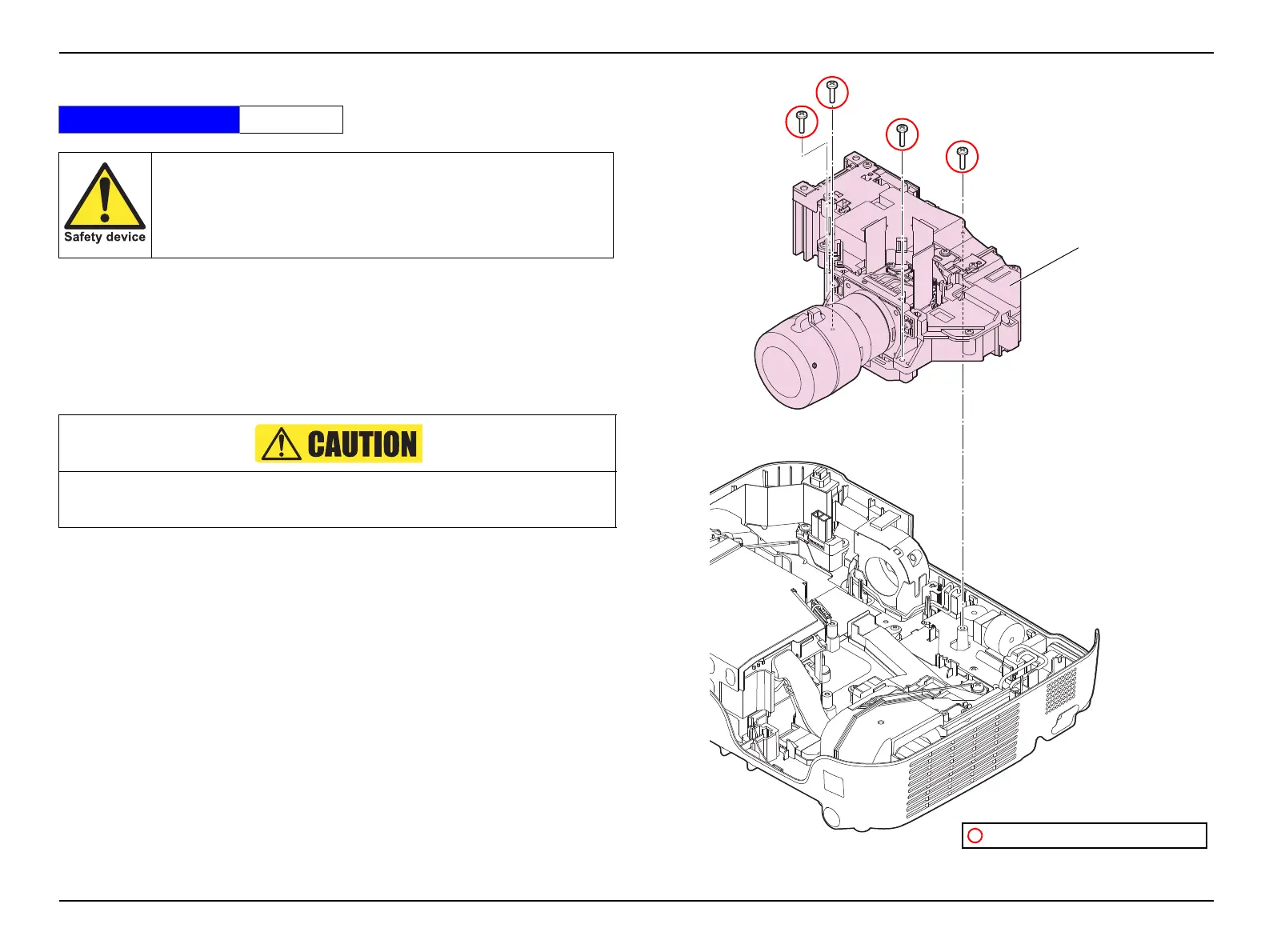

3.3.8 Optical Engine
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the four screws and remove the Optical Engine.
Figure 3-24.
Standard Operation Time 7 Min.
Optical Engine is designated as the Safety Device.When removing/
replacing the Optical Engine for repair, be sure to refer to “3.4
Safety Check after Servicing (p.103)”. According to the
instructions in it, handle the part and perform the procedure after
servicing.
When replacing the Optical Engine alone, refer to "3.5 Writing the DR Data
(p106)" and make sure to perform the necessary procedure.
C.B.P-TITE SCREW,3X12,F/ZN-3C
Optical Engine

Epson EB-X11 Specifications

General

Matrix size	0.55 \
Projection distance	1.8 - 2.17 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2080 ANSI lumens
Aspect ratio	4:3
RS-232 ports	1
Dimensions (WxDxH)	295 x 228 x 77 mm
Connectivity technology	Wired
F-number (relative aperture)	1.58
Focus	Manual
Offset	8:1 %
Throw ratio	1.48 - 1.77:1
Optical zoom	1.2 x
Focal length range	16.9 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	2
Full HD	Yes
Supported video modes	1080i
Supported graphics resolutions	1024 x 768 (XGA), 1920 x 1080 (HD 1080)
RMS rated power	2 W
Image formats supported	BMP, GIF, JPG, PNG
Noise level	37 dB
Preset modes	Cinema, Dynamic, Presentation, sRGB
Country of origin	China
Noise level (economic mode)	29 dB
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Pallet width	800 mm
Pallet height	2178 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	358 mm
Package width	357 mm
Package height	156 mm
Package weight	3500 g
