Adjusting the Image
34

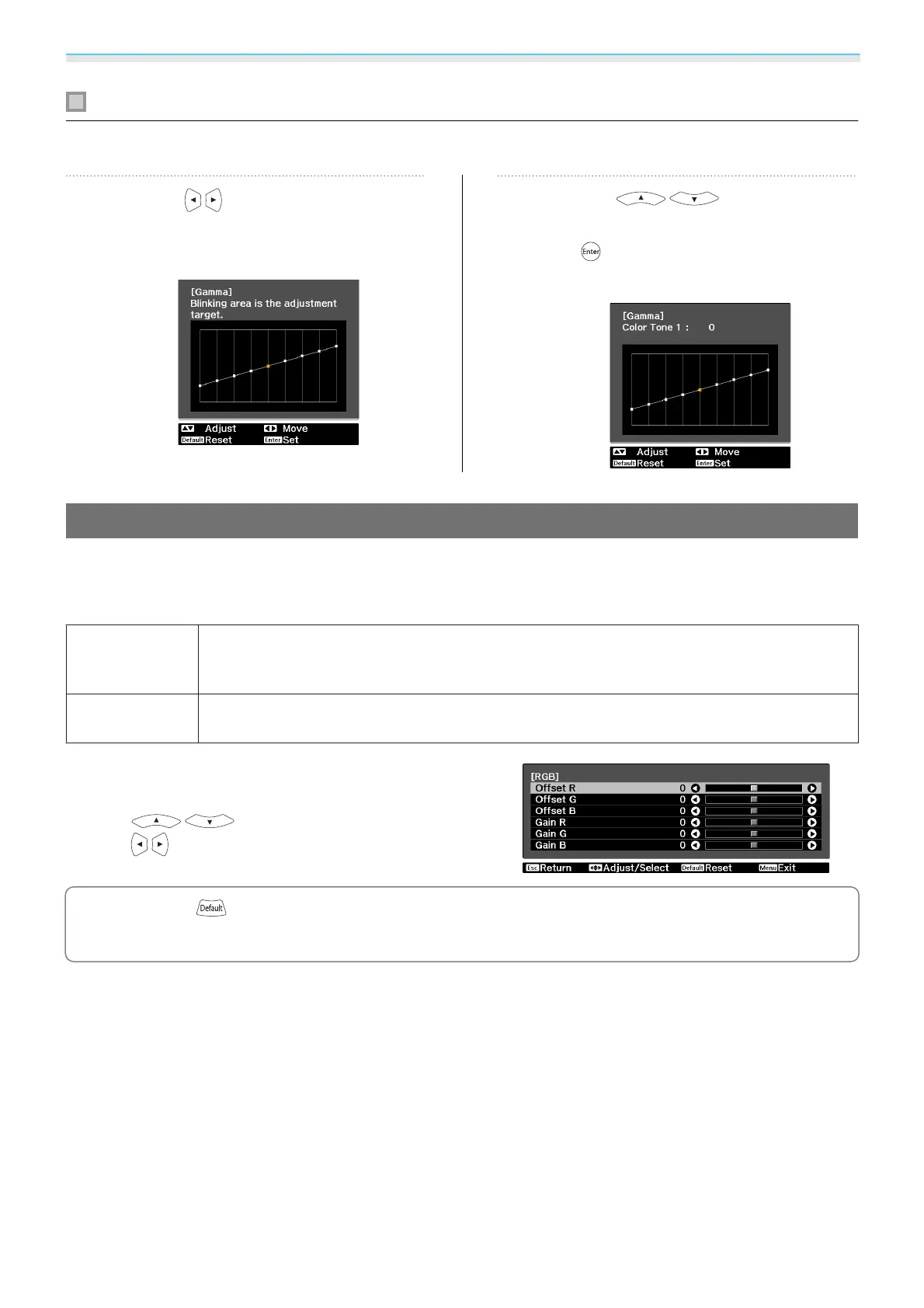

Adjust using the gamma adjustment graph
Make adjustments while viewing the gamma adjustment graph for the image being projected.
a
Use the buttons to select the
part you want to adjust from the
graph.
b
Use the buttons to
adjust the brightness, and then press
the
button to confirm the
selection.
Adjusting the RGB (Offset/Gain)
For the image's brightness, you can adjust the dark areas (Offset) and the bright areas (Gain) for R (red), G
(green), and B (blue). The image becomes brighter when moved to the right (positive) and darker when moved
to the left (negative).
Offset
When the image is made brighter, shading for the darker sections is more vividly expressed.
When the image is made darker, the image appears more full-bodied but shading for the
darker sections is harder to distinguish.
Gain
When the image is made brighter, the bright sections become whiter and shading is lost.
When the image is made darker, shading for the bright sections is more vividly expressed.
The menu is displayed in the following order.
Image - Advanced - RGB
Use the
buttons to select the item, and then
use the
buttons to make the adjustments.
c
Press the button to return the adjustments to their default values.

Epson EH-TW6100W Specifications

General

Aspect ratio	16:9
RS-232 ports	1
Matrix size	0.61 \
White light output	2300 ANSI lumens
Projection distance	- m
Projection technology	3LCD
Screen size compatibility	30 - 300 \
Projection distance (tele)	1.4 - 14.5 m
Projection distance (wide)	0.9 - 8.9 m
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-30 - 30 °
Full HD	Yes
Color modes (2D)	Dynamic, Cinema
Supported 3D formats	Side by side, Top and bottom, Frame packing
Analog signal format system	-
Focus	Manual
Focal length range	18 - 29 mm
Aperture range (F-F)	1.51 - 1.99
Lamp type	E-TORL
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Noise level	32 dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	24 dB
RMS rated power	20 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.35 W
Power consumption (typical)	358 W
Power consumption (economy mode)	274 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Cables included	AC, HDMI
Pallet width	800 mm
Pallet height	2010 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)

Weight and Dimensions

Depth	365 mm
Width	420 mm
Height	137 mm
Weight	6000 g
Package depth	495 mm
Package width	435 mm
Package height	310 mm
Package weight	9720 g
