Epson EH-TW6100W User Manual

Introduction
8

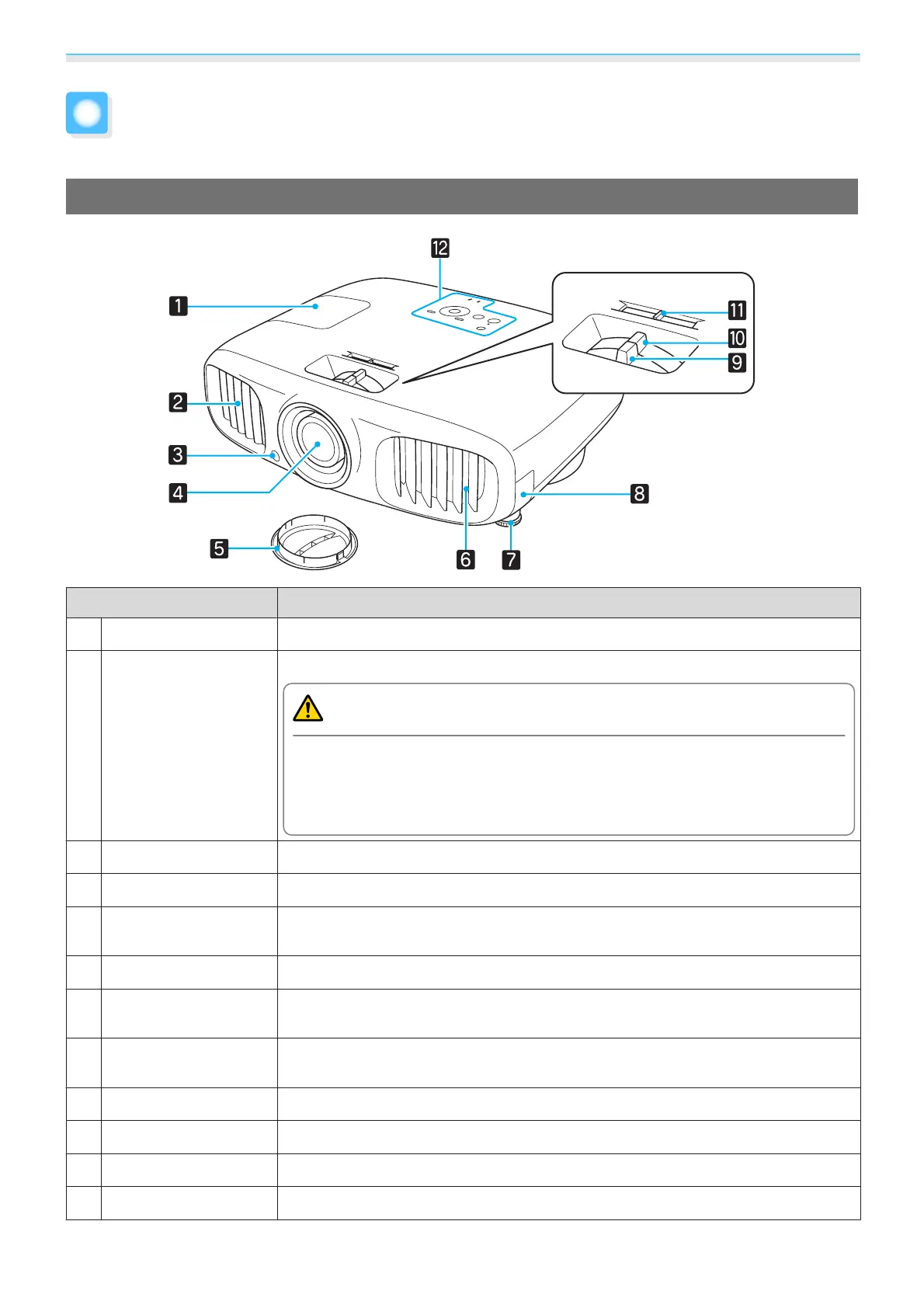

Part Names and Functions
Front/Top
Name Function
a
Lamp cover
Open when replacing the projector's lamp. s p.92
b
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands near the air exhaust vent,
and do not place objects that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could cause burns, warping, or
accidents to occur.
c
Remote receiver
Receives signals from the remote control. s p.21
d
Projector's lens
Images are projected from here.
e
Lens cover
Install when not using the projector to protect the lens from being scratched or
soiled.
s p.22
f
Air intake vent
Intake vent for air used to cool the projector internally.
g
Front adjustable foot
When setup on a surface such as a table, extend the foot to adjust the horizontal
tilt.
s p.26
h
Air filter cover
When cleaning or replacing the air filter, open this cover and remove the air filter.
s p.88, p.91
i
Focus ring
Adjusts the image focus. s p.25
j
Zoom ring
Adjusts the image size. s p.25
k
H-Keystone slider
Performs horizontal keystone correction. s p.26
l
Control panel
Control panel on the projector. s p.9

Epson EH-TW6100W Specifications

General

Aspect ratio	16:9
RS-232 ports	1
Matrix size	0.61 \
White light output	2300 ANSI lumens
Projection distance	- m
Projection technology	3LCD
Screen size compatibility	30 - 300 \
Projection distance (tele)	1.4 - 14.5 m
Projection distance (wide)	0.9 - 8.9 m
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-30 - 30 °
Full HD	Yes
Color modes (2D)	Dynamic, Cinema
Supported 3D formats	Side by side, Top and bottom, Frame packing
Analog signal format system	-
Focus	Manual
Focal length range	18 - 29 mm
Aperture range (F-F)	1.51 - 1.99
Lamp type	E-TORL
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Noise level	32 dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	24 dB
RMS rated power	20 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.35 W
Power consumption (typical)	358 W
Power consumption (economy mode)	274 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Cables included	AC, HDMI
Pallet width	800 mm
Pallet height	2010 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	12 pc(s)
Quantity per pallet (UK)	24 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)

Weight and Dimensions

Depth	365 mm
Width	420 mm
Height	137 mm
Weight	6000 g
Package depth	495 mm
Package width	435 mm
Package height	310 mm
Package weight	9720 g
