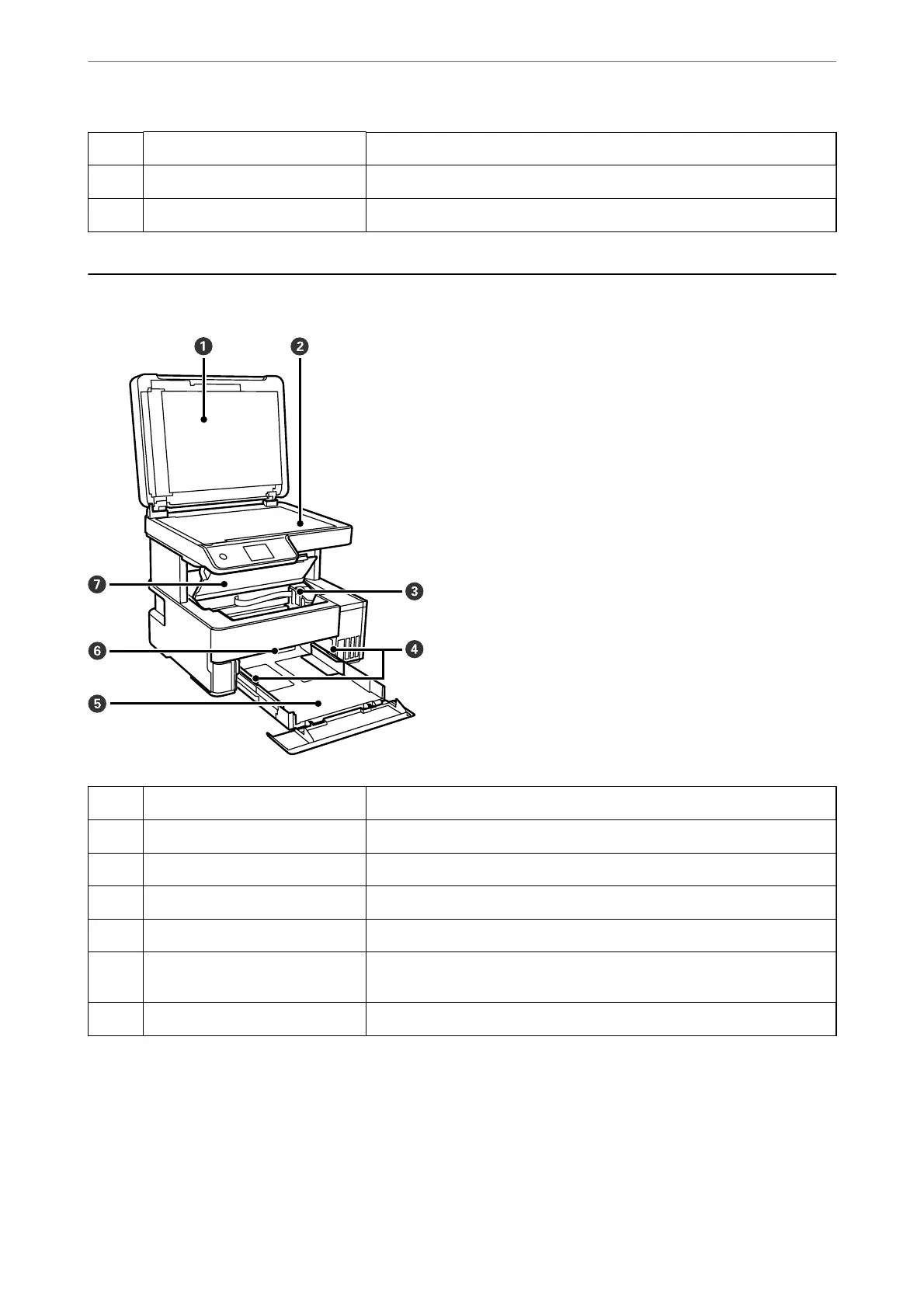

Epson L6490 Series User Manual

E
Paper cassette cover Open to load paper in the paper cassette.
F
Front cover Open when removing jammed paper.
G
Output tray Holds the ejected paper.
Inside
A
Document cover Blocks external light while scanning.
B
Scanner glass Place the originals.
C
Print head Ink is ejected from the print head nozzles underneath.
D
Edge guide Feeds the paper straight into the printer. Slide to the edges of the paper.
E
Paper cassette Loads paper.
F
Output switch lever Raise to output paper to the output tray. Lower to output paper facing up to
the front of the printer.
G
Printer cover Open when removing jammed paper.
Part Names and Functions > Inside
19
