Printable area
This section describes the printable areas for the printer.
If the print range settings in application software are
larger than the following printer printable areas,
sections beyond the specified margins are not printed.
Roll Paper

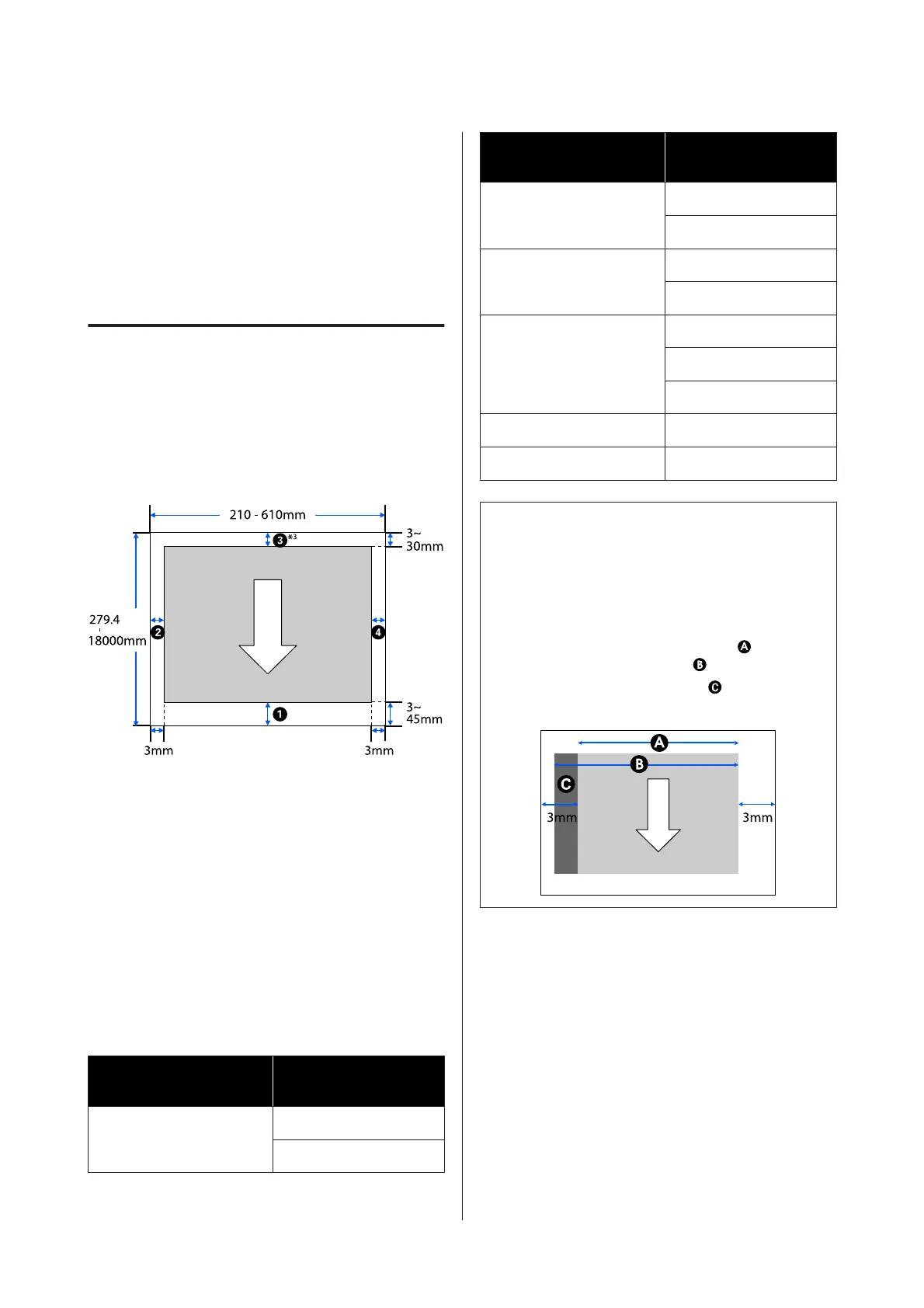

The gray area in the illustration below shows the
printable area.
The arrow in the illustration indicates the direction that
the paper is ejected.
*
In the printer driver Layout screen, selecting Print
Banner sets the top and bottom margins of the
paper to 0 mm.
Margins for roll paper depend on the settings values for
Top/Bottom Margins in the menu, as shown in the
table below.
Settings for Top/Bottom Margins U “Roll Paper
menu” on page 85
The default setting is Standard.
Settings of Top/Bottom
Margins
Margin Values
Standard A, C = 30 mm
B,D = 3 mm
Settings of Top/Bottom
Margins
Margin Values
Top 3 mm/Bottom 3 mm A,C = 3 mm
B,D = 3 mm
Top 15 mm/Bottom 15 mm A,C = 15 mm
B,D = 3 mm
Top 45 mm/Bottom 15 mm A = 45 mm
C = 15 mm
B,D = 3 mm
3 mm A,B,C,D = 3 mm
5 mm A,B,C,D = 5 mm
c
Important:
❏ Printing is distorted when the trailing edge of
the roll paper comes off the core. Make sure the
trailing edge does not come inside the printing
area.
❏ If the print range settings width
is smaller
than the print data width
, then the sections
beyond the printable width
will not be
printed.
SC-F500 Series User's Guide
Appendix
132
