ESAB Caddy Tig 2200i AC/DC Service Manual

S0740 800 179/E071123/P64
-- 5 9 --
ct33i
OPERATION

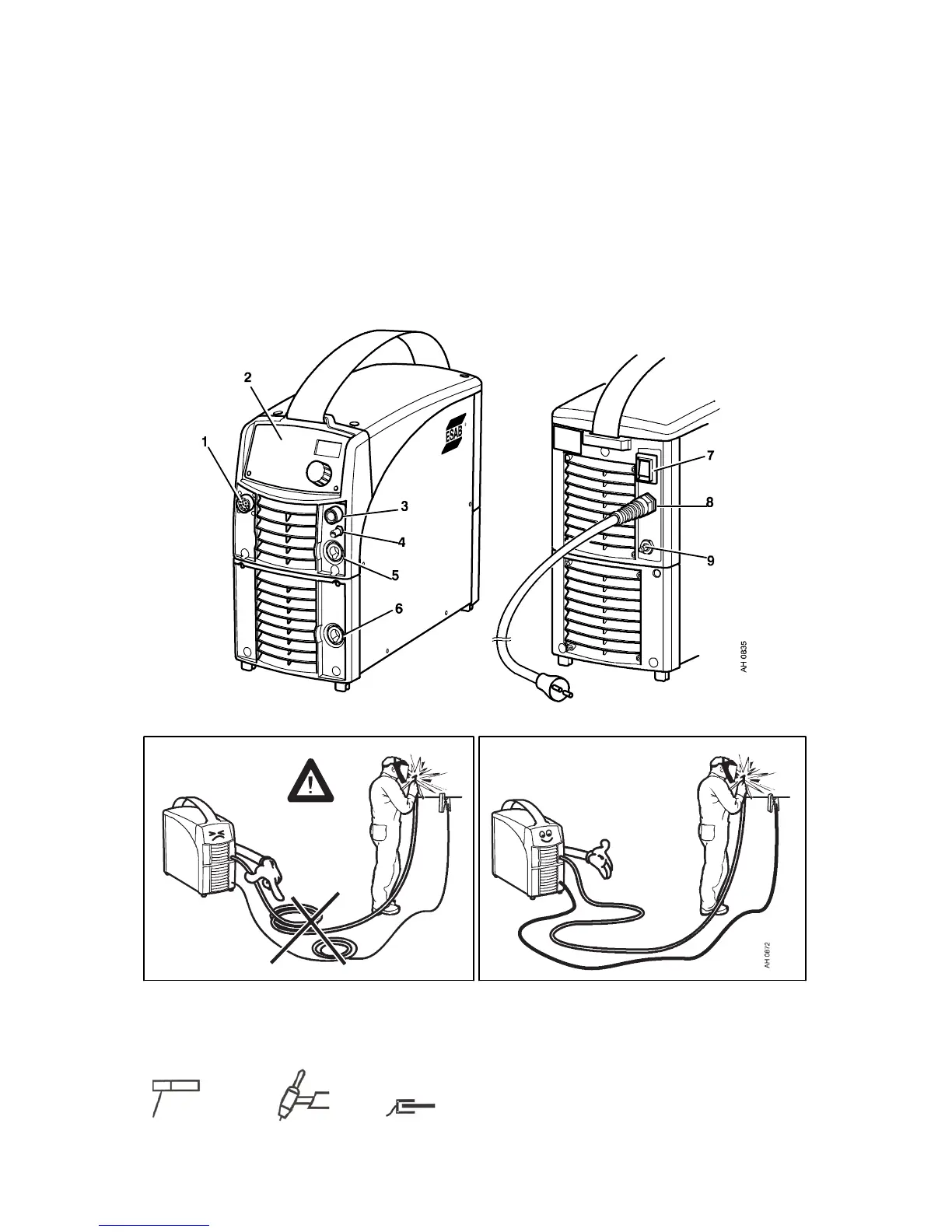

Connections and control devices
1 Connection for remote control unit 6 Connection for return cable
2 Control panel (see separate instruction
manual)
7 Mains switch
3 Connection for torch switch 8 Mains cable
4 Connection for gas to the torch 9 Connection for shielding gas
5 Connection for welding cable or torch
Key to symbols
MMA TIG Return clamp

ESAB Caddy Tig 2200i AC/DC Specifications

General

AC Frequency	20 - 250 Hz
Dimensions	418 x 188 x 345 mm
Weight	15 kg
Protection Class	IP23
Frequency	50/60 Hz
Duty Cycle (TIG DC, 220A)	25%
Duty Cycle (TIG AC, 220A)	25%
Input Voltage	230 V
Current Range (TIG AC/DC)	220 A
