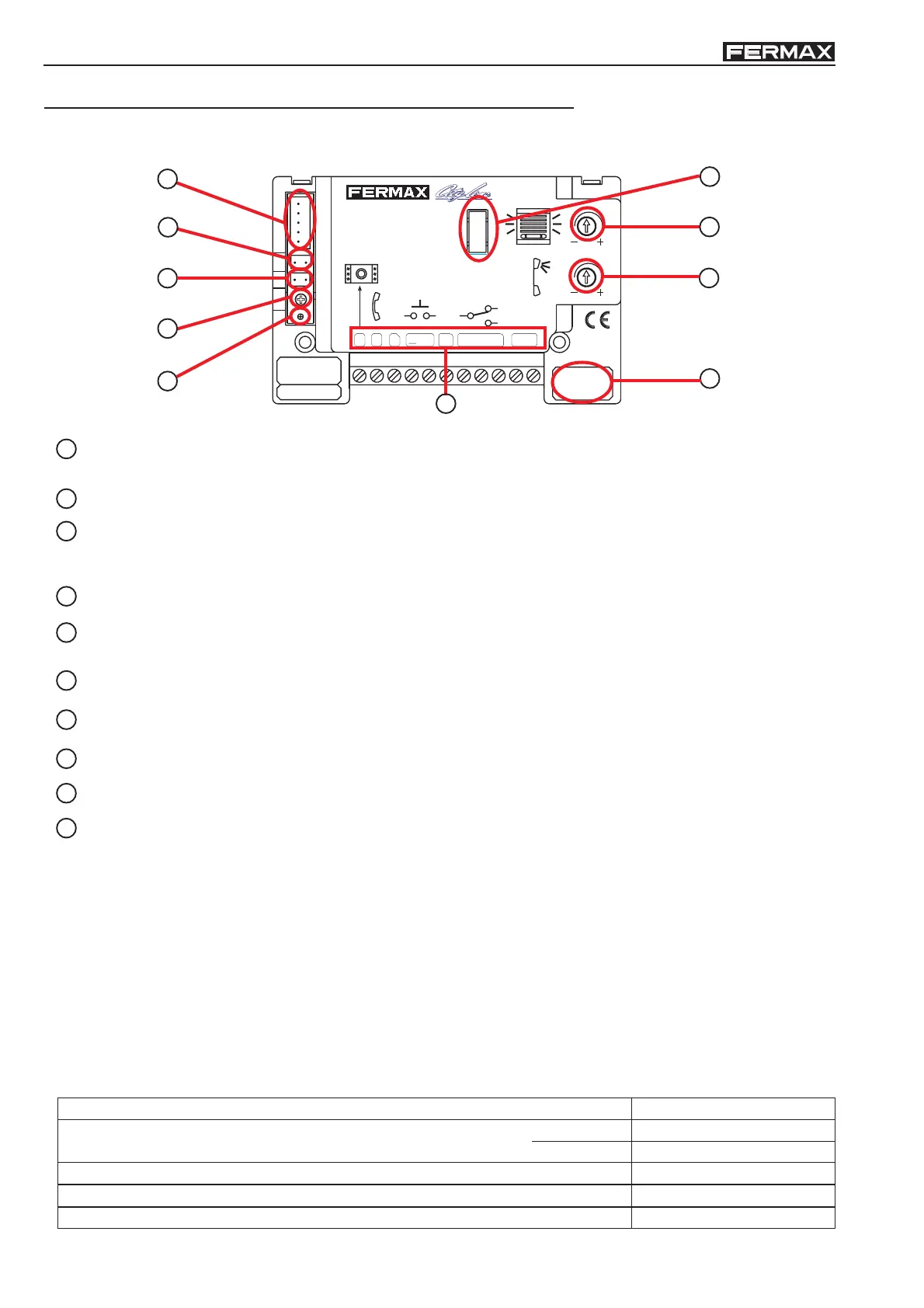

Ct: Camera Activation (10 Vdc).
L: Audio + Data Bus.
S: Activation signal which gives a negative result when the panel is activated after a call or when auto-started.
B, B: Button connection to open door from inside the entrance hall.
+12: Auxiliary voltage output (12Vdc, 0.4A max).
C, NO, NC: Potential-free door lock-release relay (4A). Activates the alternating lock release (if the system is
equipped with this source), magnetic locks, signals to other devices, etc.
+, -: 18 Vdc power supply.
CN2: Button and card holder illumination connection.
2
Connection for call extension module, keypad, display or up to three buttons (the same amplifier for buildings
and kits with up to 3 lines).
1
JP2 : Main/Secondary Panel Selection Switch:
Main Panel: leave switch in place.
Secondary Panel: remove switch.
3
P4: Potentiometer for volume adjustment as part of call monitoring and voice synthesis.
4
7 Potentiometer for volume adjustments in the residence - entry panel
direction.
6
Voice Synthesiser: ‘Door Open’ language selection.
8 Potentiometer for volume adjustments in the entry panel - residence
direction.
9
Amplifier Version.
Test Led (Diagnostic): If there is a short circuit between “L” and “+”, short flashes will be emitted when a
call is made from the panel.
5
Connection Terminals:10
VERSION :
18
+-
18 Vdc
POWER SUPPLY
ALIMENTACION
COD.XXXXX
Vdc
PACK EXTENSION
Ct
L S
BB
-
+
NOCNC
+12
IDIOMA
LANGUAGE
TEST
JP2
CN2
P4
ADS VERSTÄRKER
AMPLIFICATEUR ADS
ADS AMPLIFIER
AMPLIFICADOR ADS
5.0
A
D
C
B
PLACA
TELEFONO VOLUMEN
1
6
5
4
3
7
9
10
2
8
Technical Features
Consumption
Operating Temperature
Maximum audio power in the residence -entry panel direction
18 Vdc
on standby
active audio
-10 , +60 °C
40 mA
250 mA
Maximum audio power in the entry panel - residence direction
Power Supply
1 W
0.15 W
VDS Amplifier - Cityline, Marine and Bruto Panels
The VDS amplifier manages all the VDS system functions: calls, two-way communication, door opening, programming....
