SERIE 2 SERIE 4 SERIE 5 SERIE 6 SERIE 7

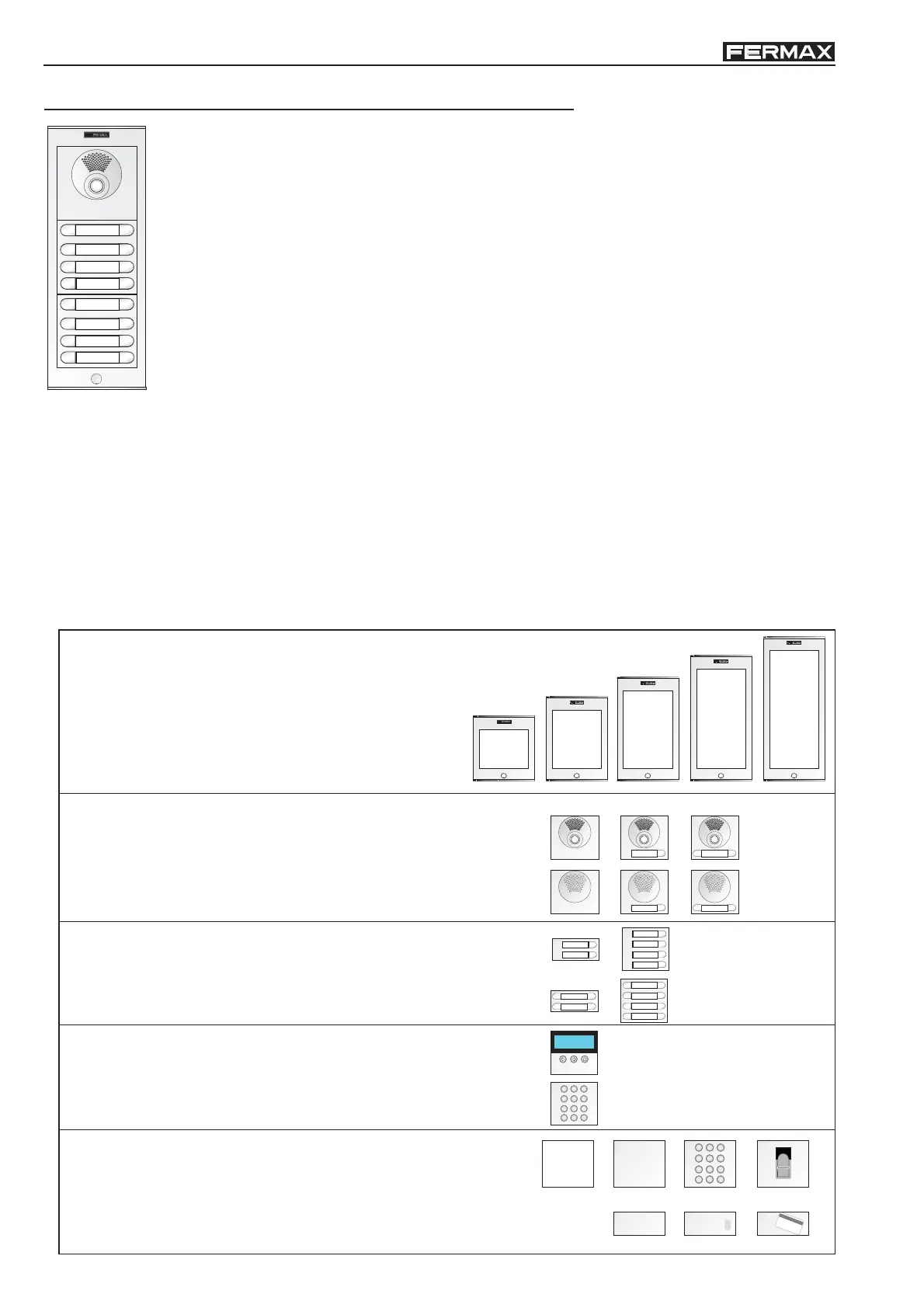

Modular CITY VDS panels
The VDS modular panels comprise the FERMAX range of continuous profile and modular composition
entry panels. The modular panels are characterised by their:
- VDS Amplifier Module: a module which manages all VDS system functions: calls, two-way
communication, door opening, programming....
It is available in audio and video (b/w and colour) versions.
The amplifier module can have 1 or 2 buttons.
- Button Modules: With these modules, no call extension module is necessary. The button modules
generate the call code. The button modules are available with 2, 4 and 8 buttons.
Calls to residences are made by pressing the corresponding call button assigned to the residence.
- Display Module and Direct Keypad: Allows the construction of Direct and Digital VDS modular
panels.
- Additional function modules: a range of different modules (optional) exist, which can be installed
in the outdoor entry panel to provide the system with additional functions to increase the system
resources: keypad modules, proximity card reader, bluetooth for access control, etc.
- Programming Lock-Release Time between 1 and 99 seconds (see the «Advanced Programming
- Lock-Release Times» section).
The panel’s assembly is very easy. Simply select the module combination, fit them in the frames and connect them
together using the connection cables:
Button Modules
With these modules, no call extension module is necessary,
which significantly reduces the cost of the system. An
interconnection cable to the next module is provided.
Additional function modules
Modular Panels
Required for the insertion of modules: amplifier, buttons,
keypad, etc.
The panel models are the same as CityLine panel series
2,4, 5, 6 and 7.
* BUS2 Modular Panel Type
Amplifier Modules
Audio or video (b/w and colour), with or without integrated
buttons.
Includes a connection cable to the first button module.
Audio
Video
Single
Double
Display module and direct keypad
These modules enable the construction of VDS Digital and
Direct panels, which can also be combined with the 1-2 button
amplifier modules and button modules.
Display
Direct
1- Cardholder
2- Blind Modules
3- Memokey Keypad (*)
4- Fingerprint Reader (*)
5- Bluetooth Reader (*)
6- Proximity Reader (*)
(*) Autonomous Access Control
652
432
1
Another cutting-edge characteristic of the new City panels is the possibility of combining button, keypad and display
modules in one panel.
987
654
321
A
B
0
