RESIDENTIAL TERMINALS
The VDS system has a wide range of residential terminals both for door entry systems (telephones) and video entry
systems (monitors).
The residential terminals enable the user to establish audio/video communication with the outdoor entry panel, open the
door, call the guard unit, etc.
Following installation, the VDS residential terminals require simple programming to assign the terminal with a code/call
button to be entered or pressed from the outdoor entry panel in order to call the residence.

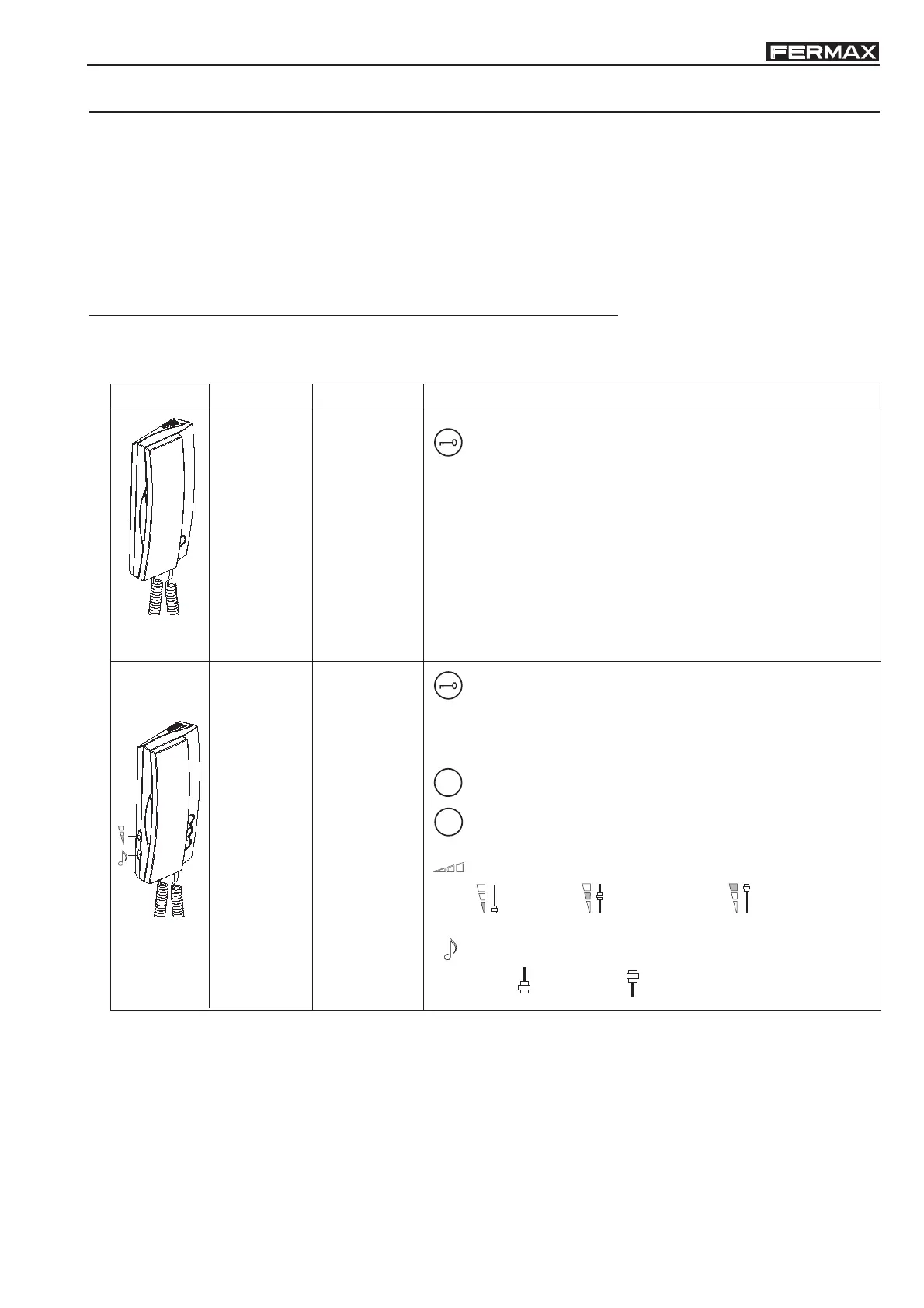

Audio Terminals: Telephones
The VDS telephones can be installed in telephone only systems, mixed monitor and telephone systems or as
additional equipment in monitor systems.
Door lock-release / call guard unit button.
· When in conversation with the outdoor entry panel, press to
activate the door lock-release mechanism.
· With the monitor hung up, press to make a call to the guard
unit (where a guard unit exists).
INSTALLATION
Surface
COMMUNICATION
Telephone
Receiver
FEATURES
Surface
Loft BASIC
Ref. 3390
TELEPHONE
Loft EXTRA
Ref. 3391
Telephone
Receiver
2 buttons for additional functions.
Enables activation of relays (BUS2 or conventional) to use
additional devices: secondary door opening, additional
lighting activation, etc.
F1
F2
Door lock-release / call guard unit button.
· When in conversation with the outdoor entry panel, press to
activate the door lock-release mechanism.
· With the monitor hung up, press to make a call to the guard
unit (where a guard unit exists).
ON/OFF switch with three positions:
Switched on with
medium volume
Switched on with
high volume
Call tone selector: 2 tones available.
Off
Tone 1
Tone 2
