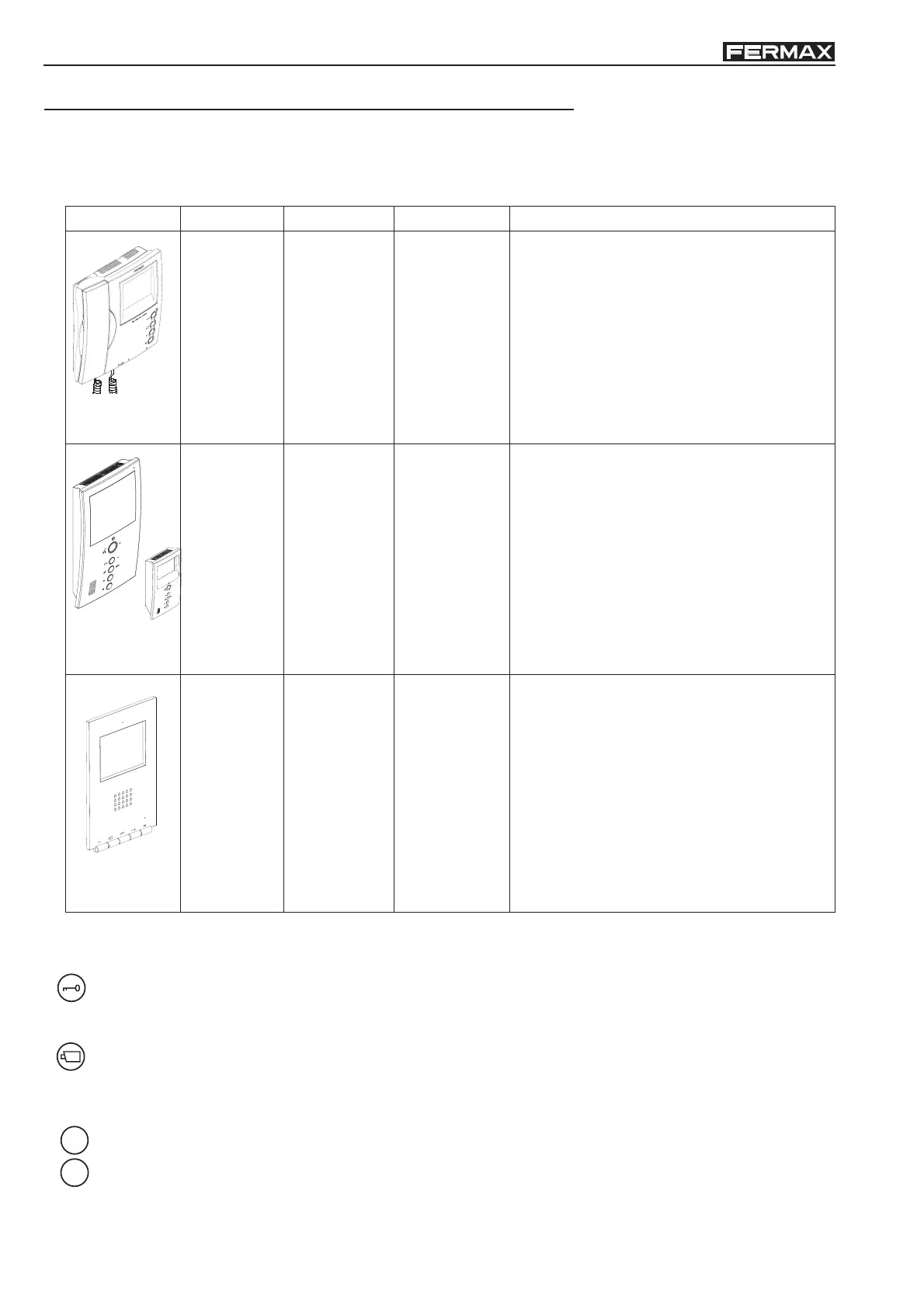

Video terminals: Monitors
Fermax offers a wide range of monitors for the VDS system:
* Common functions on all VDS monitors
Door lock-release / call guard unit button.
· When in conversation with the outdoor entry panel, press to activate the door lock-release mechanism.
· With the monitor hung up, press to make a call to the guard unit (where a guard unit exists).
Auto-Start Button: Manual Monitor Activation
With the monitor on standby, press and hold this button for 1 second to switch the monitor on manually. To
sequentially select between the camera on the main panel and the secondary panel (where one exists), hold
the button down for 2 seconds.
Buttons for additional functions.
Allows the user activate relays to use additional devices: second door lock-release, additional lighting
activation, etc.
F1
M
EN
U
INSTALLATION
- Screen: Colour. TFT 3.5’’; B/W: 4' Flatscreen
- Image Adjustments: colour, shine and contrast
using potentiometers.
- ON/OFF switch with three positions: off/on
medium volume/on low volume.
- 2 selectable call tones
Surface
COMMUNICATION
Telephone
Receiver
IMAGE SPECIAL FEATURES
Black/White
and
Colour
Surface
and
Flush-Mounted
Black/White
and
Colour
Hands Free:
Half-Duplex
(B/W Monitor)
Full-Duplex
(Colour Monitor)
Flush-Mounted Colour
Hands Free
Full-Duplex
- Programming from monitor
- Screen: Colour. TFT 3.5’’; B/W: 4' Flatscreen
- Configuration through programming using
monitor buttons:
· Volume Adjustments: high-medium-low.
· Call tone selector: various tones available.
· Image adjustments: 4 pre-established
configurations.
· ‘Mute’ option (LED indicated activation).
- Programming from monitor
- Programming Display.
- Screen: 4' TFT
- Configuration programmed using monitor
buttons:
· Volume Adjustments: high-medium-low.
· Call Tone Selector: various melodies
available.
· Image adjustments: 4 pre-established
configurations.
· ‘Mute’ option (LED indicated activation).
Loft
Ref. 3311-3305
Loft Compact
Ref. 3740-3753
iLoft
Ref. 5610
MONITOR
The VDS monitors should be installed in VDS video systems (with video panels). The video systems can be
extended with monitors and/or additional telephones.
F2
