1 PT-Series Camera Installation
For configuration and basic setup information using the onboard web server, refer to Basic Operation
and Configuration on page 2-1.
1.5.2 Prior to Cutting/Drilling Holes
When selecting a mounting location for the PT-Series camera, consider cable lengths and cable
routing. Ensure the cables are long enough given the proposed mounting locations and cable routing
requirements.
Use cables that have sufficient dimensions to ensure safety (for power cables) and adequate signal
strength (for video and communications).
1.5.3 Camera Mounting
Caution!
PT-Series cameras must be mounted upright on top of the mounting surface, with the base below the
camera. The unit should not be hung upside down.
Once the mounting location has been selected, verify both sides of the mounting surface are
accessible.
Use a thread locking compound such as Loctite 242 or equivalent with all metal to metal threaded
connections.
When lifting the PT-Series camera use the camera body and base, not the tubes.
Not to scale

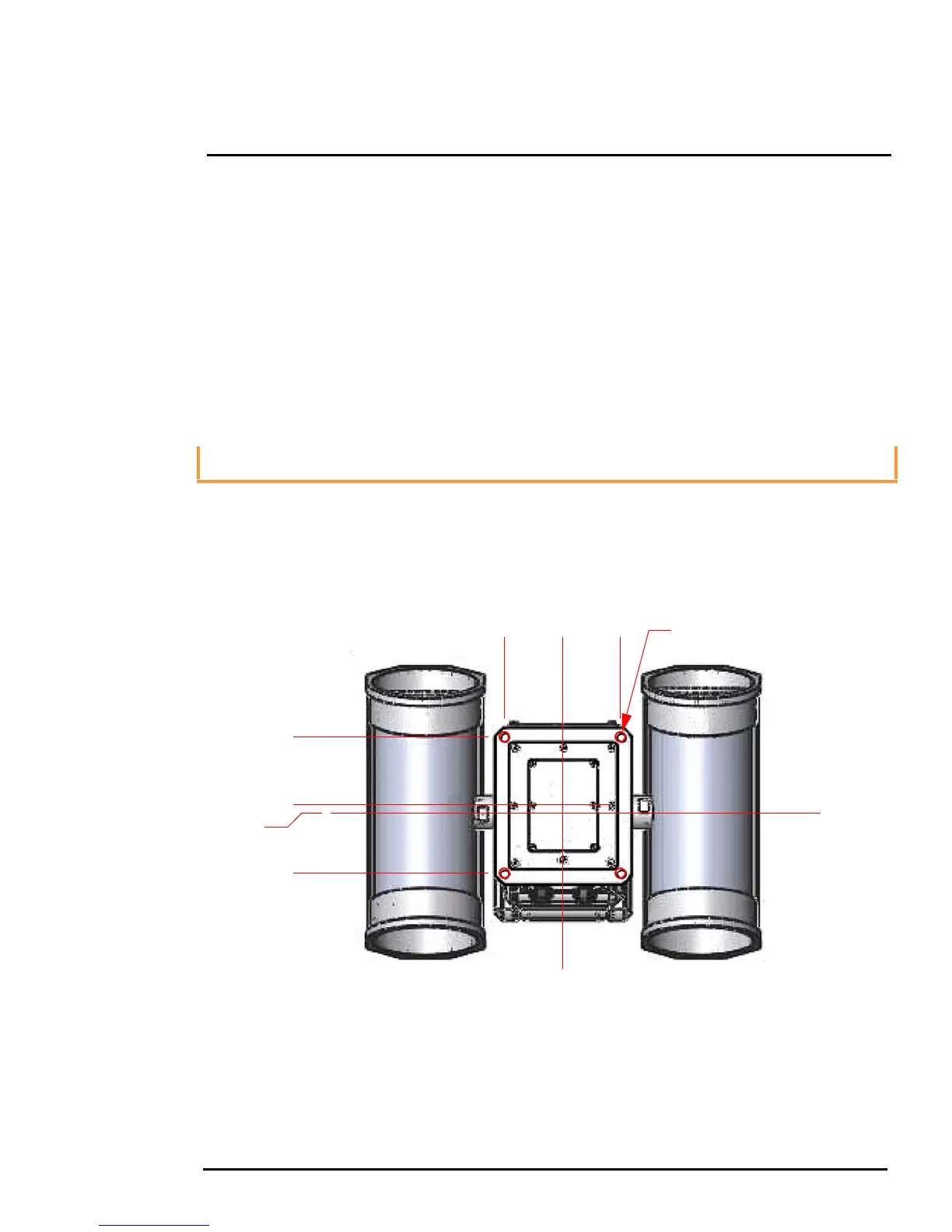

Figure 1-2: PT-Series Camera Mounting
0
0.28
All dimensions in inches
0
2X 3.19 ± .02
2X 3.19 ± .02
2X 2.72 ± .02
2X 2.72 ± .02
4X Ø.354 THRU
Pan Axis
Tilt Axis
