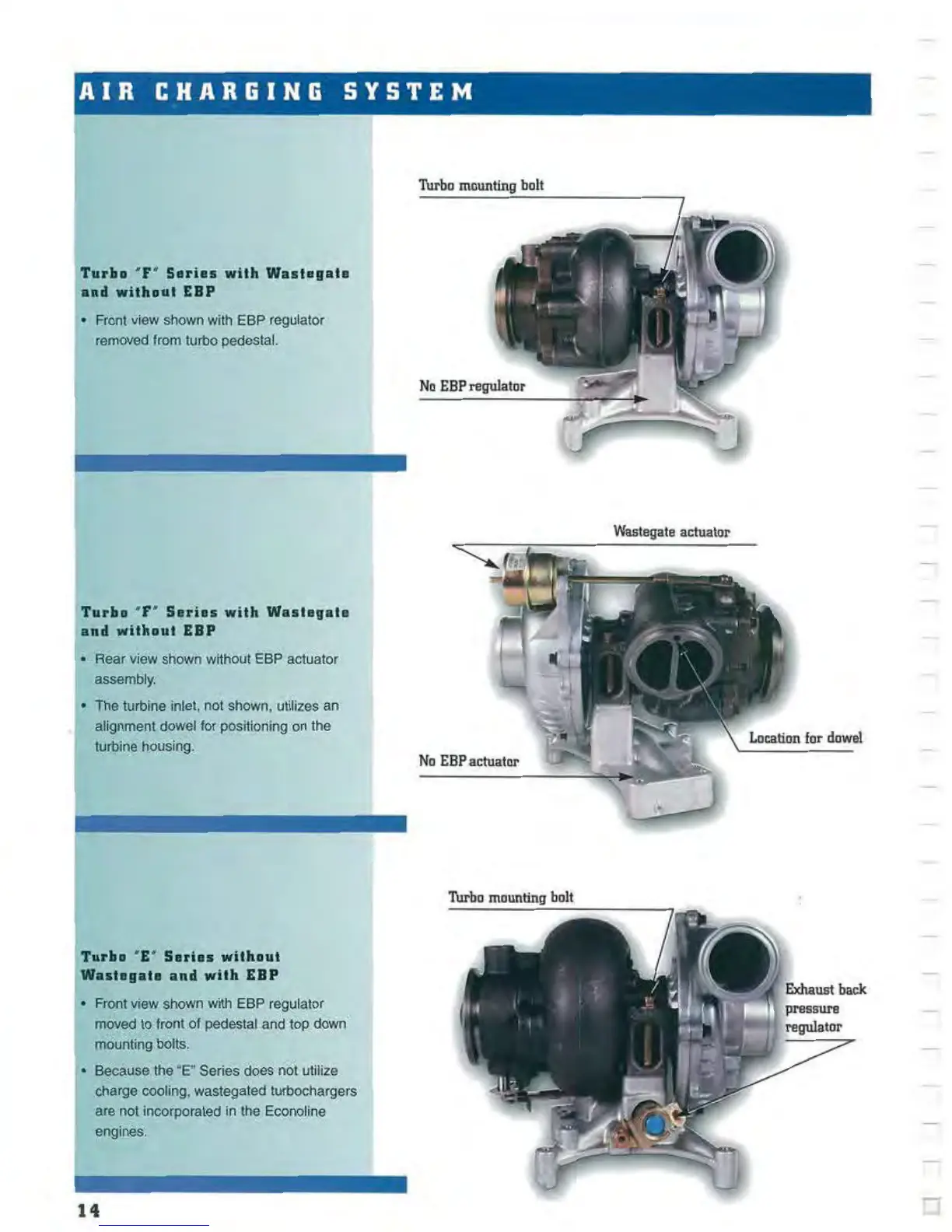

'A I R CHARGING SYSTEM
Tnh 'F' Series with Wulagala
aad wilhaal EBP
• Front view shown with ESP regulator
removed from tUioo pedestal.
Turbo 'F' Sarin with Waatagata
aad withaul EBP
• Rear view shown without ESP actuator
assembly.
• The turbine inle~ not shown , utilizes an
alignment
dowel for positioning on the
IU11line housing.
Turbo 'E' Sarles without
Waala1ala and with EBP
• Front view shown with EBP regulator
moved to front of pedestal and top down
mounting bolts.
• Becausa the
·e- Series does not utilize
charge cooling, wastegaled turbochargers
are not incorporated
in the Econollne
engines.
14
Thrbo moun ting bolt
No EBP regulator
No EBP actuator
Thrbo mounting bolt
Wastagate actuator
Location for dowel
