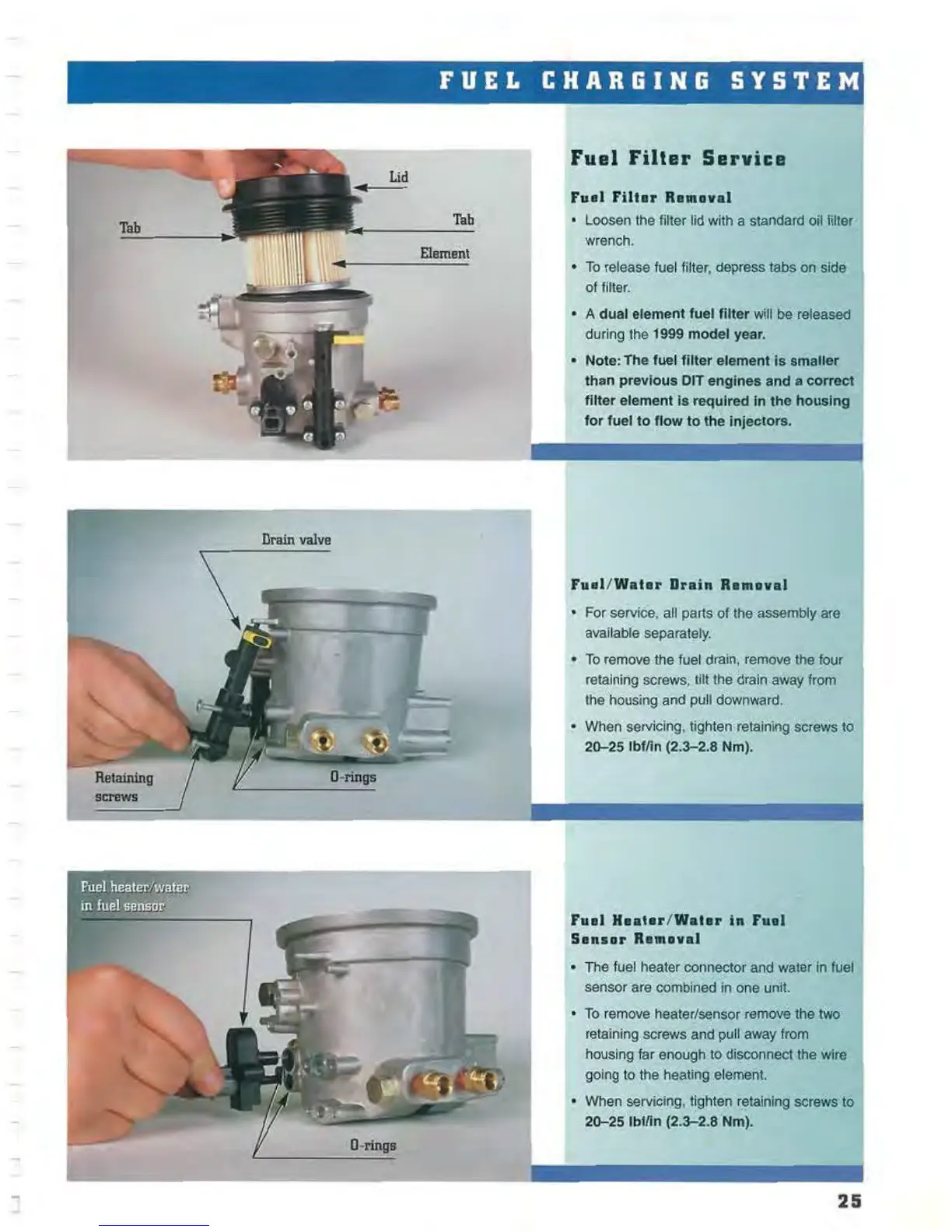

Drain
valve
FUEL
CHARGING
SYSTEM
Tab
Element
Fual
Filter
Sarvica
Fuel Fi
lt
er
R•
•••
• l
• Loosen the filter lid with a standard oil filter
wrench.
•
To
release fuel filter, depress tabs on side
of filter.
• A
dual
element
fuel
filter
will
be
released
during the 1999
model
year.
•
No
te:
The
fuel
filter
element
Is
smal
ler
than
previous
DIT
engines
and
a
correct
filter
element
Is
required
In
the
hous
i
ng
for
fuel
to
flow
to
the
Injectors.
Fue
l/
Wa
ter
Drain R
o•
on l
• For service, all parts
of
the assembly are
available separately.
• To remove the fuel drain, remove
Ule
four
retaining screws,
tilt the drain away from
the housing and pull downward.
• When servicing. tighten retaoning screws
to
20-25
lbflin
(2.3-2.8
Nm
).
Fuel
Heat
er
/ Wa
ter
In
F
ue
l
Sen
s u Re
•e
wa
l
The fuel heater connector and water
in
fuel
sensor
are
combined
on
one unit.
• To remove heater/sensor remove
Ule
two
retaining screws and pull away from
housing far enough to dosconnect
Ule
wire
going
to
the heating element.
• When servicing, tighten retaining screws
to
20-25
!bflln
(2.3-2.8 Nm).
