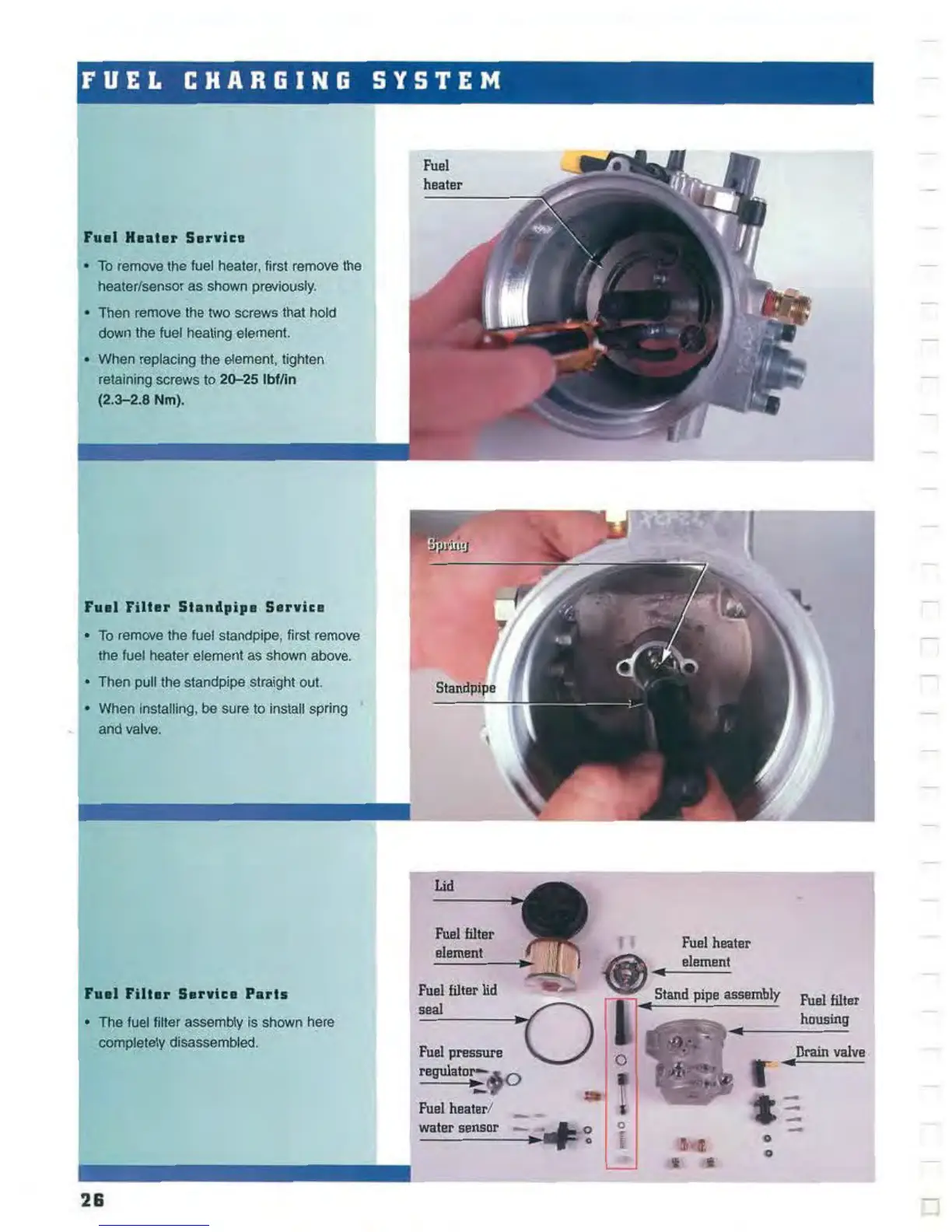

FUEL CHARGING SYSTEM
Fuel Heeter s ... vl ..
• To remove the fuel heater. hrst remove the
heater/sensor as shown pr6VIO\JSty .
• lhen remove the two screws that hold
down the fuel heating element.
•
When replacing the element, tighten
retaining screws to
20..25 lbl /ln
( 2.3- 2.8 Nm ).
r .. l FUt ... Staadplpe s ... vlce
• To remove the fuel stan<lptpe , first remove
the fuel heater element as shown above.
• lhen pull the standpipe straight oot.
• When installing,
be sure to install spring
and valve.
Fuel rut ... s .... 1 .. r ... te
• The fuel fiHer assembly is shown here
completely
disassembled.
28
Fuel
heater
Standpipe
\
Lid
Fuel liltar
elemant
Fuel filter lid
seal
Fuel liltar
Drain valva
r
t =
-0
0
