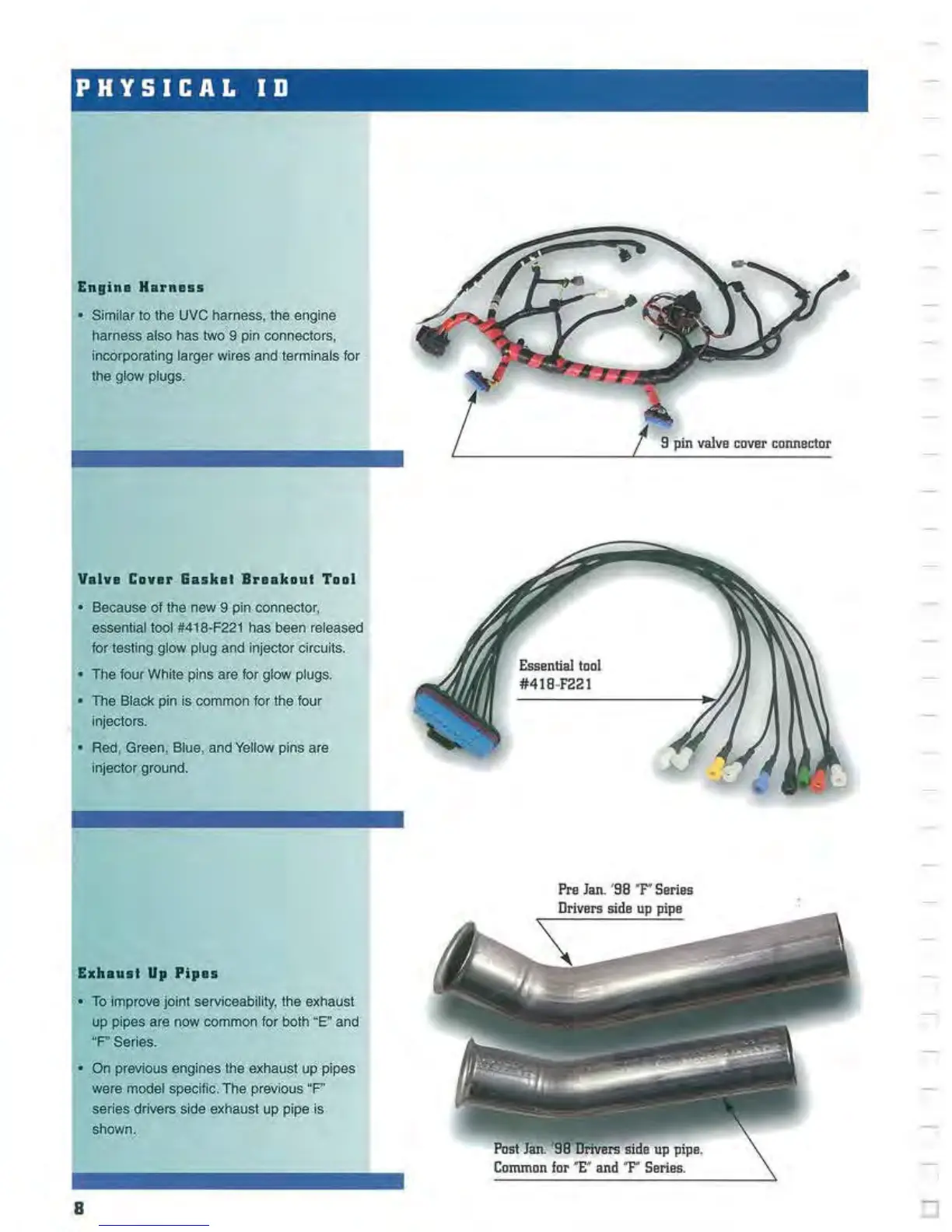

PHYSICAL ID
Entin e H ar n ess
• Similar to the UVC harness, the engine
harness also has two
9 pin connectors,
incorporating larger wires and terminals
for
the glow plugs.
Va lv e Cavn Ga sk et B rea k au t Ta al
Because of the new 9 pin connector,
essential
tool #418·F221 has been released
for testing glow plug and injector circuits.
•
The four White pins are for gl ow plugs.
• The Black pin is
common for the four
Injectors.
• Red, Green, Blue, and
Yellow pins are
injector ground.
Exhau et Up P ipn
• To improve joint serviceability, the exhaust
up pipes are now common for both "
E" and
'P' Series.
• On
previous engines the exhaust up pipes
were model specific. The previous "P'
series drivers si de exhaust up pipe is
shown.
8
Essential tool
#418 - F221
9 pin valve cover connector
Pre Jan. '98 ' F" Series
side up pipe.
Common for 'E' and "F" Series .
