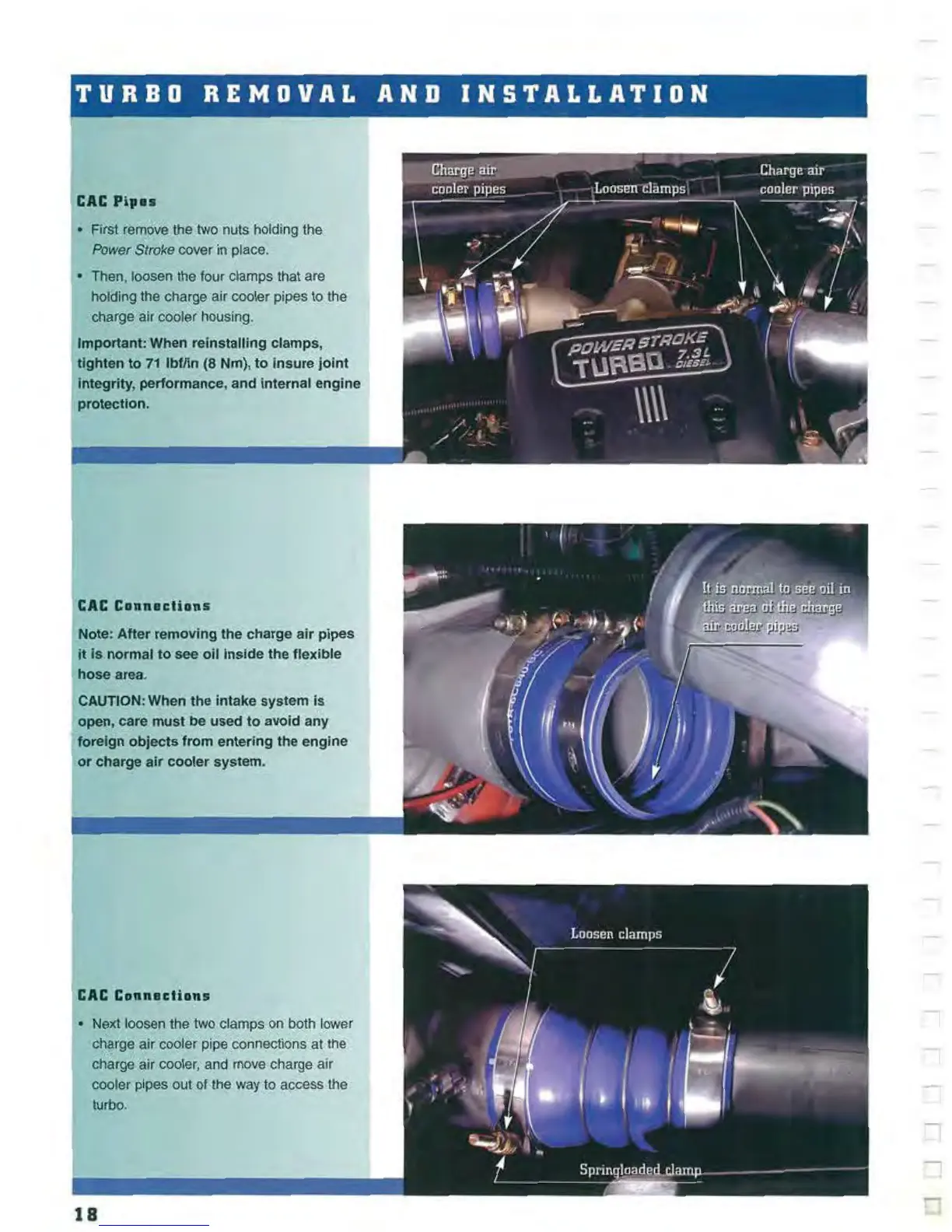

CAC Pip ..
• First remove the two nuts holding lhe
Pow er Stroke cover in place.
• Then, loosen the four
clamps that are
holding the charge air cooler
p1pes to the
charge air cooler housi
ng.
I mportant: When reinstalling clamps,
tigh t en to 71 lbl/ln (8 Nm), to Insure joint
I ntegrity , performance, and I nt ernal engine
protection.
CAC Cenn .. llen s
Note: Alter removing the charge air pipes
It Is n ormal to aee oil ins i de the flexi ble
hose a rea .
CAUTION: When the intake sy stem is
open, care mu st be used to avoid any
foreign
object s f rom enter in g the e ng i ne
or charge air cooler system .
CAC C•nn .. ll•ns
• Ne xt loosen the two clamps on both lower
ch
arg e air cooler pi pe co nn ections at the
charge air cooler, and
move charge air
cooler pipes out of the way to access the
turbo.
