OVERHAUL (Continued)
NOTE: Dished washer must be fitted correctly, with the
outer circumference pressing against the fan. In this way, it
acts as a vibration damper and prevents fatigue failures.

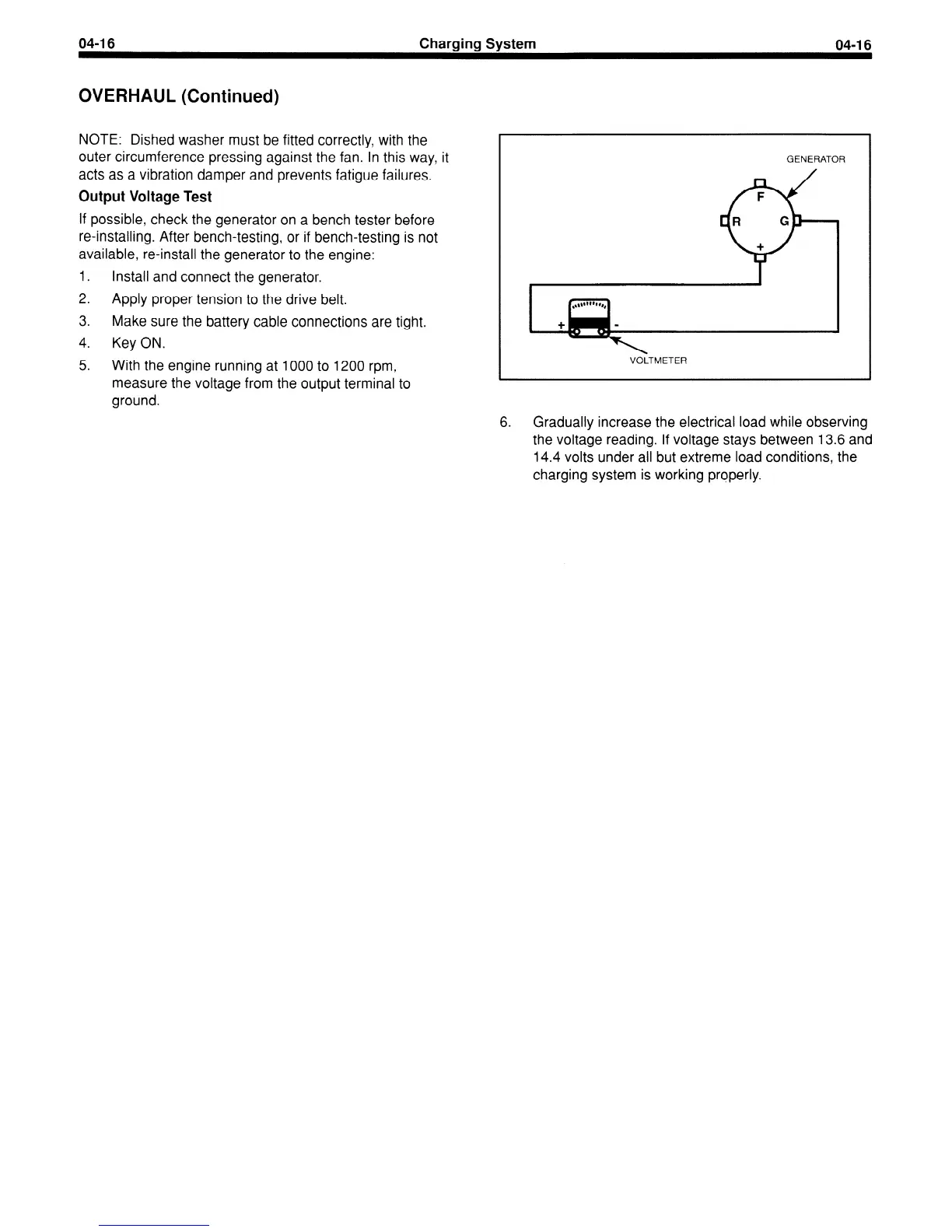

Output Voltage Test
If possible, check the generator on a bench tester before
re-installing. After bench-testing, or if bench-testing is not
available, re-install the generator to the engine:
1.
Install and connect the generator.
2.
Apply proper tension to the drive belt.
3.
Make sure the battery cable connections are tight.
4.
Key ON.
5. With the engine running at 1000 to 1200 rpm,
measure the voltage from the output terminal to
ground.
GENERATOR
VOLTMETER
6. Gradually increase the electrical load while observing
the voltage reading. If voltage stays between 13.6 and
14.4 volts under all but extreme load conditions, the
charging system is working properly.
