3.2 External dimensions

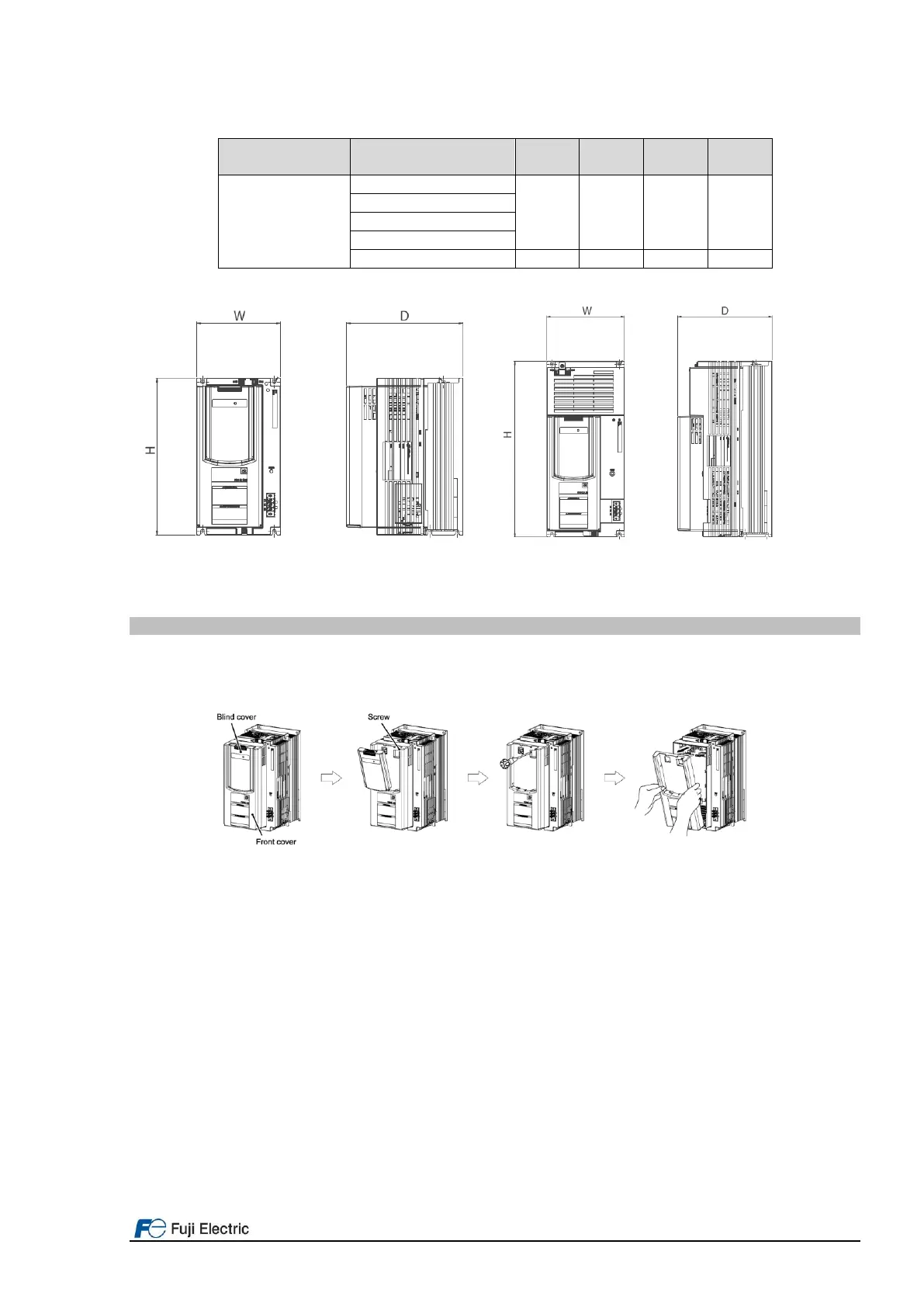

Table 3.2. External dimensions and frame definition.
Power Supply
voltage
Type
Frame
W
(mm)
H
(mm)
D
(mm)
3-ph 400 VAC
FRN0010LM2C-4E
1
140,0
260,0
195,0
FRN0015LM2C-4E
FRN0019LM2C-4E
FRN0025LM2C-4E
FRN0032LM2C-4E
2
160,0
360,0
195,0
FRN0010LM2C-4E to FRN0025LM2C-4E
FRN0032LM2C-4E
4. Removal and attachment of front cover
In order to remove properly front cover, please follow the procedure below figure. In the following description, it is
assumed that the inverter has already been installed.
Figure 4.1: Removing front cover step by step (Frame 1 & 2)
