Fujitsu WGYA050DG6 User Manual

- (OU01 - 11) -
Outdoor unit / Single phase
OUTDOOR UNIT WO

G112-140LCTA
OUTDOOR UNIT WO

G112-140LCTA
INSTALLATION PLACE3-2.

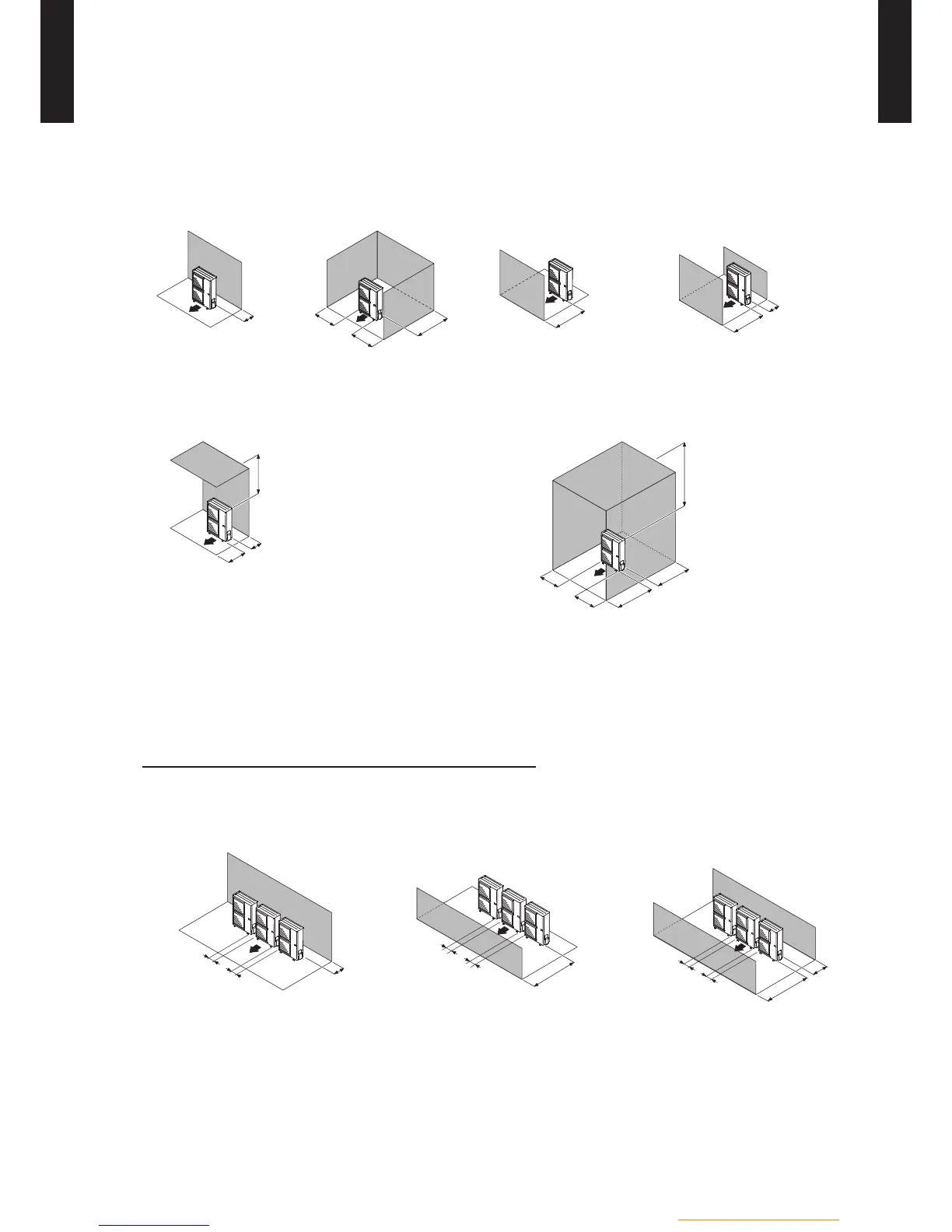

SINGLE OUTDOOR UNIT INSTALLATION

(unit: mm)
When the upward area is open
z
Obstacles at rear only Obstacles at rear and
sides only
Obstacles at front only Obstacles at front and rear only
150
200
300
200
1000 or more
1000 or more
150
When an obstruction is present also in the upward area
z
Obstacles at rear and above only Obstacles at rear, sides, and above only
300
Max. 500
1000
1500
250
250
500
Max. 500
MULTIPLE OUTDOOR UNIT INSTALLATION

Provide at least 15 mm of space between the outdoor units if multiple units are installed. •
When routing the piping from the side of an outdoor unit, provide space for the piping.
•
No more than 3 units must be installed side by side.
•
When 3 units or more are arranged in a line, provide the space as shown in the following example
when an obstruction is present also in the upward area.
When the upward area is open
z
Obstacles at rear only Obstacles at front only Obstacles at front and rear only
250 or more
250 or more
300
250 or more
250 or more
1500
or more
250 or more
250 or more
1500 or more
500
