Fujitsu WGYA050DG6 User Manual

- (OU01 - 17) -
Outdoor unit / Single phase
OUTDOOR UNIT WO

G112-140LCTA
OUTDOOR UNIT WO

G112-140LCTA

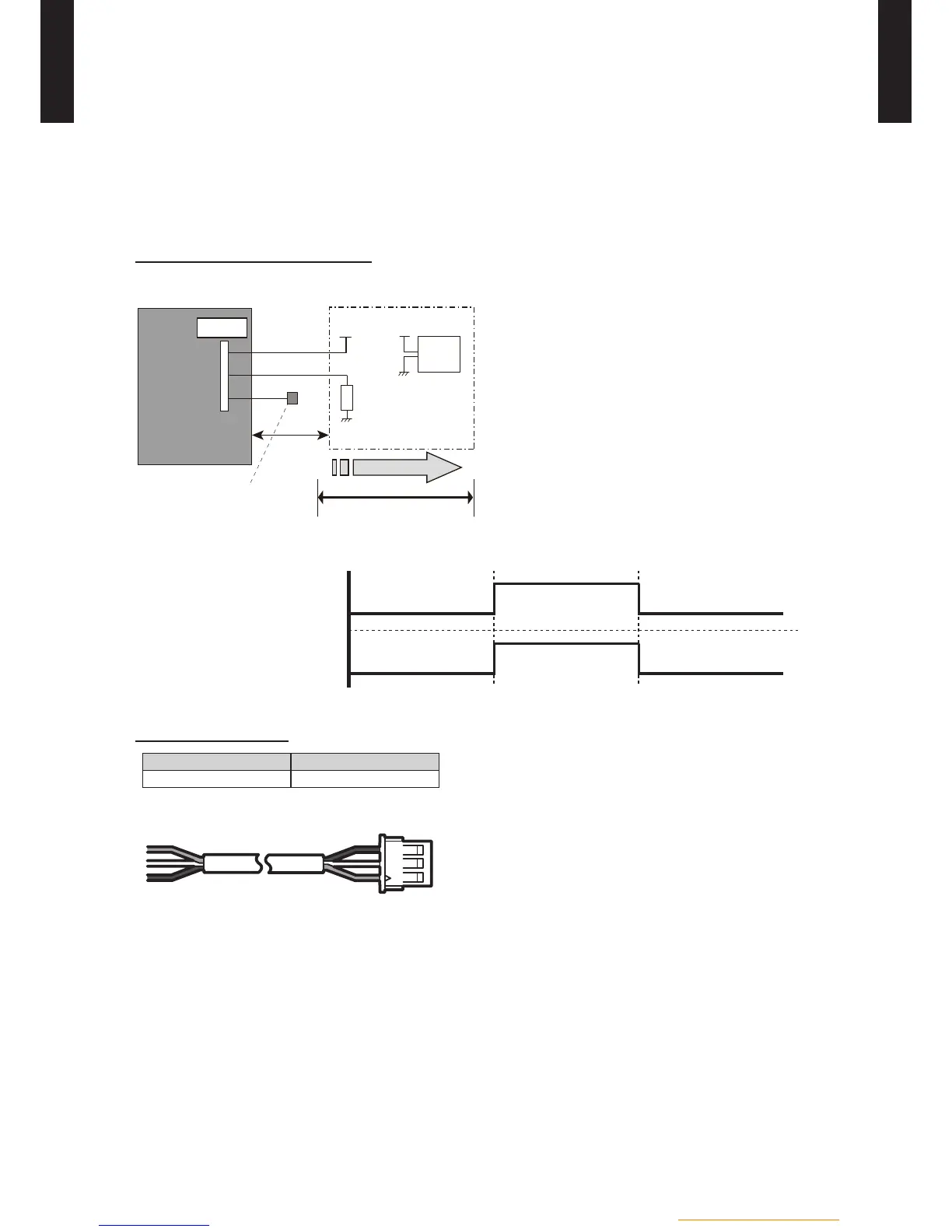

EXTERNAL OUTPUT

Compressor status output
z
Compressor operation status signal can be output by means of the following on-site work. •
Circuit diagram example
Signal
Outdoor
control PC board
Connected unit
Connector
1
2
3
Field supply
* Make the distance from the PC board to the connected unit within 10 m.
Surely insulate with
insulation tape etc. since
this wire is not used.
*10 m
Red
White
Black
Vcc
+
+
-
Load
Vcc
Power
supply
ON
OFF
Operation
Stop
Compressor status
Output Signal
Parts (Optional)
Parts name Model name
External connect kit UTY-XWZXZ2
Wire (External output) : Red / White / Black
1) Power supply
●Voltage (Chart sign=Vcc) : DC 24V or less
2) Load
● Load : DC 20mA or less
