1. OPERATIONAL OVERVIEW
1-15

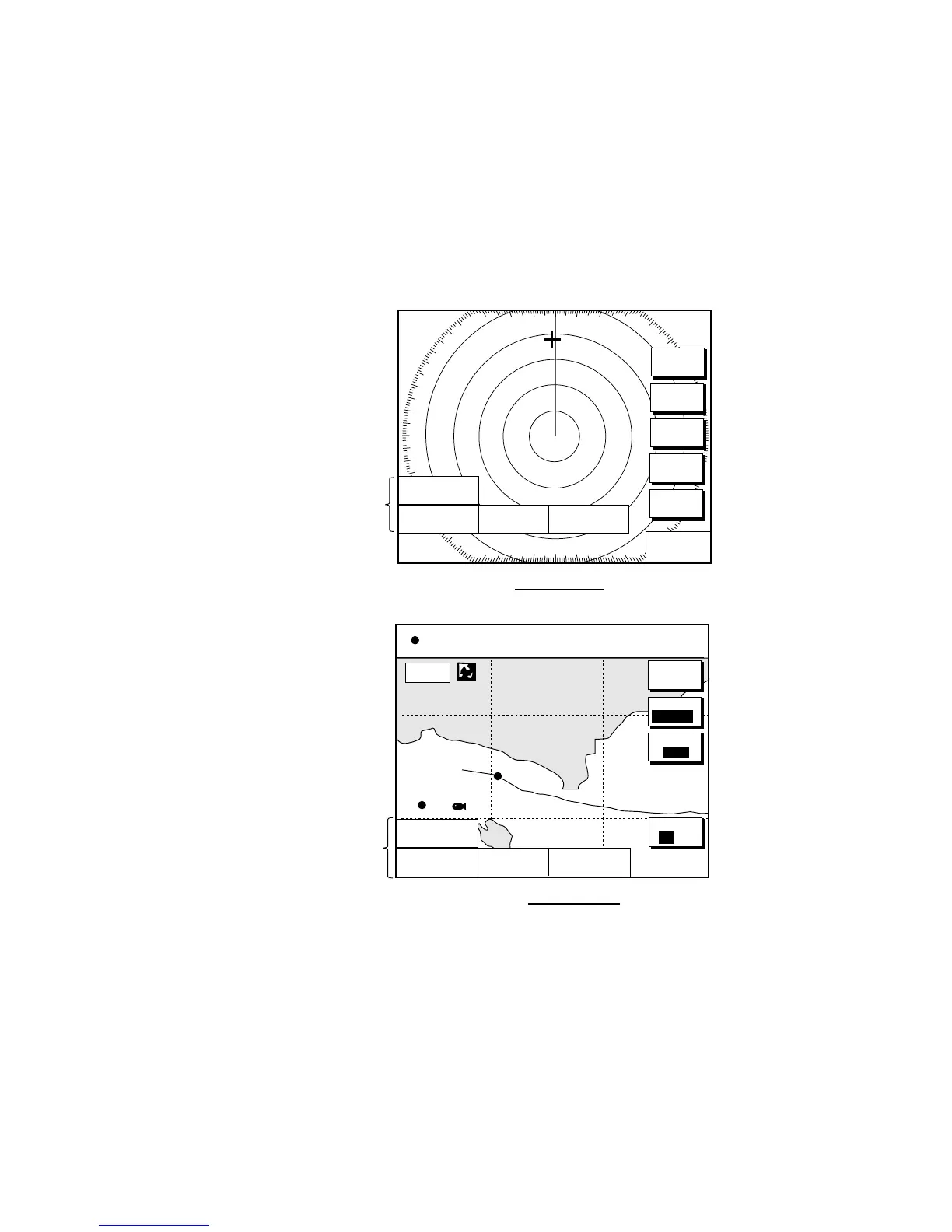

1.8 Data Boxes
Data boxes, providing navigation data, may be shown on any full-screen display.
Up to six data boxes (two in case of large characters) may be shown, and the
default data boxes are position (in latitude and longitude), course over ground,
speed over ground and trip log. The user may choose which data to display,
where to locate it, and show or hide it as desired. In addition, data boxes may be
set independently for each display mode (plotter, radar, sounder). For how to
select data for the data boxes, see the paragraph “5.5 Data Boxes Setup.”
FISH
WP-002
34° 22. 3456'N 359.9°M TRIP NU
080° 22. 3456'E
19.9 kt 99.9 nm
MARK
ENTRY
MODE
NTH UP
NAV
POS
ZOOM &
D. BOX
12/
H-UP
3nm
LP
319. 9°
M
359.9 ˚R
11.70
nm
+
SIGNAL
PROC.
RADAR
DISPLY
TARGET
NAV
FUNC
Data
boxes
Data
boxes
Radar Display
Plotter Display
16.0nm
D. BOX
ON/OFF
POSITION
47
° 58.535'N
122
° 36.496'W
COG
323.6
° M
SOG
20.0 kt
TRIP LOG
177nm
POSITION
47
° 58.535'N
122
° 36.496'W
COG
323.6
° M
SOG
20.0 kt
TRIP LOG
177nm
Data boxes
1.8.1 Showing, hiding data boxes with soft key
Plotter: D. BOX ON/OFF
Radar: ZOOM & D. BOX
→ D. BOX ON/OFF (EBL/VRM data box, cursor data
box also shown/hidden)
Sounder: AUTO/D. BOX
→D. BOX ON/OFF
