2. RADAR OPERATION
2-41
2.26.7 ARP, TTM target data
You can show motion trends (range, bearing, course, speed, CPA and TCPA) for
ARP or TTM targets. Note that TARGET ID NUMBER, in the ARP SETUP menu,
must be turned on to display this data.
1. Place the cursor on the target whose data you want to see.
2. If not already displayed, press the [HIDE/SHOW] key to show the radar soft
keys.
3. Press the TARGET and TARGET INFO soft keys. The data of the selected
target appears at the bottom left-hand corner of the display. (If an EBL/VRM
data box is displayed the ARP (TTM) data box will be under it.)
4. Press the RETURN soft key to finish.
5. To erase ARP/TTM target data, select the corresponding target with the
cursor, then press the [CLEAR] key.
TARGET
TRAIL
TLL
OUTPUT
TARGET
INFO
RETURN
359.9 ˚R
11.70
nm
+
No.01 VECTOR TRUE 15min
CSE 359.9˚T SPD 12.5kt
CPA 2.21nm TCPA 12:35
ARP
Target
CPA and TCPA
Course and Speed
Target No., Vector Reference (True), Vector Time
Cursor
01
ACQ
12/
H-UP
3nm
LP
319. 9
°T

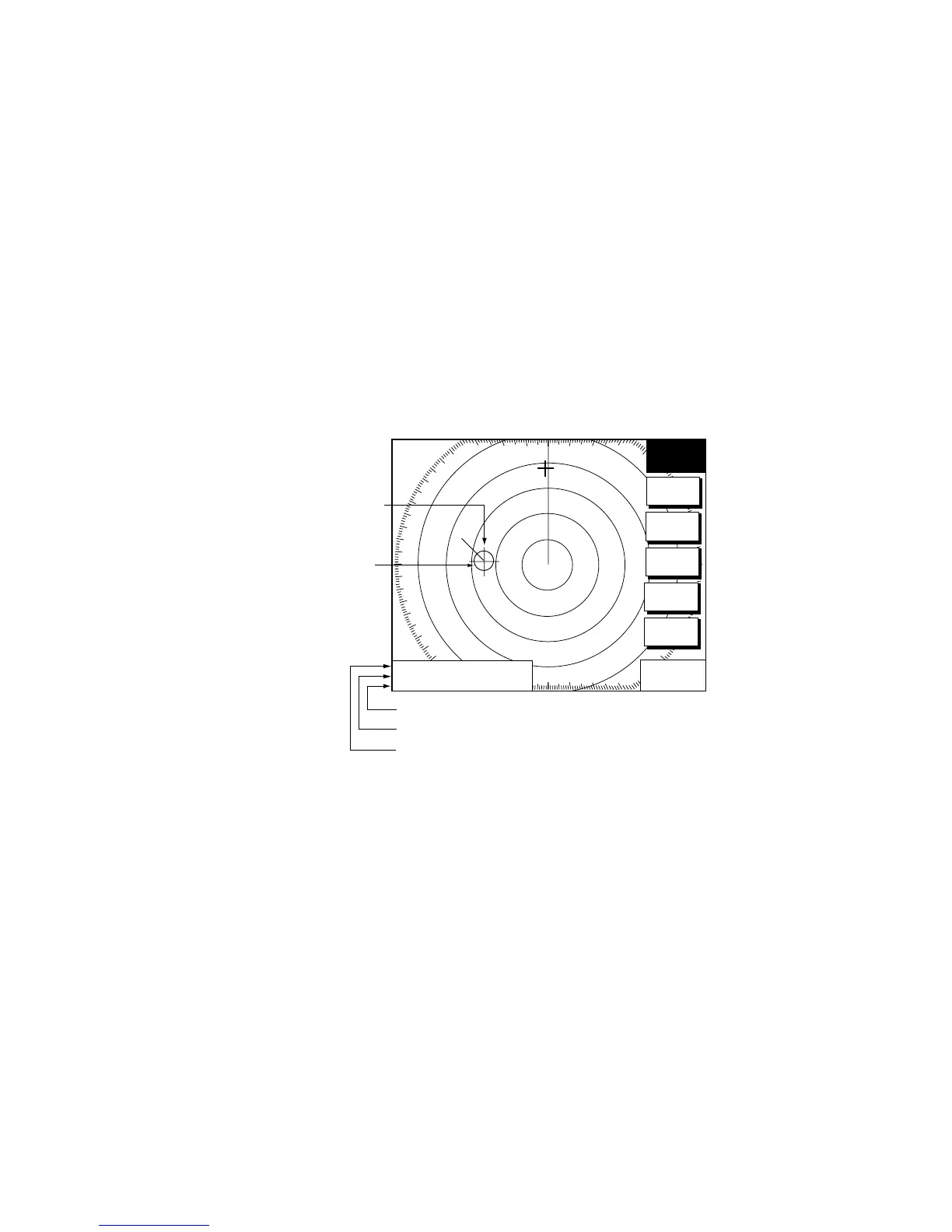

ARP target data
