INSTALLATION
FM
-4850
Operator’s
Manual
82

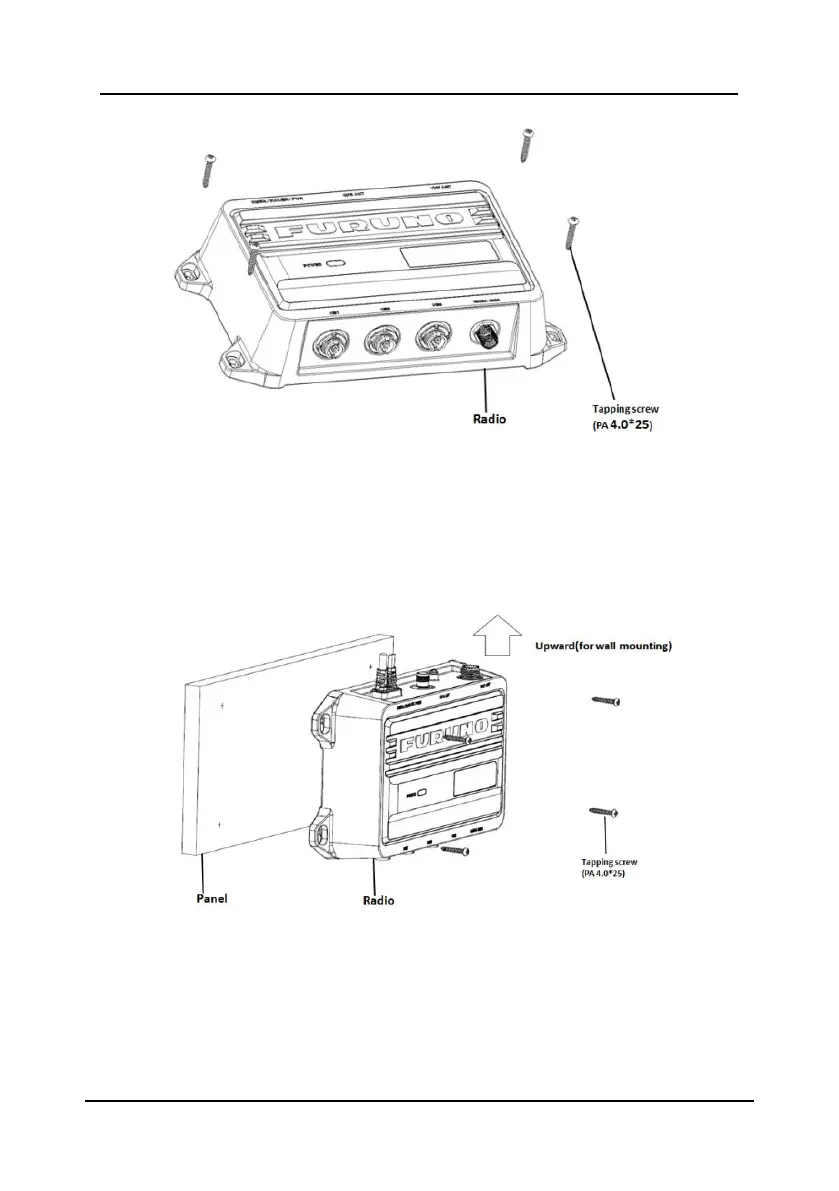

For wall mount
ing
Step 1
Put the
FM
-
4850
radio in a location where it is easy to install
it
.
Step 2
Fix the radio with four screws, taking care that the radio is correctly
oriented, with the cables and connectors facing upwards.
15.2.2
Ho
w
to Insta
ll the Handset
Step 1
Determine a location where it is easy to install the handset hanger.
Step 2
Fix the hanger with three screws.
Step 3
Place the handset into the hanger.
90
92
Table of Contents
Table of Contents
6
Foreword
10
System Configuration
12
Getting Started
13
Emergency Call (CH16)
13
How to Call Another Channel (CH16 or CH9)
13
Channels 13 and 67 (USA Channel Group Only)
14
Controls
15
Handset
15
Home Screen
17
Digital Selective Calling
19
General
19
Maritime Mobile Service Identity
19
What Is an MMSI
19
How to Enter Your MMSI Number
19
DSC Distress Call
20
How to Initiate a DSC Distress Call
20
How to Receive a DSC Distress Call
23
Individual Call
24
How to Initiate an Individual Call
24
How to Receive an Individual Call
26
Group Call
28
How to Initiate a Group Call
29
How to Receive a Group Call
30
All Ships Call
32
How to Initiate an All Ships Call
32
How to Receive an All Ships Call
33
Position Request Call
34
How to Initiate a Position Request Call
35
How to Receive a Position Request Call
37
Auto Position Polling
39
How to Enable the Auto Position Polling
39
How to Select Vessels to Which the Radio Sends Auto Position
40
Request Calls
40
How to Monitor Position
40
DSC Log
41
DSC Test
42
Channel Watch
46
Dual Channel
46
Triple Channel
46
Scan
48
Scan All
48
Scan All + 16
48
Memory Scan
48
Memory Scan + 16
49
Editing Memory Channel List
49
Weather Mode
51
Fog Horn/Hailer/Intercom
53
Fog Horn
53
Hailer
57
Intercom
58
Edit Handset Name
59
Setting Mmsi
61
General Setup
62
Display Setup
62
Adjusting the Backlight
62
Adjusting the Contrast
62
Units
62
Time Format
62
Time Offset
63
Speed
64
Bearing
64
Key Beep
64
GNSS Setup
65
Entering the "GNSS SETUP" Page
65
Internal GNSS
65
COG/SOG Display
66
Manual Position
66
I/O Port Setup
67
Entering the "I/O PORT SETUP" Page
67
Selecting Output Port
67
Gnss Output
68
Dsc Output
68
Ais Output
69
System Information
69
Entering the "SYSTEM INFO" Page
69
Software Version
69
Diagnostic Test
70
Factory Reset
70
Fog Horn Frequency
71
Service Menu
71
Channel Function Setup
72
Channel Group
72
Second Priority Channel
72
Edit Channel Name
73
Private Channel
74
Dsc Setup
75
Individual Directory
75
Adding an Entry
75
Editing an Entry
76
Deleting an Entry
77
Group Directory
77
Adding an Entry
77
Editing an Entry
78
Deleting an Entry
78
Channel Change Mode
79
Individual Acknowledgement
79
Position Acknowledgement
79
Test Acknowledgement
80
Auto Position Interval
80
Timeout
81
Atis Setup
82
How to Enter the ATIS ID
82
How to Enable/Disable the ATIS Feature
83
Maintenance and Troubleshooting
84
General Maintenance
84
Troubleshooting
85
Installation
88
Equipment Lists
88
Mounting
90
How to Install the Radio
90
How to Install the Handset
91
How to Install the Speaker
92
Wiring
95
Overview
95
VHF Antenna
95
Ground Cable
97
Power Cable
98
NMEA 0183 Wire
99
Horn Speaker
100
NMEA2000 Connector (CAN Bus Connector)
101
Extension Cable
101
GPS Antenna
102
Channel Assignments
104
Menu Tree
114
Specifications
117
Packing List
120
Outline Drawings
124
Interconnection
130
Tools
131
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Furuno FM-4850 and is the answer not in the manual?
Ask a question
Furuno FM-4850 Specifications
General
Brand
Furuno
Model
FM-4850
Category
Cordless Telephone
Language
English
Related product manuals
Furuno FM-4800
141 pages
Furuno FM-8
28 pages
Furuno FM-8800
268 pages
Furuno FM-8800S
268 pages
Furuno FM-8900S
133 pages
Furuno FM-8800D
137 pages
Furuno FM-8800D/8800S
69 pages
Furuno HS-8800
268 pages
Furuno 9ZWFM4850
133 pages
Furuno 9ZWFM8800S
137 pages
