FM
-4850
Operator’s
Manual
INSTALLATION
89
15.3.4
Po
wer
Cab
le
Step 1

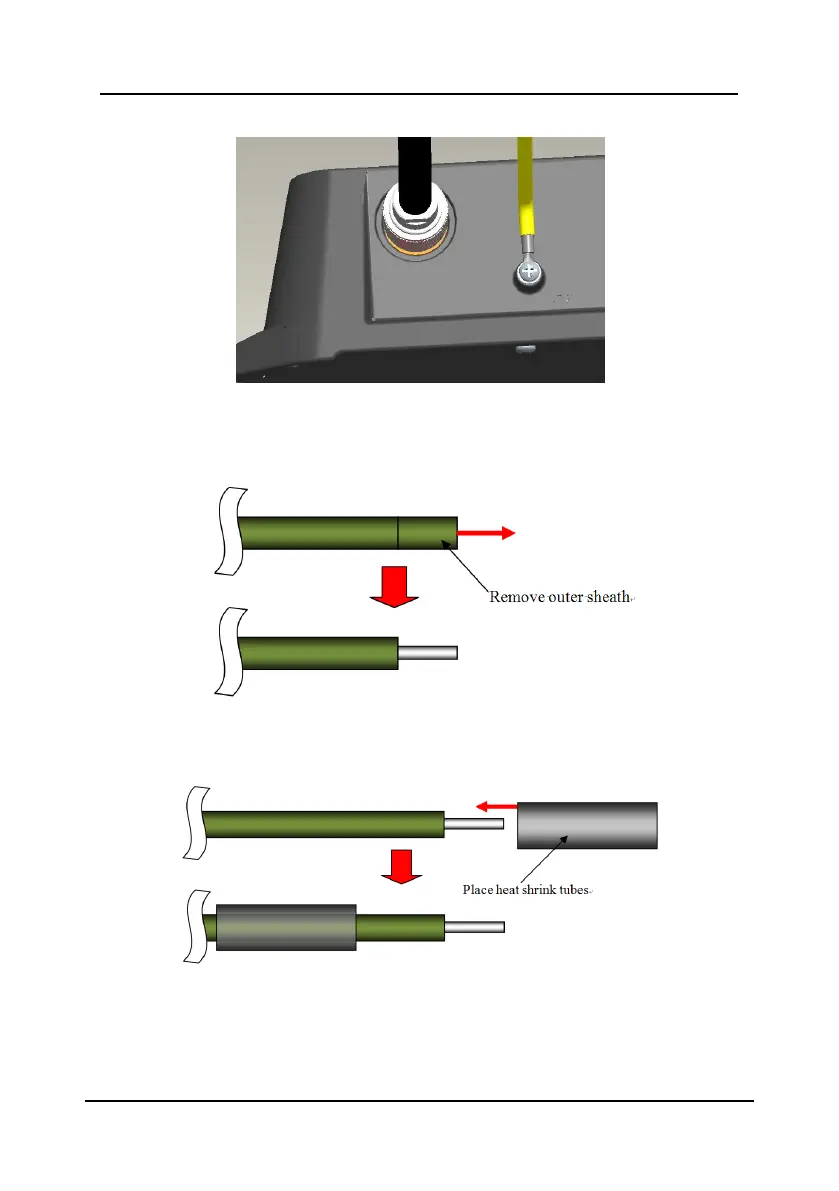

Remove the outer sheath at one end of the cable on the unit.
Step 2
Referring to the figure below, place heat shrink tubes on the w
ires, an
d
then solder the connection point.
Step 3
Move the heat shrink tubes to the soldered connection
,
and then apply
heat to the tubes.
97
99
