4. Setting the receiver board
A FAX-5+2.6m whip active antenna is usually used to receive DSC distress signal and
DSC general signal.

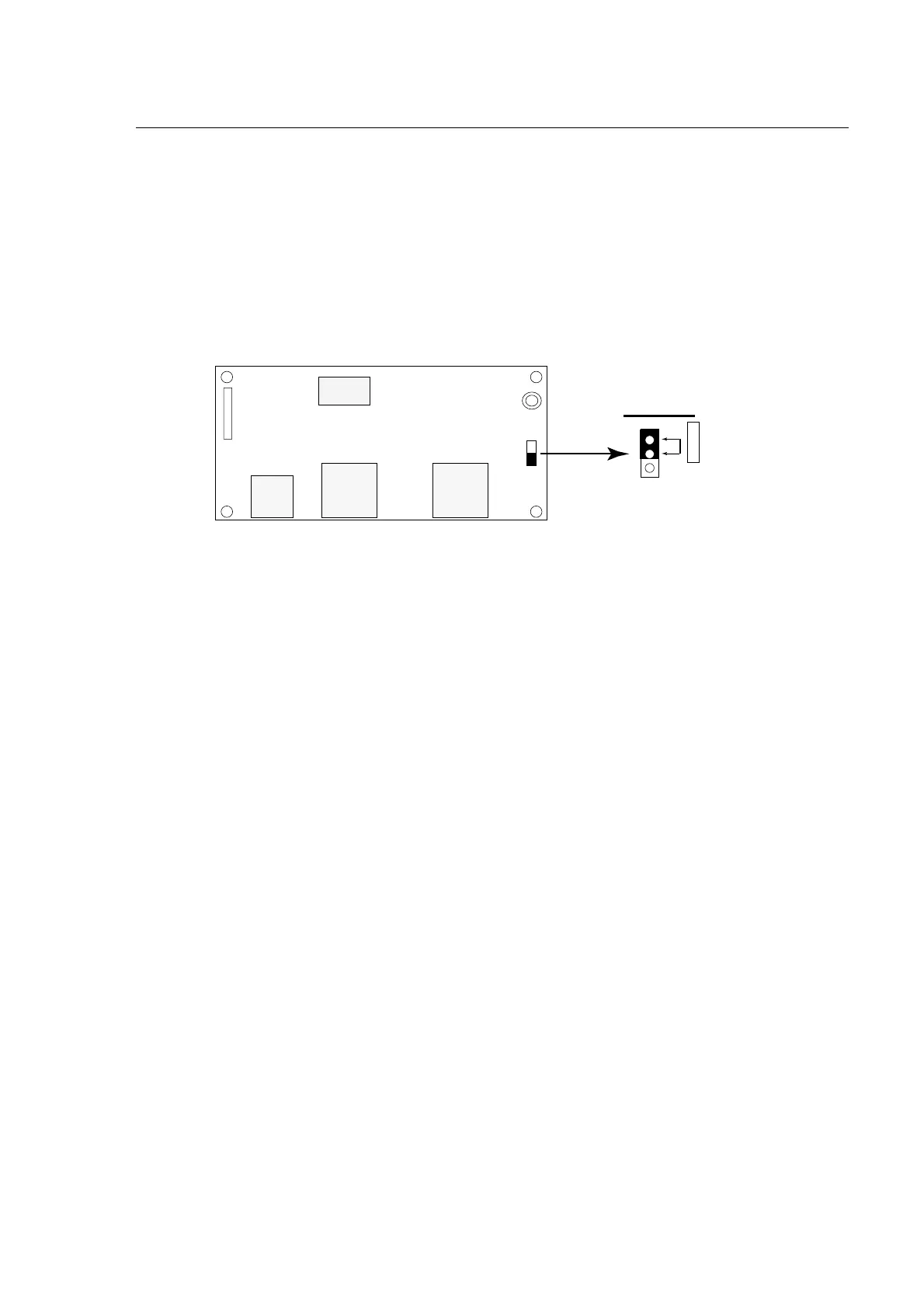

Set
J3
on the RX board to
ACTIVE
to apply voltage to the antenna.
05P0703:
DSC watch keeping receiver board
and
DSC general watch keeping receiver board (option).
J2
ANT
J3
ACTIVE
455kHz
FIL
Ref.OSC
ACTIVE
RX
05P0703
