DSC-6

B2-11

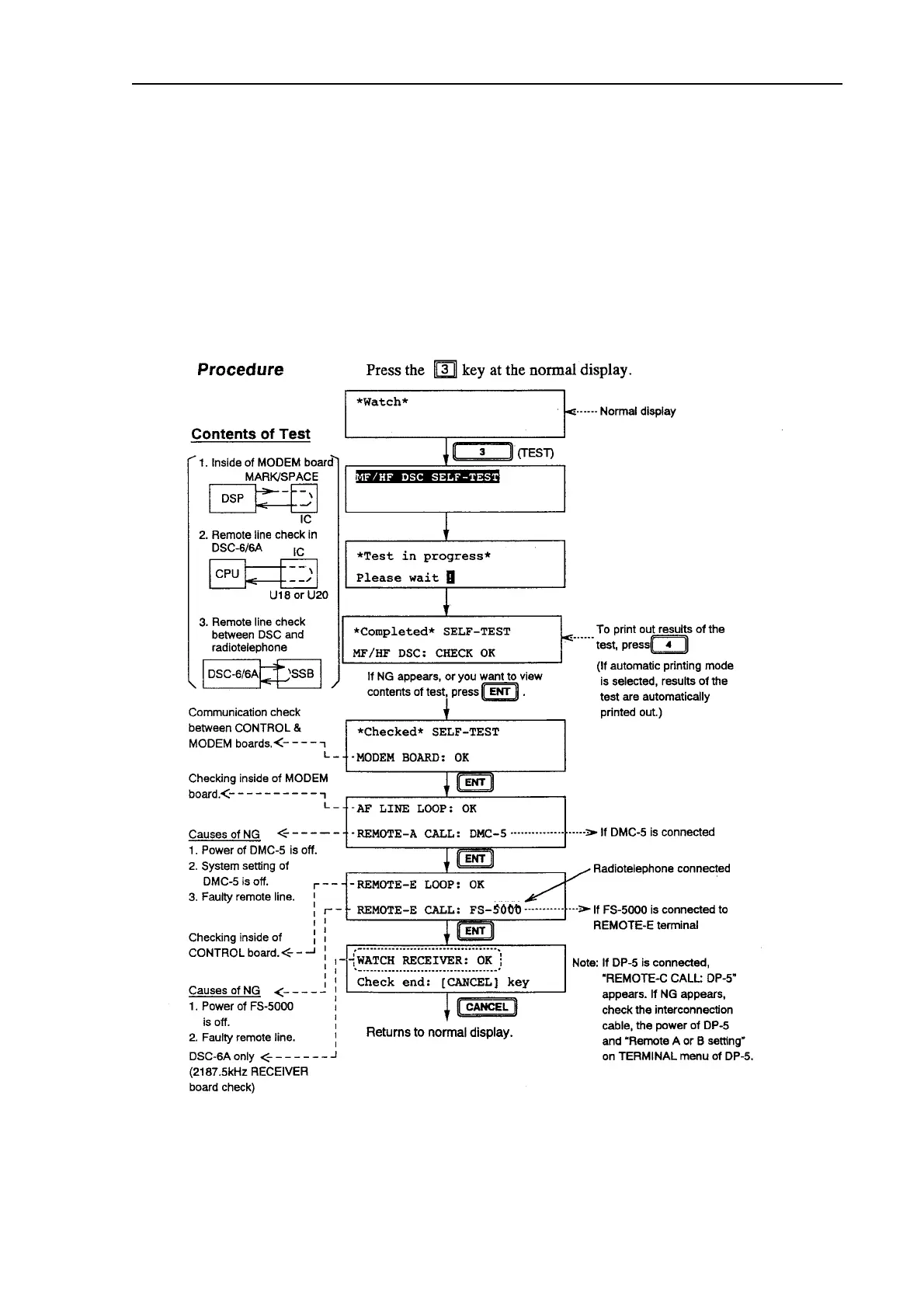

8. Self test

Pressing the [3] key at normal display, automatically starts the daily test and displays

the results. The test checks the MODEM, Remote line and the connection between DSC

and MF/HF RT, NBDP in MIF command.
