FM-8500
E4-8
4.
Jumper Setting
Change the jumper plug setting (JP2) on the CONTROL board according to the type of
the wing microphone : Carbon MIC or Dynamic MIC.
Handset
- HS-6000FZ6 (Carbon MIC)
- HS-6000FZ5 (Dynamic MIC)
MIC Receptacle Box
-RBD-VHF (For Carbon MIC)
-RBD-VHF-B (For Dynamic MIC)

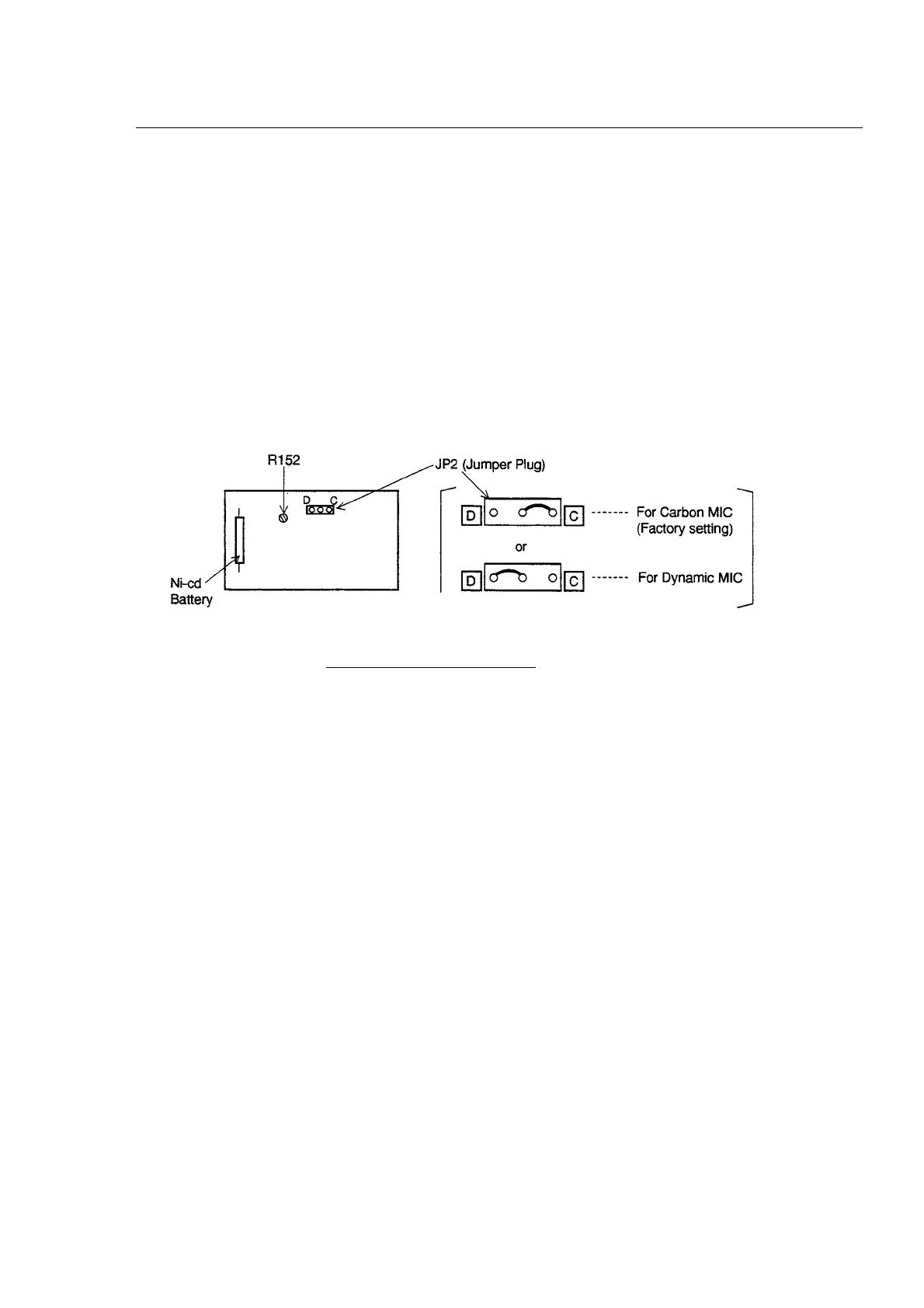

Top view of CONTROL PCB
For dynamic MIC, set R152 on the CONTROL board at fully counterclockwise (max).
No adjustment is required for carbon MIC.
To Next Page
