1. INITIAL SETTING AND ADJUSTMENT
1-29
10. Check the checkbox for [Channel No.] to set the items referring to step 12 of
section 1.4.2.
11. Click [Analog Input] on the menu bar.

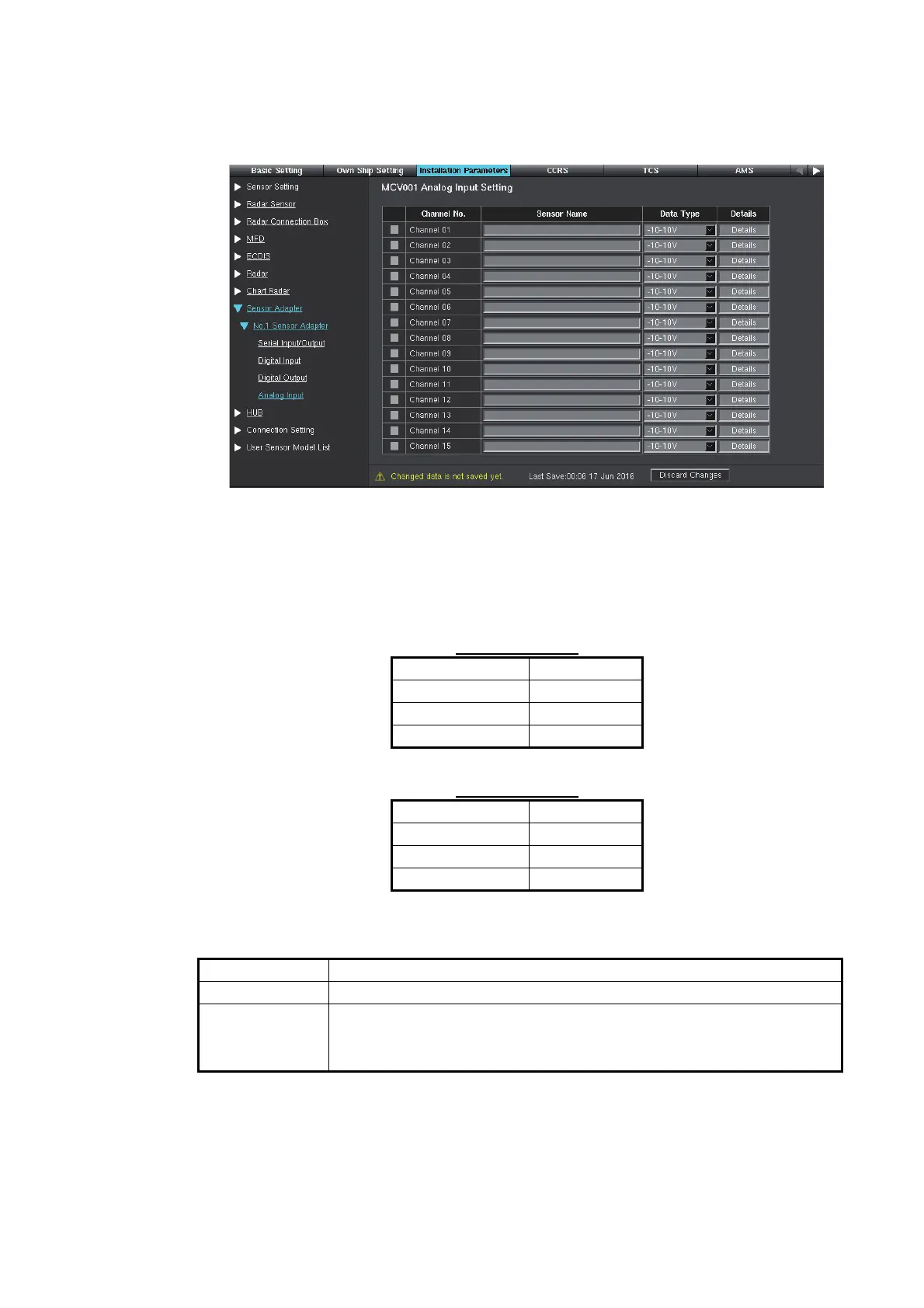

[Channel 01] to [Channel 15] are shown on the display. Each Sensor Adapter MC-
3010A has three input ports. When one Sensor Adapter MC-3010A is connected
to the MC-3000S, [Channel 01] to [Channel 03] can be used. When five Sensor
Adapters MC-3010A are connected, [Channel 01] to [Channel 15] can be used.
The connector no. on the MC-3010A board and corresponding serial port no. are
shown in the following table.
No.1 MC-3010A
No.2 MC-3010A
12. Check the checkbox for [Channel No.] to set the items referring to the table shown
below.
Connector No. Channel No.
J3 Channel 01
J4 Channel 02
J5 Channel 03
Connector No. Channel No.
J3 Channel 04
J4 Channel 05
J5 Channel 06
Item Remarks
[Sensor Name] Enter an appropriate name that indicates sensor’s function.
[Data Type] Sets the input data type. Setting range: -10-10V, 0-10V, 4-20mA.
Note: For [4-20mA], fix the jumper to the connector (J3 to J5). See the
installation manual of ECDIS or Chart Radar.
To Next Page
