1. MOUNTING, WIRING
5

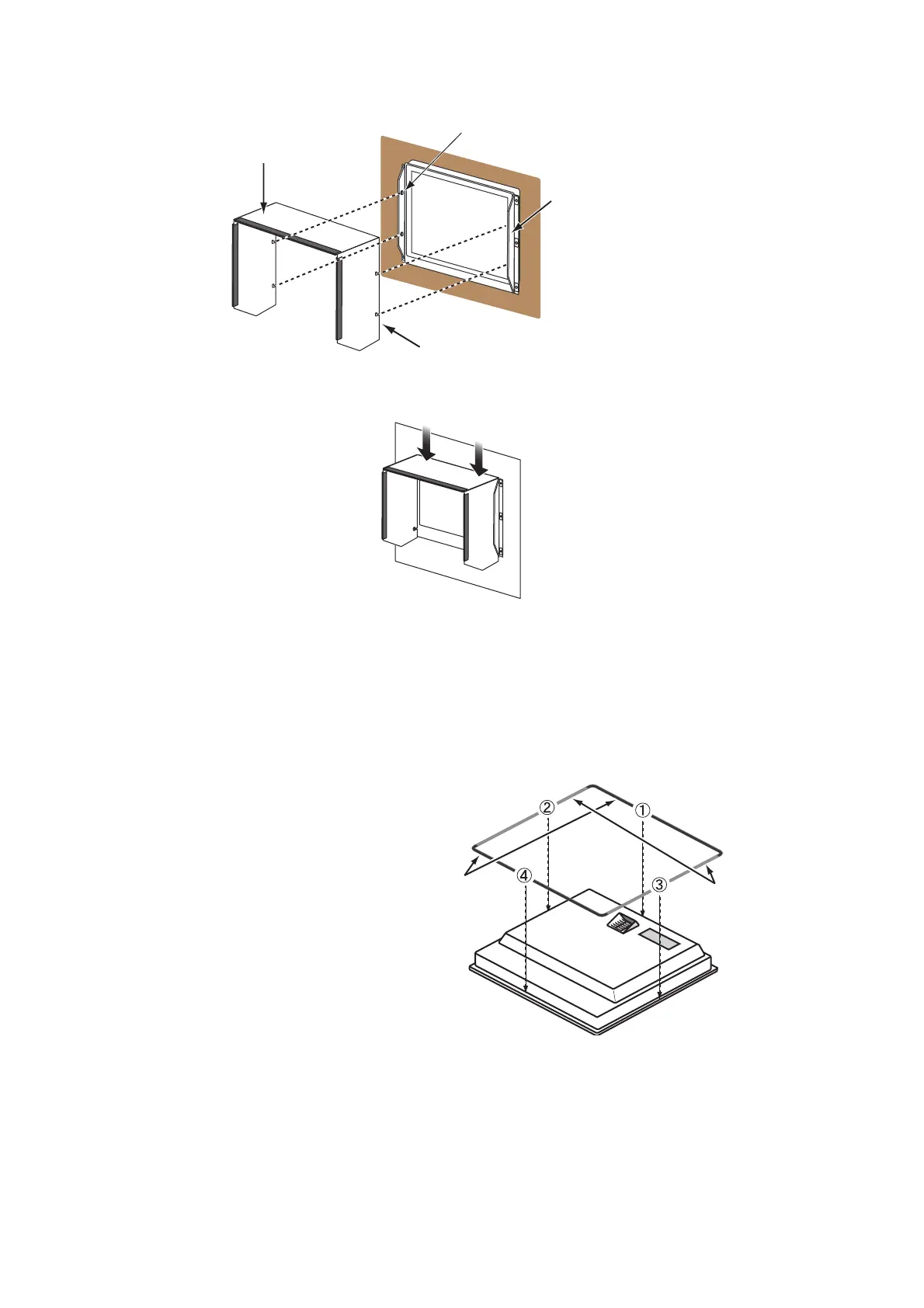

7. Set the cutouts of the hood (19) assembly to the knobs on the hood fixing plates (19).
8. Press the top of the hood (19) assembly to set the knobs in the cutouts.
9. Set the hood (19) assembly with the knobs tightly (4 pcs.).
1.4 Flush Mount, Fixed at Rear
The flush mount, fixed at rear method requires the flush mount kit OP26-12 (option, see page vii).
1. Use the flush mounting template (supplied) to make a cutout in the mounting location.
2. Attach the flush mounting sponges
H 19 and V 19 to the back of the
monitor unit in the order shown in
the figure at right.
Hood (19) Assembly
Knob (4 pcs.)
Hood Fixing Plate 19
Cutout (4 places)
Flush Mounting
Sponge H 19 for
top and bottom
Flush Mounting
Sponge V 19 for
left and right
To Next Page
