APPENDIX B OUTLINE & INSTALLATION DRAWINGS
GIA 63/GIA 63W Installati
on Manual
Page B-7 (Page B-8 blank)
190-00303-05
Revision S
STANDALONE INSTALLATION
GIA 63
011-00781-( )
OR
GIA 63W
011-01105-( )
STANDALONE RACK
115-01239-00
GIA 63X BACK PLATE KIT
011-00963-00
GIA 63X CONNECTOR KIT
011-01000-01

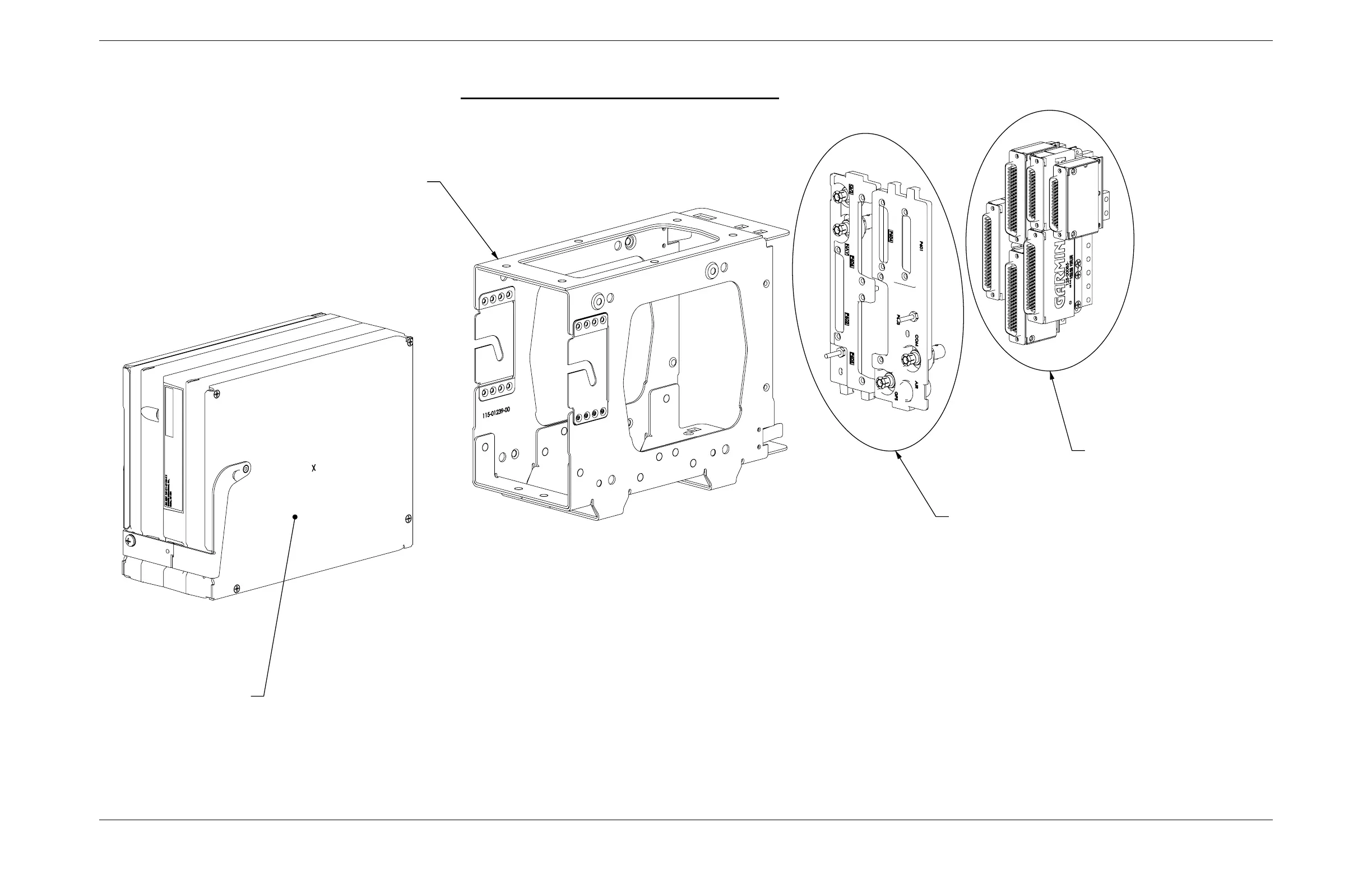

Figure B-4. GIA 63(W) Standalone Installation Drawing
100
102
Table of Contents
Table of Contents
6
General Description
10
Introduction
10
Equipment Description
10
Interface Summary
11
Technical Specifications
12
License Requirements
19
Certification
19
Referenced Documents
39
Limited Warranty
40
Installation Overview
42
Introduction
42
Installation Considerations
46
Rack Considerations
50
Cabling and Wiring
51
Cooling Air
51
GIA 63 Minimum Installation Requirements
52
GIA 63W Minimum Installation Requirements
53
Mounting Requirements
54
GIA 63(W) Standalone Rack
55
GIA 63(W) Standalone Rack, Suggested Mounting Locations
56
Installation Procedure
58
Unpacking Unit
58
Wiring Harness Installation
58
Antenna Installation
59
Cable Installation
59
Backshell Assembly
60
Unit Installation
60
Post Installation Configuration & Checkout
61
Continued Airworthiness
61
GIA STATUS Page
62
System Interconnects
64
Pin Function List
64
Power and Antennas
76
GIA System ID Program
77
Serial Data
77
Discrete I/O
80
Com/Vor/Ils/Digital Audio
81
VOR/ILS Indicator
83
Rmi/Obi
86
DME Tuning and ADF
87
Auto Pilot
89
GIA 63/GIA 63W Installation Manual
89
Appendix A Gia 63 Main Boot Block Uploading Instructions
94
Introduction
94
Determining Current Boot Block
94
Loading Boot Block Version 4.01
95
Loading GIA Main Software (Only if GIA Main Software was Cancelled in Section
96
GIA 63(W) Modular Installation Outline Drawing
98
GIA 63(W) Modular Installation Drawing
99
GIA 63(W) Standalone Installation Outline Drawing
100
GIA 63(W) Standalone Installation Drawing
101
Appendix C Interconnect Examples
102
GIA 63(W) Example Interconnect (Sheet 1
102
GIA 63(W) Example Interconnect (Sheet 2
103
GIA 63(W) Example Interconnect (Sheet 3
104
GIA 63(W) Example Interconnect (Sheet 4
105
GIA 63(W) Example Interconnect (Sheet 5
106
GIA 63(W) Example Interconnect (Sheet 6
107
GIA 63(W) Example Interconnect (Sheet 7
108
