APPENDIX B OUTLINE & INSTALLATION DRAWINGS
GIA 63/GIA 63W Installation Manual Page B-3 (Page B-4 blank)
190-00303-05 Revision S
GIA 63
011-00781-( )
OR
GIA 63W
011-01105-( )
3-POSITION NUTPLATE KIT
011-00915-01 (PREFERRED WITH GARMIN SYSTEM RACK)
OR
011-01148-01 (NOT SHOWN)
QTY 2
GIA 63X BACK PLATE KIT
011-00963-00
GIA 63X CONNECTOR KIT
011-01000-01
GIA 63X RACK
115-00426-00
NOTE:
MINIMUM OF FOUR SCREWS REQUIRED PER NUTPLATE
(TWO PER POSITION)
MODULAR INSTALLATION

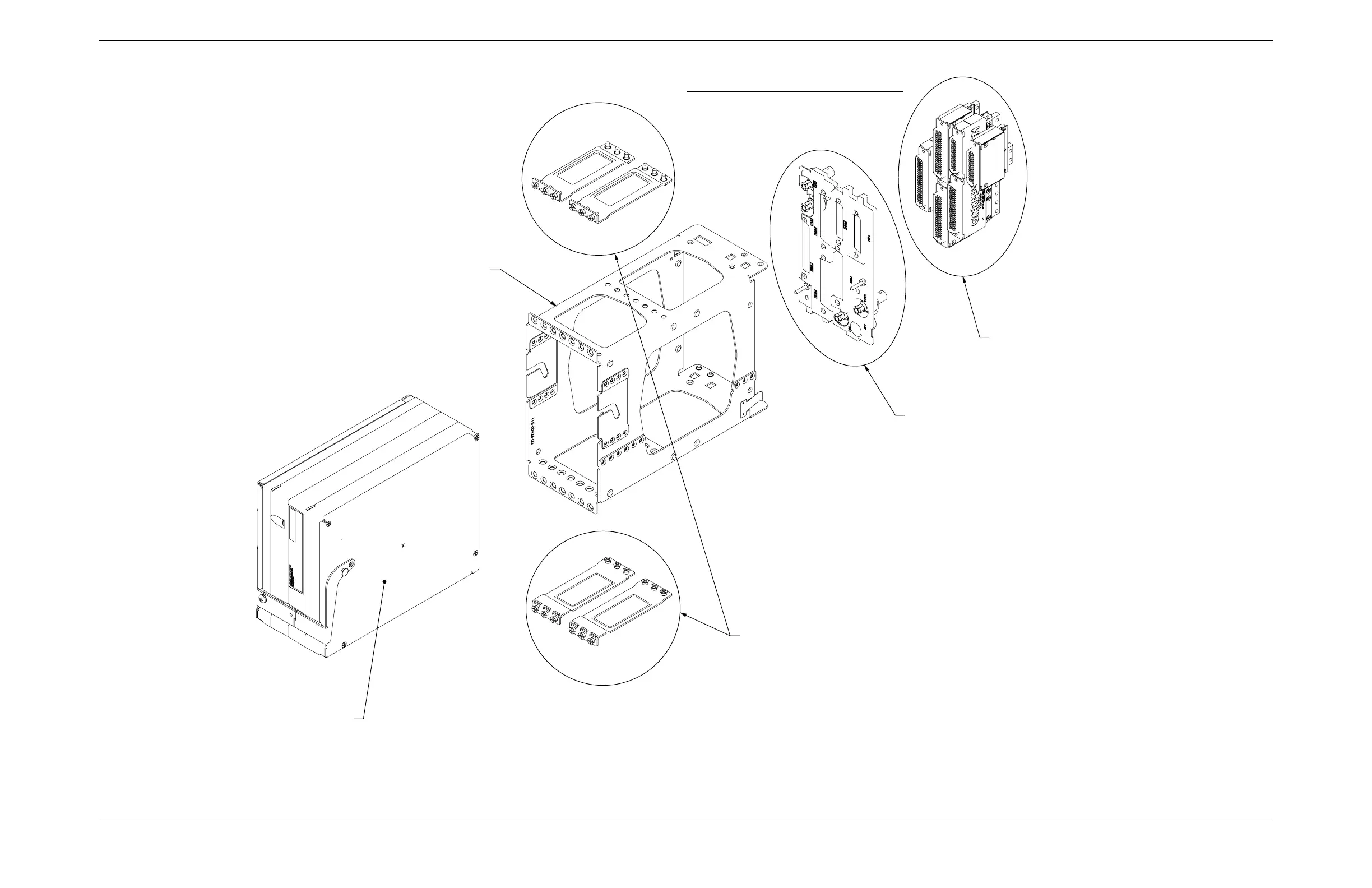

Figure B-2. GIA 63(W) Modular Installation Drawing
