GTS 8XX/GPA 65 Installation Manual Page 3-3
190-00587-00 Revision 4TP
NOTES
1. Non-Garmin part numbers shown are not maintained by Garmin and consequently are subject
to change without notice.
2. Extracting a contact used for #18 AWG requires that the wire barrel be cut off from the
contact. It may also be necessary to push the pin out from the face of the connector when using
and extractor due to the absence of the wire. A new contact must be used when reassembling
the connector.
3. Contacts for #16 AWG and Contact Crimp Tooling: Contact Garmin for information regarding
contacts and contact crimp tooling. Note 2 also applies.
4. Alternate Contacts for Use With #18 AWG: As an alternative to the Positronic contacts listed,
and provided in the installation kit, if the need arises the installer may use contacts made by
ITT Cannon under P/N 031-1007-001. The particular contact is not compatible with the
Daniels MFG K774, Positronics 9502-11 or Amphenol 9502-11 positioners, though. Only use
postioner part numbers Daniels MFG K250, ITT Cannon 980-0005-722 and Astro 616245.
3.3 QMA Connector Insertion and Removal
To engage the QMA connectors, use the outer sleeve of the QMA plug to align the connectors and insert
the plug onto the jack until it snaps into place. There will be an audible “snap” when the connectors are
fully engaged, refer to Figure 3-1. No tools are required for the insertion of a QMA plug onto a QMA
jack.

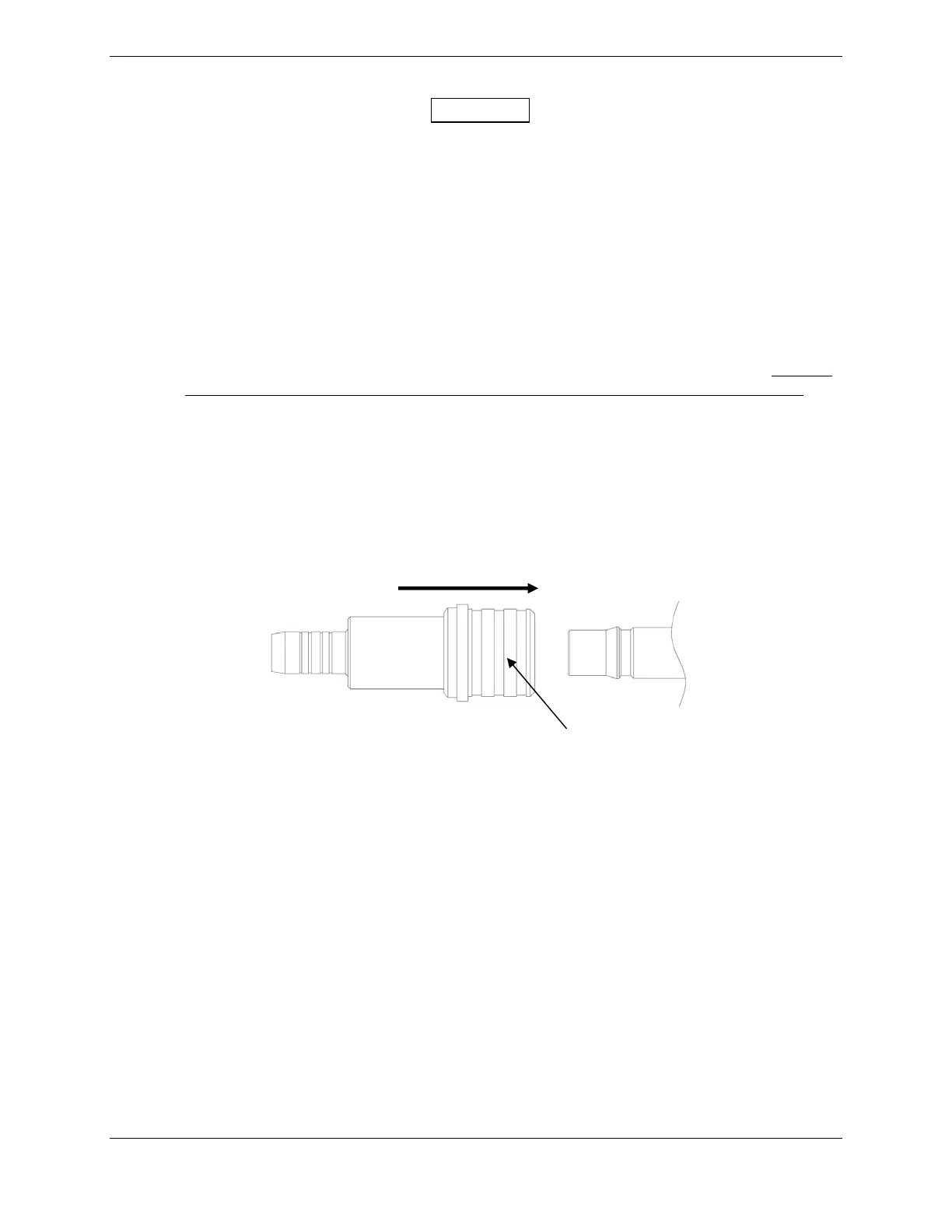

Figure 3-1. Engaging QMA Connectors
Engage
Outer Sleeve
