Page 4-6 GTS 8XX/GPA 65 Installation Manual
Revision 4TP 190-00587-00
4.2 GPA 65 Pin Function List
4.2.1 P651

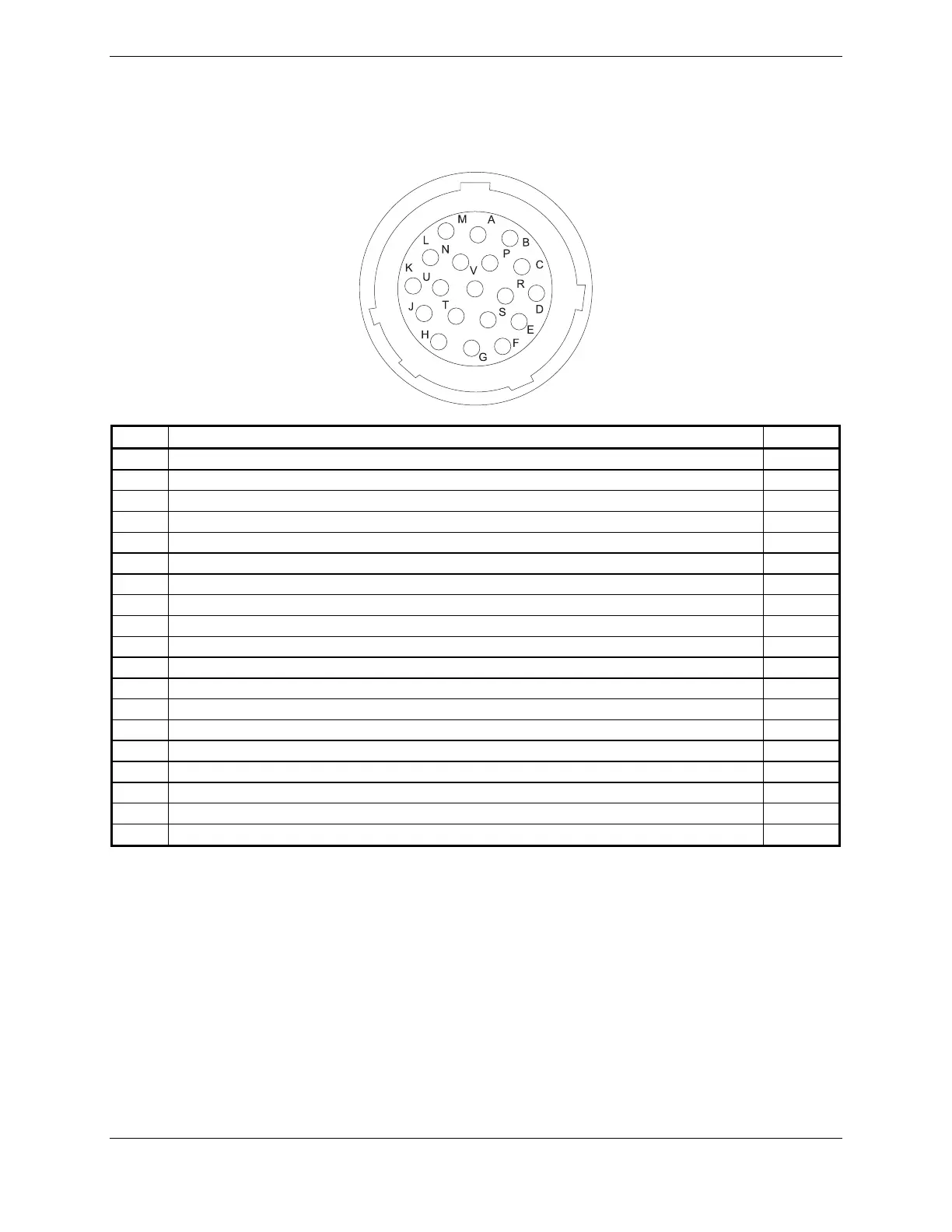

View of J651 connector from back of unit
Pin Pin Name I/O
A POWER GROUND --
B +35 VDC POWER IN In
C POWER GROUND --
D RESERVED --
E -5 VDC POWER IN In
F PA/LNA DATA RS-422 OUT B Out
G PA/LNA DATA RS-422 OUT A Out
H PA/LNA DATA RS-422 IN B In
J PA/LNA DATA RS-422 IN A In
K POWER GROUND --
L +6 VDC POWER IN In
M +35 VDC POWER IN In
N RESERVED --
P +6 VDC POWER IN In
R RESERVED --
S -5 VDC POWER IN In
T RESERVED --
U RESERVED --
V RESERVED --
