6.3 Spare parts list
Component Type Arc chute Part No. Ver.
ALL (after 11/2003) N/A 128 122 R02
Pre-arcing Contact
ALL (before 11/2003) N/A 128 121
ALL 1x_ 128 521 R01
ALL 2x_ 128 521 R02
Arc Runner Back Side
ALL EF4-12 128 810
2607 / 4207 / 6007 1x_ 128 525 R01
8007 1x_ 128 525 R02
2607 / 4207 / 6007 2x_ 128 525 R03
8007 2x_ 128 525 R04
Arc Runner Front Side
ALL EF4-12 128 815
2607 / 4207 / 6007 N/A 128 110 R01
8007 N/A 128 110 R04
2607 / 4207 / 6007 (BBRail) N/A 128 110 R02
Upper Main Contact
8007 (BBRail only) N/A 128 110 R03
2607 N/A 128 108 R01
4207 N/A 128 108 R02
6007 N/A 128 108 R03
Movable Main Contact
8007 N/A 128 108 R04
ALL 1x_ / EF4-12 128 515/516 R01
Set of Protection Walls
ALL 2x_ 129 515/516 R02
2607 / 4207 / 6007 1x_ 128 500 R01
8007 1x_ 128 500 R02
2607 / 4207 / 6007 2x_ 128 500 R03
8007 2x_ 128 500 R04
Adapter
ALL EF4-12 128 500 R05
1X2 (1000V) 1x_ 128 550 R01
1X3 (1500V) 1x_ 128 550 R02
1X4 (2000V) 1x_ 128 550 R03
2X2 (2000V) 2x_ 128 550 R11
2X3 (3000V) 2x_ 128 550 R12
2X4 (3600V) 2x_ 128 550 R13
2X2S (2000V) 2x_ 128 550 R15
Arc Chute
EF4-12 (3900V) EF4-12 124 900 R17
SU control PCB ALL N/A 128 700
ST control PCB ALL N/A 128 710 R01
UVR contro PCB ALL N/A 128 710 R02
Interface Plug External supply 24VDC±5% N/A 128 730 R01
PCMD 150 24 S24W-GE N/A 128 730 R02
PCMD 150 48 S24W-GE N/A 128 730 R03
PCMD 150 110 S24W-GE N/A 128 730 R04
Voltage Converter
PCMA 150 70 S24W-GE N/A 128 730 R05
Standard NEKO PCB ALL N/A 128 750 R01
External NEKO 3C PCB ALL (BBRail only) N/A 128 755 R01
External NEKO 4C PCB ALL (BBRail only) N/A 128 755 R02
2607 / 4207 for 35°C ambient N/A 128 785 R01
SEL Control Board
2608 / 4207 for 55°C ambient N/A 128 785 R02
Auxiliary Switches ALL N/A 174 349
Shunt Trip 24VDC±5% ALL N/A 128 300 R01
Shunt Trip 24VDC±20% ALL N/A 128 300 R02
Shunt Trip 220VDC ALL N/A 128 300 R03
Shunt Trip 125VDC ALL N/A 128 300 R04
Shunt Trip 110VDC ALL N/A 128 300 R05
Zero-Voltage Trip 24VDC ALL N/A 128 320 R01
Solenoid Closing Drive ALL N/A 128 070 1)
Connector X2 ALL N/A DFK-PC 4/12-GF-7.62
Connector X3, X4, X5 ALL N/A DFK-MSTB 2.5/15-GF
Forced tripping release ALL N/A 128 640
1) check nameplate to define type

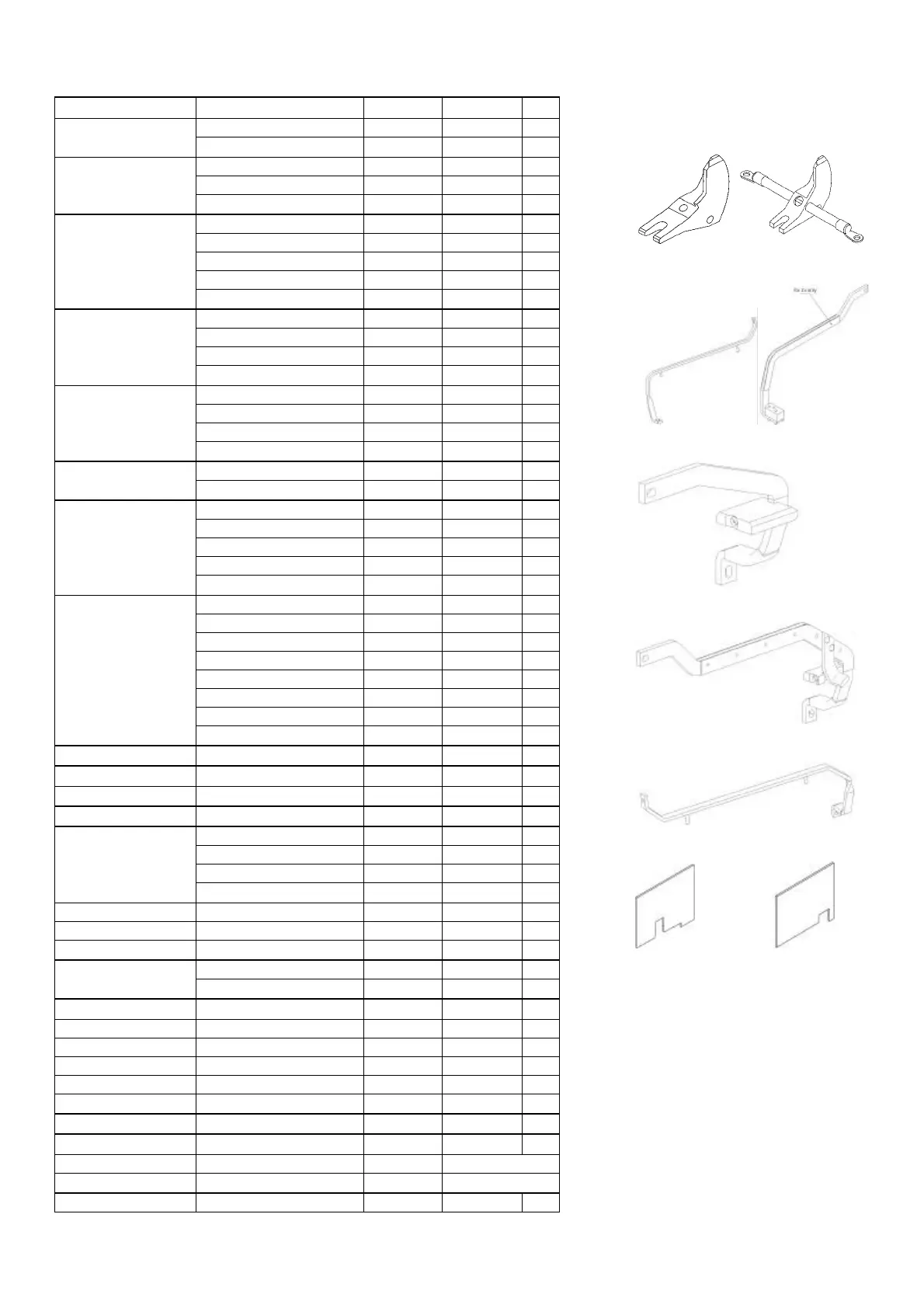

Help for identification of some
parts:
128 122 R02 128 121
128 810 128 521 R01, R02
128 525 R01, R02
128 525 R03, R04
128 815
128 515 R01, R02 128 516 R01, R02
