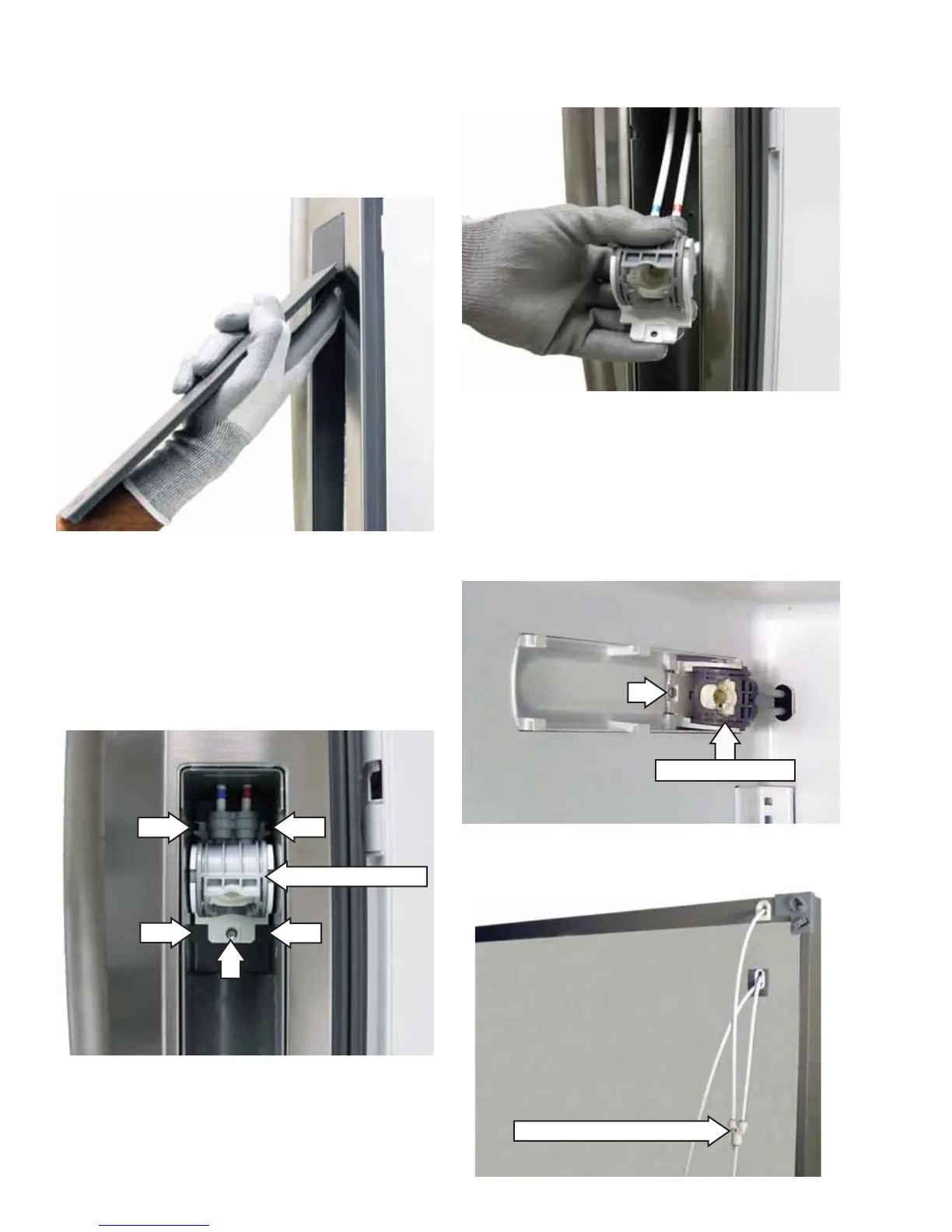

11. Pull the ﬁ lter manifold and attached tubing from

the door.

To remove the water ﬁ lter manifold on Model GE/

Adora:

The procedure to remove the water ﬁ lter manifold

for model GE/Adora is similar to the PFE29 model.

The ﬁ lter cover pulls forward to unsnap from the

side wall. After removing the Phillips-head screw, the

manifold can be pulled out forward at the front.

The Y-shaped John Guest coupler takes the ﬁ ltered

water and feeds the dispenser and icemakers.

Y-shaped John Guest Coupler

Water Filter Manifold

Caution: In the next step, to prevent damage, place

a small piece of tape at either tab location (right-

side tab location shown).

7. Open the ﬁ lter door and place index ﬁ nger under

the cover hinge, then pull the ﬁ lter door off the

refrigerator door.

8. Disconnect the water inlet tube from the ﬂ ow-

meter. (See

Water Valve and Flowmeter.)

9. Remove the Phillips-head screw from the ﬁ lter

manifold.

10. Slide the ﬁ lter manifold up to release it from the

upper and lower tabs.

Water Filter Manifold

Tab

Note: In the following steps, for ease of insertion

of the water lines thru conduits in the door, two

WR01X11068 tubing plugs are needed. Plugs are

included with replacement manifolds and left-side

door assemblies.
