– 29 –

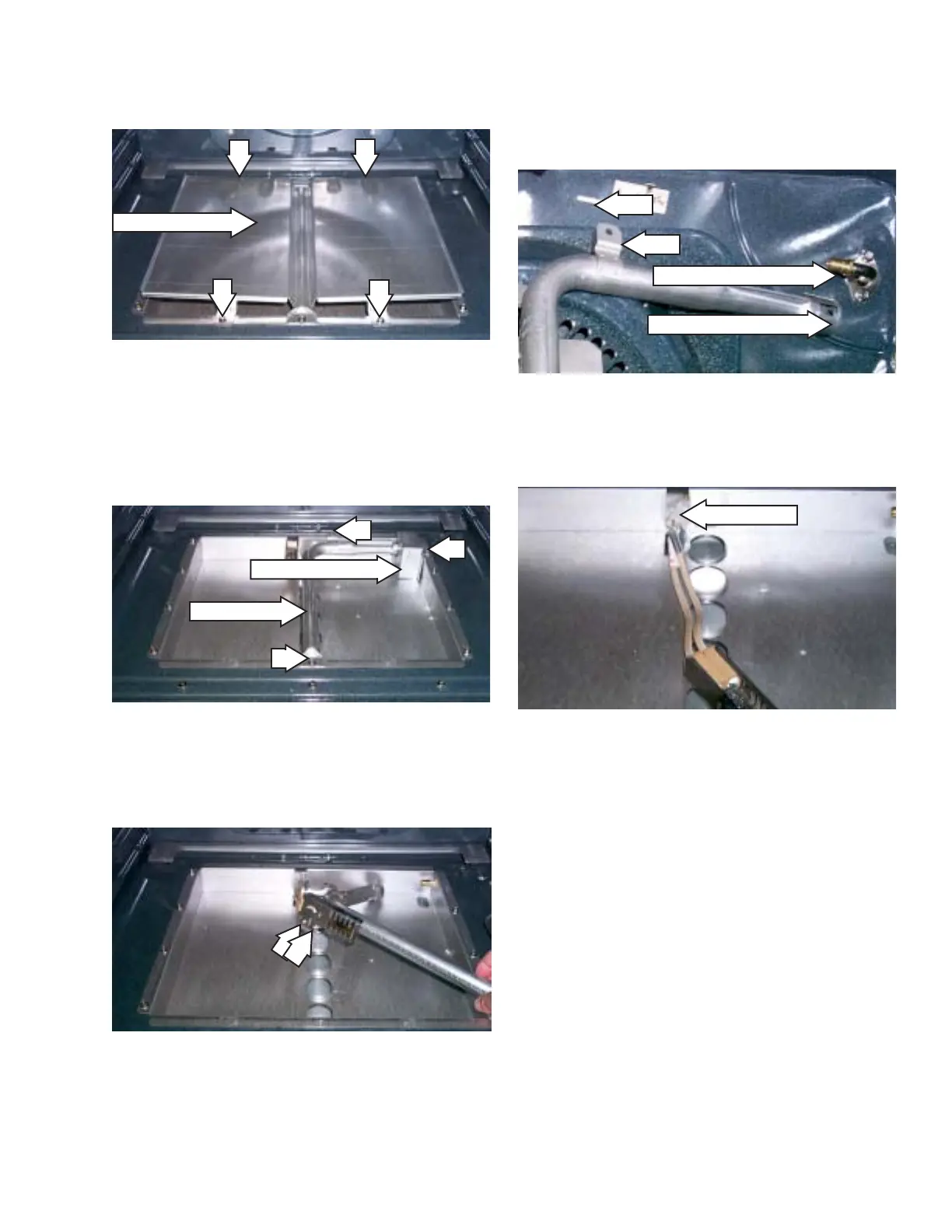

7. Remove the bake burner.
Note: When reinstalling the broil burner, make
sure the burner inlet opening is over the gas
outlet.
Disconnect
4. Remove the 2 screws that hold the burner in
place.
5. Remove the screw that holds the orifice fitting
cover in place. Remove the fitting cover.
6. Remove the 2 hex-head screws that hold the
glow-bar igniter to the bake burner.
3. Remove the 4 screws that hold the burner
baffle in place.
6. Remove the glow-bar igniter from the oven.
IMPORTANT: When reinstalling the glow-bar, the
connector end must be positioned OUTSIDE the
range insulation. Do not allow the connector next
to or inside the insulation. Allow the stiff over
sleeve to position the connector away from the
insulation.
Insulation should be allowed to close in around the
igniter lead wires thus protecting the connector
from any heat loss at the insulation opening.
8. Gently pull the glow-bar connector through the
oven wall. Disconnect the glow-bar igniter
wires.
Tab
Burner Gas Outlet
Slot
Burner Inlet Opening
Bake Burner
Orifice Fitting
Cover
Burner Baffle
To Next Page
