Chapter 6. Programming Meter Settings
128 Transport® Model PT878 Portable Liquid Flowmeter User’s Manual
6.11 Setting up User Tables (cont.)
3. The next step is to create a Table ID.
a. Press [ENTER] to open the window. The screen now appears similar
to Figure 86 below.

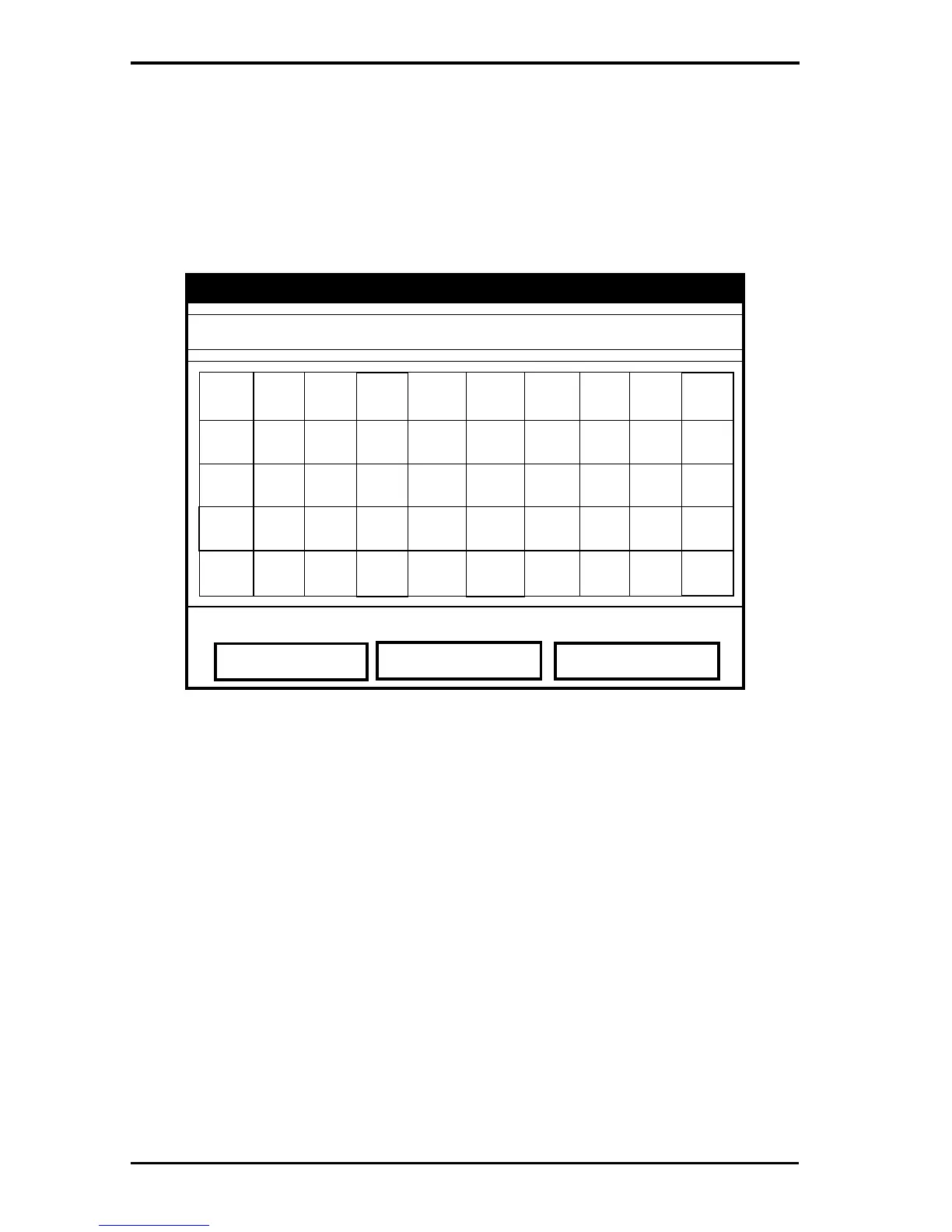

Figure 86: Text Creation Window
b. Use the four arrow keys to scroll to the desired letter or symbol, and
press
[ENTER] to add the letter to the label.
Note: Pressing [SEL] causes the screen to alternate between a set of
upper-case (capital) letters and a set of symbols. Use both screens to
create the desired label.
c. Repeat this procedure for each letter or symbol you wish to add to
the label. If you wish to delete a letter, press
[F1] (Delete) to erase
each letter or symbol, from right to left on the label.
d. When you have completed the label, press [F3] (OK) to confirm the
label, or
[F2] (Cancel) to leave the window without adding the label.
Note: It is not necessary to enter the “#Data Points” or “Max Points” text
boxes.
Delete
Cancel OK
UserTable1
A B C D E F G H I J
K L M N O P Q R S T
U V W X Y Z 0 1 2 3
4 5 6 7 8 9 . , “ ‘
= < >
To Next Page
