Gigabyte GA-X58A-UD3R User Manual

- 17 - Hardware Installation

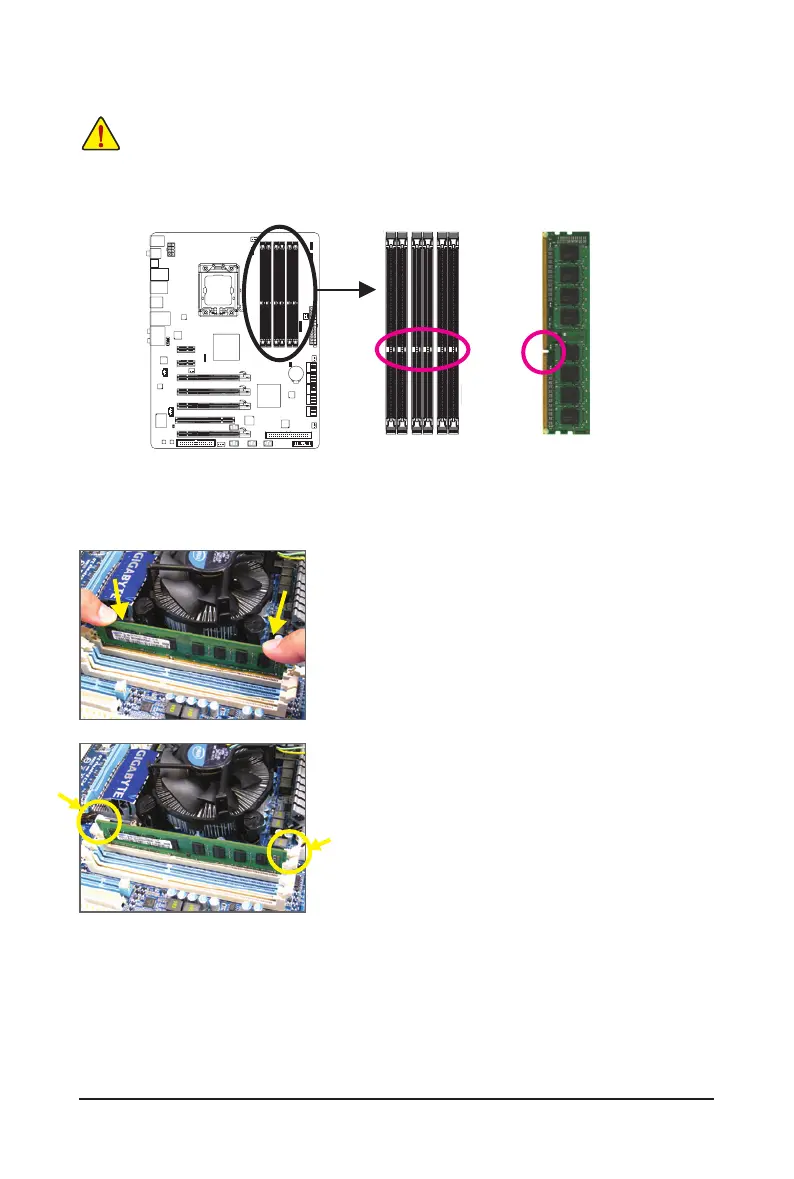

1-4-2 Installing a Memory
Notch
DDR3 DIMM
ADDR3memorymodulehasanotch,soitcanonlytinonedirection.Followthestepsbelowtocorrectly
install your memory modules in the memory sockets.
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory module
onthesocket.Asindicatedinthepictureontheleft,placeyourn-
gers on the top edge of the memory, push down on the memory and
insert it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when the
memory module is securely inserted.
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module.
DDR3 and DDR2 DIMMs are not compatible to each other or DDR DIMMs. Be sure to install
DDR3 DIMMs on this motherboard.

Gigabyte GA-X58A-UD3R Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Number of memory slots	6
Maximum internal memory	24 GB
Processor socket	Socket B (LGA 1366)
Processor manufacturer	Intel
USB 2.0 connectors	2
Number of SATA connectors	10
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
Audio chip	Realtek ALC889
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
Bundled software	Norton Internet Security
Networking features	10/100/1000 Mbit/s
ACPI version	1.0

Weight and Dimensions

Depth	244 mm
Width	305 mm
