Gigabyte GA-X58A-UD3R User Manual

- 8 -

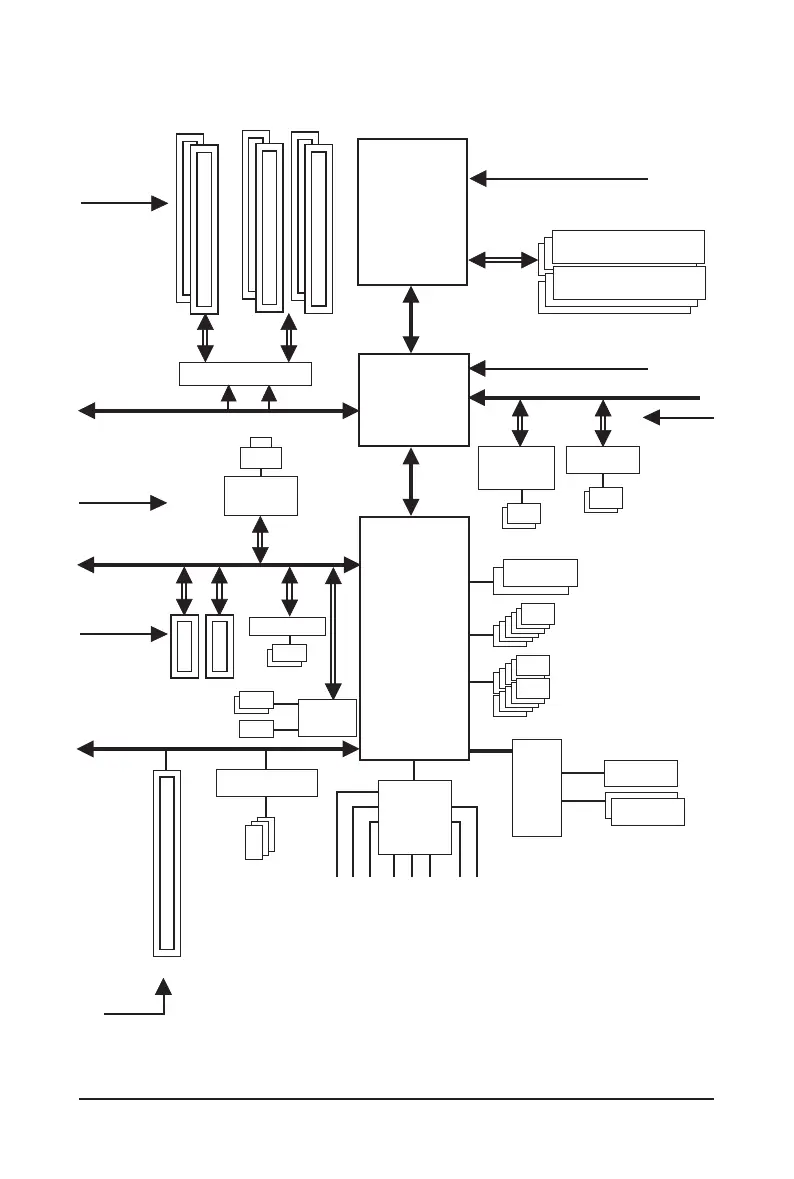

GA-X58A-UD3R Motherboard Block Diagram
(Note) Two share the same ports with eSATA.
PS/2 KB/Mouse
LGA1366
CPU
QPI
Interface
Intel
®
X58
IOH CLK (133 MHz)
Intel
®
ICH10R
1 PCI
PCI Bus
PCI CLK
(33 MHz)
PCIe CLK
(100 MHz)
PCIe CLK
(100 MHz)
PCIe CLK
(100 MHz)
PCI Express Bus
Floppy
CPU CLK+/- (133 MHz)
6 SATA 3Gb/s
Dual BIOS
12 USB 2.0/1.1
(Note)
LPC
Bus
3 IEEE 1394a
DDR3 2200/1333/1066/800 MHz
x1
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF In
S/PDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
Switch
x8
ATA-133/100/66/33 IDE Channel
2 SATA 3Gb/s
or
x1
JMicron JMB362
PCI Express Bus
PCI Express Bus
Dual/3 Channel Memory
PCIe CLK
(100 MHz)
x16
x1 x1
2 USB 3.0/2.0
Marvell 9128
2 SATA 6Gb/s
NEC
D720200F1
2 PCI Express x1
x1x1
x1
GIGABYTE
SATA2
2 PCI Express x16 4 PCI Express x8
LAN
RJ45
Realtek
RTL8111E
T.I. TSB43AB23
iTE
IT8720
2 SATA 3Gb/s

Gigabyte GA-X58A-UD3R Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Number of memory slots	6
Maximum internal memory	24 GB
Processor socket	Socket B (LGA 1366)
Processor manufacturer	Intel
USB 2.0 connectors	2
Number of SATA connectors	10
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
Audio chip	Realtek ALC889
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
Bundled software	Norton Internet Security
Networking features	10/100/1000 Mbit/s
ACPI version	1.0

Weight and Dimensions

Depth	244 mm
Width	305 mm
