- 93 - Appendix
The BIOS Setup menus described in this section may differ from the exact settings for your moth-
erboard. The actual BIOS Setup menu options you will see shall depend on the motherboard you
have and the BIOS version.
Figure 1
Step 2:
Save changes and exit BIOS Setup.
5-1-2 Conguring JMicron JMB362/GIGABYTE SATA2 SATA Controller
A. Installing SATA hard drive(s) in your computer
Attach one end of the SATA signal cable to the rear of the SATA hard drive and the other end to available
SATA port on the motherboard. See the table below for the SATA controllers and their corresponding SATA
ports. Then connect the power connector from your power supply to the hard drive.
B. Conguring SATA controller mode in BIOS Setup
MakesuretoconguretheSATAcontrollermodecorrectlyinsystemBIOSSetup.
Step 1:
Turn on your computer and press <Delete> to enter BIOS Setup during the POST. In BIOS Setup, go to Inte-
grated Peripherals.ToenableRAID,seethetablebelowforconguringdifferentSATAControllersforRAID.
Controller Connectors BIOS Settings
JMicron eSATA ports Set eSATA Controller to Enabled
JMB362 Set eSATA Ctrl Mode
to
RAID
GIGABYTE GSATA2_8/9 Set GSATA 8_9/IDE Controller
to
Enabled
SATA2 Set GSATA 8_9/IDE Ctrl Mode
to
RAID/IDE

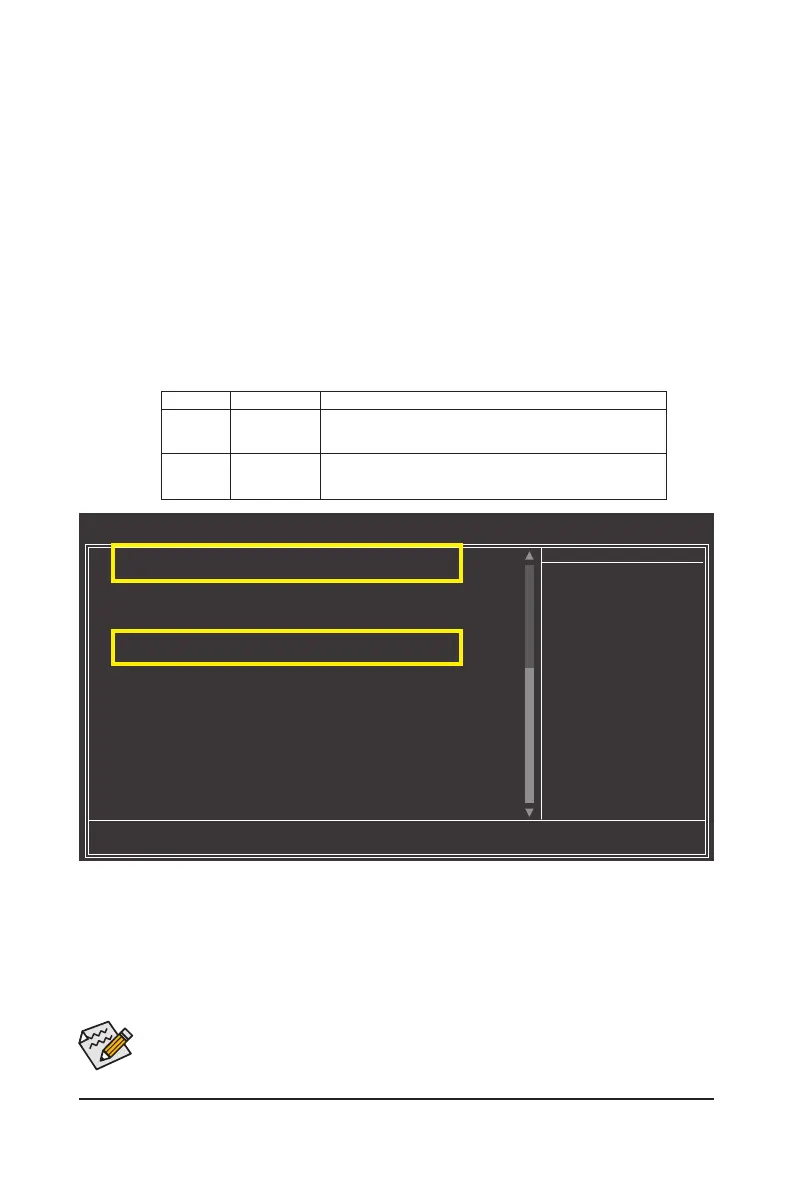

CMOS Setup Utility-Copyright (C) 1984-2010 Award Software
Integrated Peripherals
eSATA Controller [Enabled]
eSATA Ctrl Mode [IDE]
GSATA 6_7/IDE Controller [Enabled]
GSATA 6_7/IDE Ctrl Mode [IDE]
SATA3 Firmware Selection [Onchip]
GSATARAIDConguration [PressEnter]
GSATA 8_9/IDE Controller [Enabled]
GSATA 8_9/IDE Ctrl Mode [IDE]
higf
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Item Help
Menu Level
To Next Page
