Hardware Installation - 22 -
1-8 Onboard LEDs and Switches

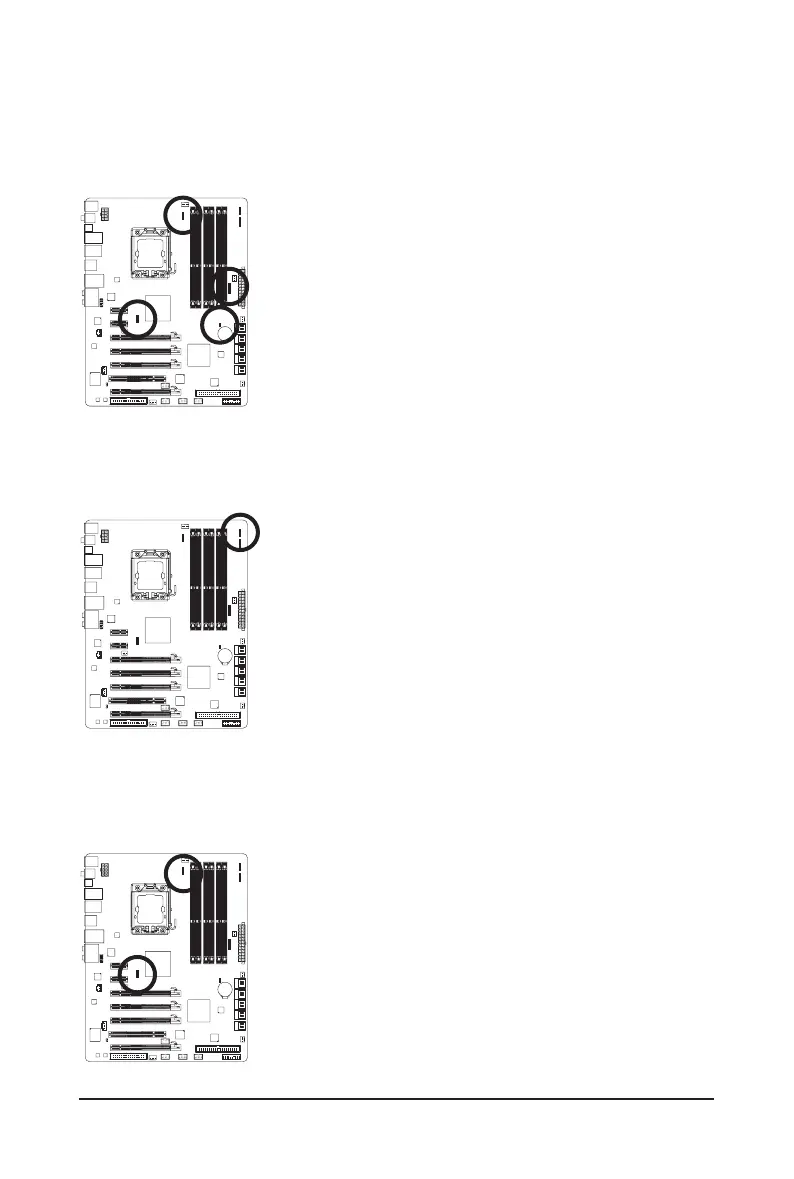

Overvoltage LEDs
This motherboard contains 4 sets of overvoltage LEDs which indicate the overvoltage level of the CPU,
memory, North Bridge, and South Bridge.
CPU Voltage
Off: Normal condition
L1: Level 1 (Slight, green)
L2: Level 2 (Moderate, yellow)
L3: Level 3 (High, red)
NB Voltage
Off: Normal condition
L1: Level 1 (Slight, green)
L2: Level 2 (Moderate, yellow)
L3: Level 3 (High, red)
DDR Voltage
Off: Normal condition
L1: Level 1 (Slight, green)
L2: Level 2 (Moderate, yellow)
L3: Level 3 (High, red)
SB Voltage
Off: Normal condition
L1: Level 1 (Slight, green)
L2: Level 2 (Moderate, yellow)
L3: Level 3 (High, red)
Overclock LEDs
The onboard CPU overclock LEDs indicate on which level the CPU is overclocked. The higher the overclock
level, the more the number of lighted LEDs.
FREQ. LED
Off: Normal condition
F_LED1~F_LED5: Blue
Temperature Indicator LEDs
The two sets of temperature indicator LEDs indicate the temperature level of the CPU and North Bridge. The
LEDs are off when the temperature is below 60
o
C; the green LED lights up when the temperature is between
61~80
o
C; the red LED is illuminated when the temperature exceeds 80
o
C.
CPU TEMP
Off: Below 60
o
C
L1: 61~ 80
o
C (green)
L2: Over 80
o
C (red)
NB TEMP
Off: Below 60
o
C
L1: 61~ 80
o
C (green)
L2: Over 80
o
C (red)
