Gigabyte GA-X58A-UD3R User Manual

- 27 - Hardware Installation

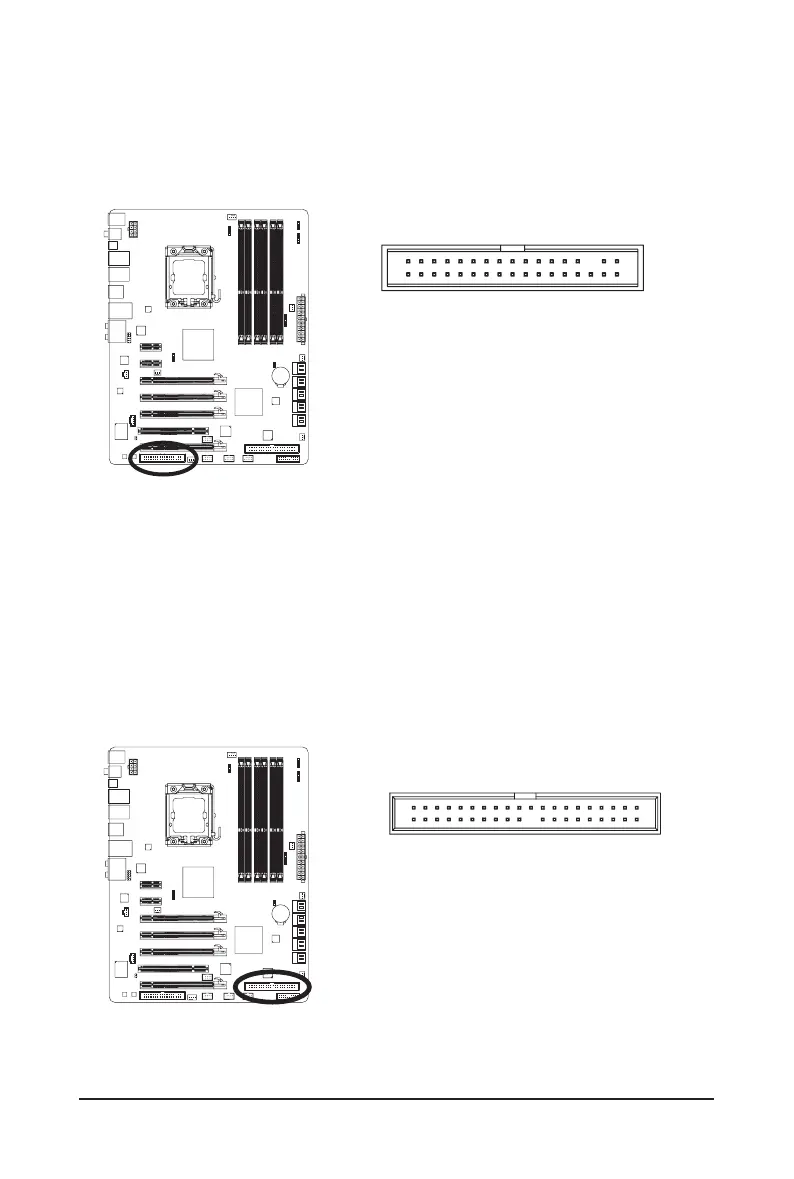

8) IDE (IDE Connector)
The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before attach-
ing the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE devices,
remember to set the jumpers and the cabling according to the role of the IDE devices (for example,
masterorslave).(Forinformationaboutconguringmaster/slavesettingsfortheIDEdevices,readthe
instructions from the device manufacturers.)
240
139
7) FDD (Floppy Disk Drive Connector)
 Thisconnector is used to connect a oppy disk drive.Thetypesofoppy disk drives supported are:
360KB,720KB,1.2MB,1.44MB,and2.88MB.Beforeconnectingaoppydiskdrive,besuretolocate
pin1oftheconnectorandtheoppydiskdrivecable.Thepin1ofthecableistypicallydesignatedbya
stripeofdifferentcolor.Forpurchasingtheoptionaloppydiskdrivecable,pleasecontactthelocaldealer.
1
2
33
34

Gigabyte GA-X58A-UD3R Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Number of memory slots	6
Maximum internal memory	24 GB
Processor socket	Socket B (LGA 1366)
Processor manufacturer	Intel
USB 2.0 connectors	2
Number of SATA connectors	10
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
Audio chip	Realtek ALC889
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
Bundled software	Norton Internet Security
Networking features	10/100/1000 Mbit/s
ACPI version	1.0

Weight and Dimensions

Depth	244 mm
Width	305 mm
