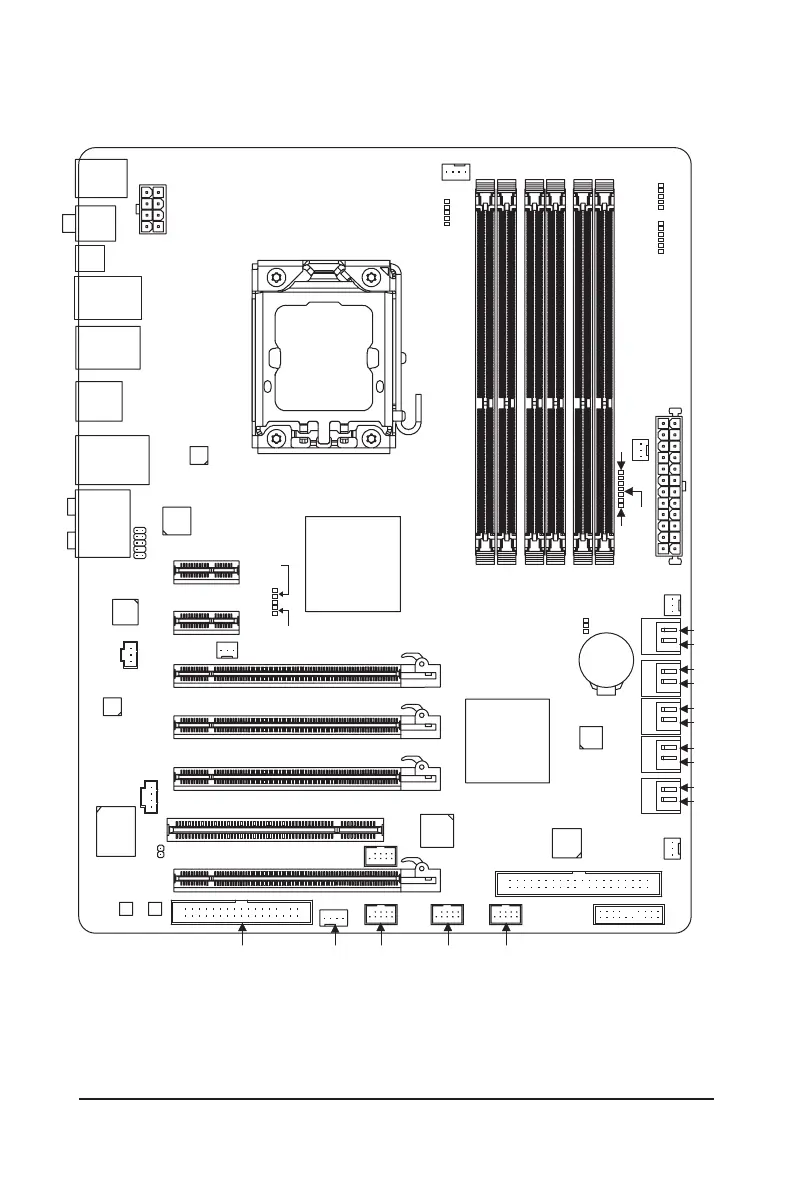

GA-X58A-UD3R Motherboard Layout
(Note) Due to a hardware limitation, the PCIEX1_1 slot can only accommodate a shorter PCI Express x1
expansion card. For a longer expansion card, use other expansion slots.
KB_MS
CPU_FAN
LGA1366
ATX
GA-X58A-UD3R
CD_IN
F_AUDIO
AUDIO
B_BIOS
PCIEX16_2
PCIEX1_1
(Note)
IDE
SPDIF_I
DDR3_1 DDR3_3 DDR3_2 DDR3_5
BAT
F_PANEL
ATX_12V_2X
Intel
®
X58
Intel
®
ICH10R
FDD
SATA2_1
SATA2_3
SATA2_5
GSATA3_7
SATA2_0
SATA2_2
SATA2_4
GSATA3_6
PCI
R_USB
CODEC
PWR_FAN
NB_FAN
SYS_FAN1
M_BIOS
R_SPDIF
USB_1394_ESATA_2
USB30_LAN
PCIEX16_1
PCIEX1_2
SPDIF_O
F_USB1F_USB3 F_USB2SYS_FAN2
F_1394
PHASE LED
SYS_FAN3
CPU TEMP L1/2
CPU Voltage L1/2/3
FREQ. LED
DDR Voltage LED
DDR PHASE LED
NB PHASE LED
GSATA2_9
GSATA2_8
DDR3_4 DDR3_6
NEC
D720200F1
SB Voltage L1/2/3
PCIEX8_1
CMOS_SW
USB_1394_ESATA_1
NB TEMP L1/2
NB Voltage L1/2/3
Marvell 9128
GIGABYTE
SATA2
JMicron JMB362
PCIEX8_2
Realtek
RTL8111E
iTE IT8720
T.I. TSB43AB23

Gigabyte GA-X58A-UD3R Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Number of memory slots	6
Maximum internal memory	24 GB
Processor socket	Socket B (LGA 1366)
Processor manufacturer	Intel
USB 2.0 connectors	2
Number of SATA connectors	10
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
Audio chip	Realtek ALC889
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
Bundled software	Norton Internet Security
Networking features	10/100/1000 Mbit/s
ACPI version	1.0

Weight and Dimensions

Depth	244 mm
Width	305 mm
