Gigabyte GA-X79-UD5 User Manual

Unique Features - 70 -
4-3 EasyTune 6
  
settings or do overclock/overvoltage in Windows environment. The user-friendly EasyTune 6 interface also
includes tabbed pages for CPU and memory information, letting users read their system-related information
without the need to install additional software.

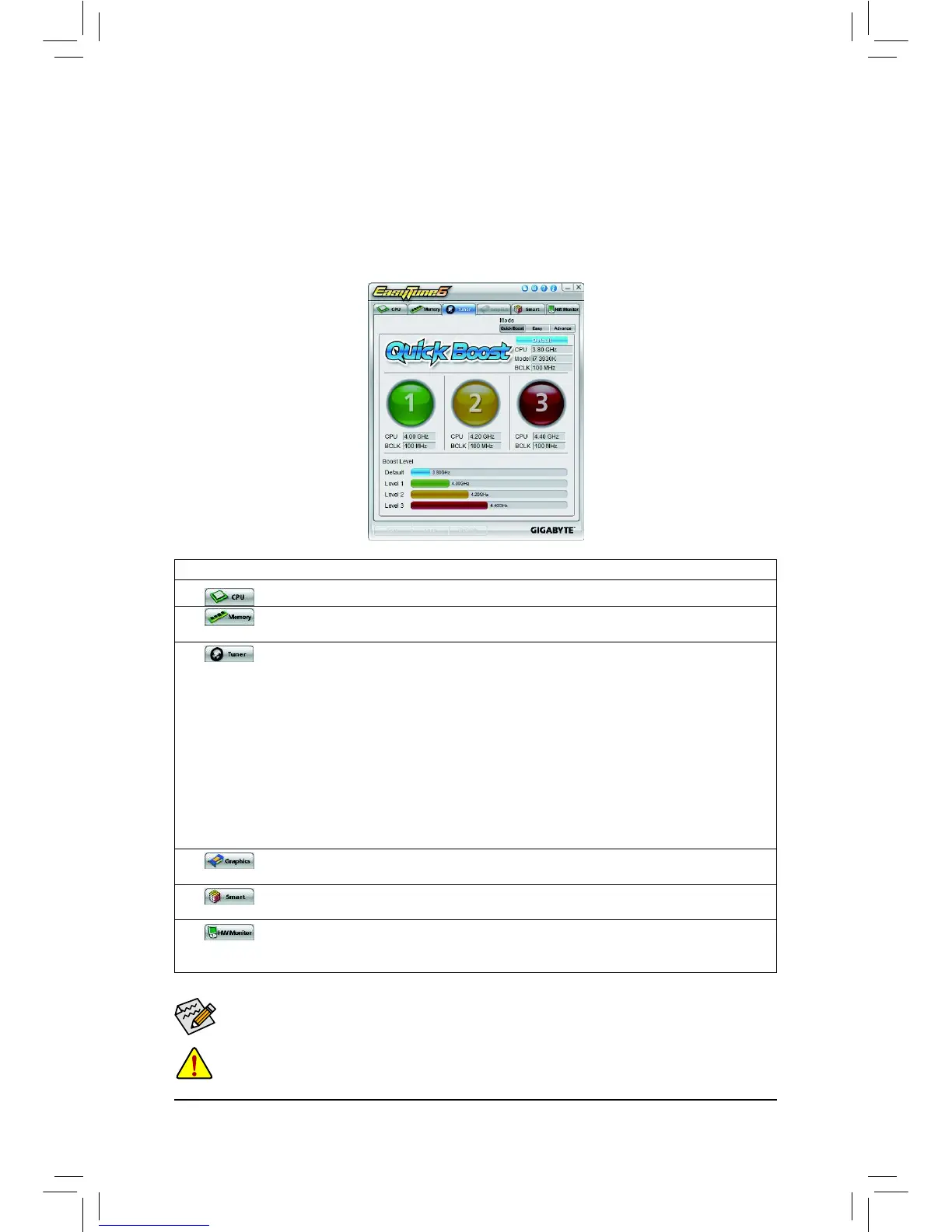

The EasyTune 6 Interface
Available functions in EasyTune 6 may differ by motherboard model. Grayed-out area(s) indicates that the item is not

Incorrectly doing overclock/overvoltage may result in damage to the hardware components such as CPU, chipset, and
memory and reduce the useful life of these components. Before you do the overclock/overvoltage, make sure that you
fully know each function of EasyTune 6, or system instability or other unexpected results may occur.
Tabs Information
Tab Function
The CPU tab provides information on the installed CPU and motherboard.
The Memory tab provides information on the installed memory module(s). You can select memory

The Tuner tab allows you to change memory settings and voltages.
Quick Boost mode • provides you with 3 levels of CPU frequency/base clock to choose to
achieve desired system performance.
After making changes in Quick Boost mode or clicking Default to restore to default values, be
sure to restart your system for these changes to take effect.
Easy mode • provides information on CPU/memory.
Advanced mode • allows you to individually change system clock settings and voltages settings
using the sliders.
Save • 
Load • 
After making changes in Easy mode/Advanced mode, be sure to click Set for these changes to take
effect or click Default to restore to default values.
The Graphics tab allows you to change the core clock and memory clock for your ATI or NVIDIA
graphics card.
The Smart tab allows you to specify a Smart Fan mode. Smart Fan Advanced mode allows the fan
speed to be changed linearly based on the temperature thresholds you set.
The HW Monitor tab allows you to monitor hardware temperature, voltage and fan speed and set
temperature/fan speed alarm. You can choose the alert sound from the buzzer or use your own sound


Gigabyte GA-X79-UD5 Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Quad-channel
Number of memory slots	8
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1200, 1300, 1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2133 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ i7
USB 2.0 connectors	3
Number of SATA II connectors	4
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit
Headphone outputs	5
eSATA ports quantity	2
USB 2.0 ports quantity	7
Audio chip	Realtek ALC898
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Compatible operating systems	Windows 7/Vista/XP
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	2-Way SLI, 3-Way SLI, Hybrid CrossFireX
PCI Express slots version	3.0
Wi-Fi standards	Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Networking features	10/100/1000 Mbit/sec
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Depth	264 mm
Width	305 mm
