Super Free Match
Service Manual
MAINTENANCE
152
6.2 Indoor unit
6.2.1 Wall mounted type

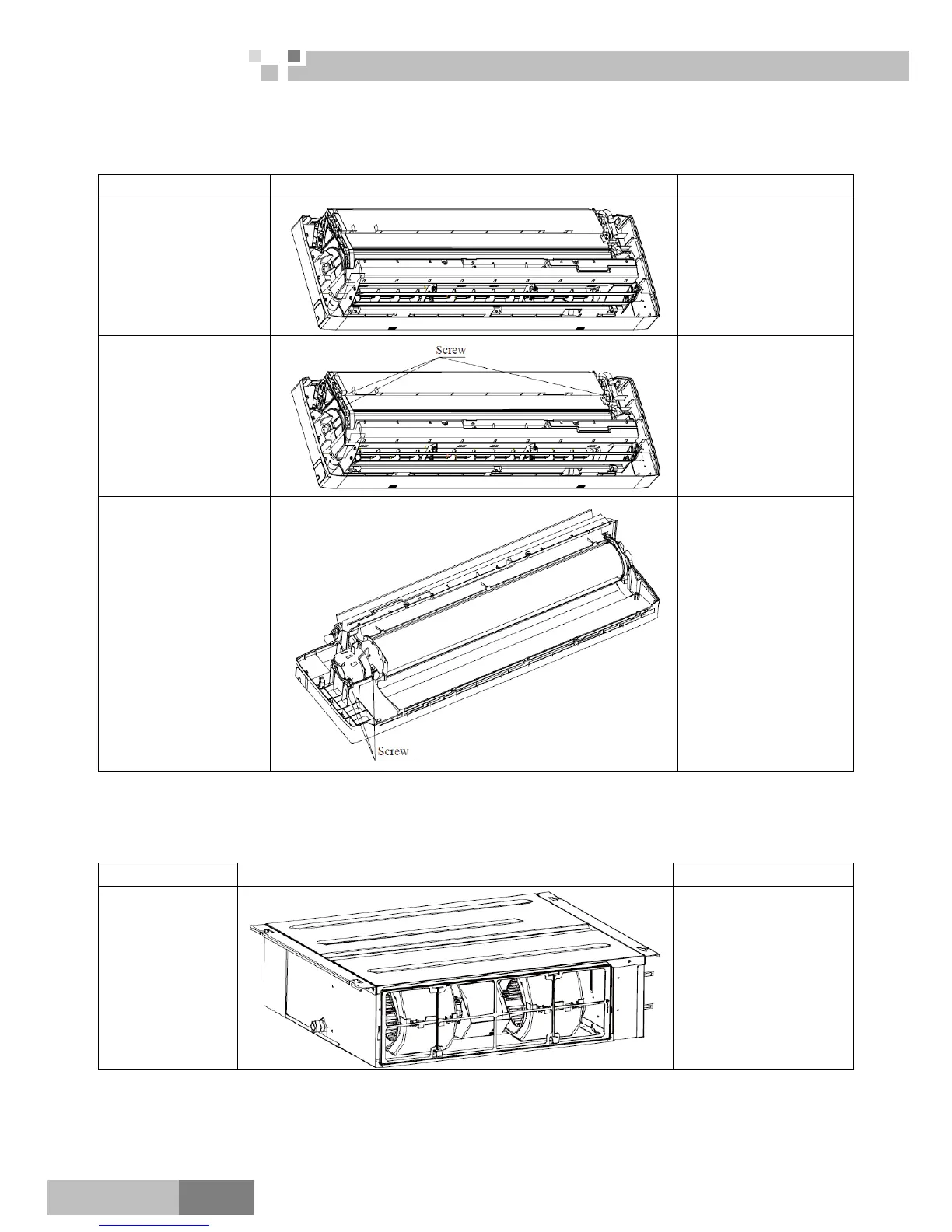

◆ Removal and Assembly of Fan Motor
Remark: Prior to the assembly of the motor, make sure the power supply is cut off.
Steps Illustrations Operation Instructions
1.Remove the front
panel, front case and
electric box
a) Loosen the screws；
b) Unplug the motor
terminals in the
electric box. Loosen
the earth screws and
lift up
2.Remove the evaporator
Unscrew the fixed screws
of the evaporator, and
then remove it
3.Remove the motor and
cross flow fan
a) Unscrew the fixed
screws of the motor
press plate and cross
flow fan
b) Separate the motor
from the cross flow
fan.
6.2.2 Ducted type
◆ Removal and Assembly of Fan Motor
Remark: Prior to the assembly of the motor, make sure the power supply is cut off.
Steps Illustrations Operation Instructions
1.Pull out the
electric wire of the
motor
Open the cover plate of the
electric box and then pull
out the electric wire inside
the box.
To Next Page
